User manual for SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874
- Manufacturer: SonicWALL
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Access Points
- Safety instructions
- Startup and operation of the wireless access points
- Tips for setting up your SonicWALL
- Settings and expert assistance
- Contact SonicWALL service
- Troubleshooting
- Warranty information
- Price: 300 USD

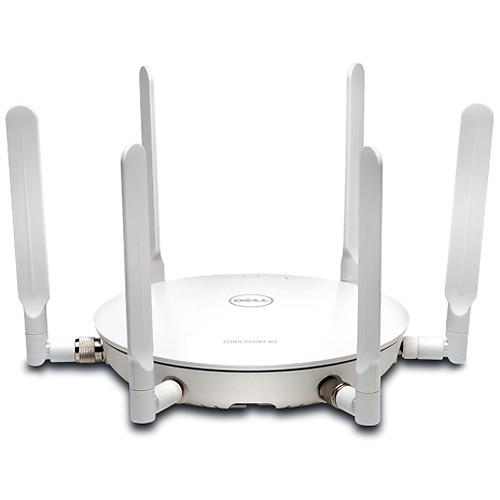

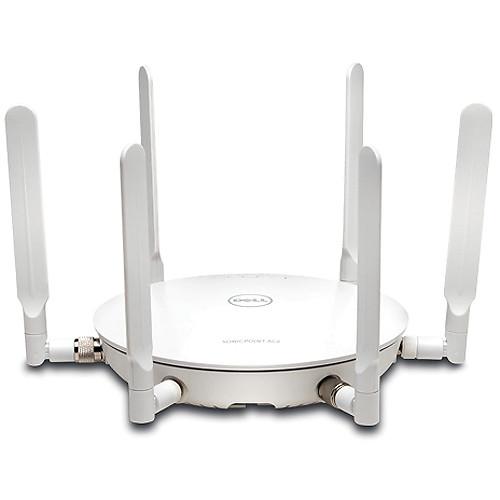

Click to enlarge image
|
We recommend checking out our discussion threads on the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874,
which address similar problems with connecting and setting up Wireless Access Points SonicWALL.
|
User manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874
The user manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.
With the SonicPoint N2 Wireless Access Point from Dell you can greatly expand the reach of your wireless network while keeping the number of access points needed to a minimum. Dual band connectivity allows you to connect to either the 2.4 GHz or 5 GHz frequencies while operating using the 802.11n networking standard. This SonicPoint Access Point also supports FairNet Wireless Bandwidth Allocation effectively guaranteeing a minimum amount of bandwidth to each user to ensure that all users have access to crucial Internet based applications, email, and more.
You can rest assured your network will remain secure after installing the SonicPoint Access point as it comes equipped with a variety of security features. Deep packet inspection technology scans all inbound and outbound traffic to help eliminate threats, intrusions, and other attacks that may harm your network. You can also take complete control of all aspects of your network, both wired and wireless, using Granular Security Policy Enforcement which gives you complete control over firewall rules. If you would like to restrict access to specific areas of your network to certain users you can implement wireless guest services protocols to ensure those users have internet-only access.
This SonicPoint Access point from Dell provides the complete solution to your wireless networking needs. You can easily install this device within a drop ceiling or on the wall while the included PoE injector makes it is easy to bring power to the unit eliminating the need to run addition power sources.
|
If you own a SonicWALL wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874:
PoE Power Requirements | 802.3at | Power Supply | 802.3at PoE | Power Consumption | 13.7 W (maximum) | Status Indicators | 6 x LED (WLAN/Link) (LAN/Link) Power, Test | Antennas | 3+3 (SMA 2.4 GHz + TNC 5 GHz) | Ethernet Ports | 2 x 10/100/1000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE) 1 x RJ-45 console 1 x USB 2.0 | Mounting | Wall or ceiling mount kit | Virtual Access Points | Up to 8 per SonicPoint | Maximum Clients Supported | 256 (128 per radio) | Chassis | UL2043 plenum rated | Compliance | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11i, IEEE 802.3e, IEEE 802.3i, IEEE 802.3at, WPA/WPA2, TKIP, AES | Regulatory | FCC/ICES Class B, CE, RCM/ACMA, VCCI Class B, TELEC, BSMI, NCC, MSIP, ANATEL, Customs Union, RoHS (Europe/China), WEEE | Certifications Pending | Wi-Fi, Dynamic Frequency Selection (DFS) | Safety | UL, cUL, TUV/GS, CB, CE, BSMI, Mexico CoC, Customs Union | Temperature | 32 to 104°F / 0 to 40°C | Humidity | 10 - 95% (non-condensing) | Supported Radios | Dual: 3x3 11n + 3x3 11n | Frequency Bands | 802.11a: 5.180-5.825 GHz 802.11b/g: 2.412-2.472 GHz 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz | Operating Channels | 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64 | Transmit Output Power | Based on the regulatory domain specified by the system administrator | Transmit Power Control | Supported | Data Rates Supported | 802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel | Modulation Technology Spectrum | 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) | Data Encryption | WPA2; IPSec, 802.11i, WPA; 64/128/152-bit WEP, TKIP, AES, SSL VPN (When used with Dell SonicWALL Secure Remote Access Series appliance) | Authentication | RADIUS, Active Directory, Novell e-Directory, SAMBA, single sign-on (SSO) | Dimensions | 6.9 x 1.5" / 175 x 38 mm | Weight | 1.2 lb / 0.53 kg | Hardware | Number of Ports 2: 2 x Data In; 1 x data and power out Connectors Shielded RJ-45, EIA 568A and 568B Indicators System indicator: AC power (green); User indicator: channel power active (green) Data Rate 10/100/1000 Mbps | Power Over LAN Output | Pin Assignment and Polarity 4/5 (+), 7/8 (-) Output Power Voltage -48 VDC User Port Power 30 W minimum | Input Power Requirements | AC Input Voltage 100 to 240 VAC AC Frequency 50 to 60 Hz AC Input Current 0.8 A at 100 to 240 VAC | Standards and Compliance | Regulatory Compliance CE, RoHS, WEEE Electromagnetic Emission and Immunity EN 55022 Class B (Emissions), FCC Part 15, Class B EN 55024 (Immunity), VCCI Safety UL/cUL 60950-1, GS Mark per IEC 60950-1 | Operating Temperature | 32 to 104 °F / 0 to 40 °C | Operating Humidity | 90% maximum (non-condensing) | Storage Temperature | -4 to 158 °F / -20 to 70 °C | Storage Humidity | 95% maximum (non-condensing) | Operating Altitude | -1,000 to 10,000 ft. / -304.8 to 3,048 m | Dimensions | 1.22 x 1.97 x 6.30" / 31 x 50 x 160 mm | Weight | 0.5 lb / 0.3 kg | Package Weight | 4.0 lb | Box Dimensions (LxWxH) | 10.0 x 9.3 x 6.4" | |
The user manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874 can be downloaded in .pdf
format if it did not come with your new wireless access points, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other SonicWALL users keep a unique electronic library
for SonicWALL wireless access pointss,
where you can use our link to download the user manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874.
The user manual lists all of the functions of the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874,
all the basic and advanced features and tells you how to use the wireless access points.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from SonicWALL service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0874. User manuals are also
available on the SonicWALL website under Computers & Solutions - Networking - Wireless Access Points.
