User manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0876
The user manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0876 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

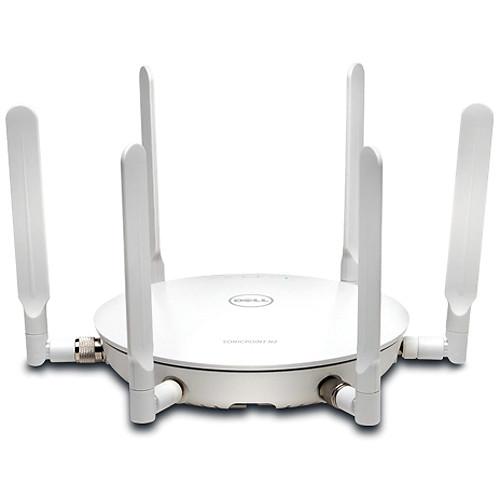

With the SonicPoint N2 Wireless Access Point from Dell you can greatly expand the reach of your wireless network while keeping the number of access points needed to a minimum. Dual band connectivity allows you to connect to either the 2.4 GHz or 5 GHz frequencies while operating using the 802.11n networking standard. This SonicPoint Access Point also supports FairNet Wireless Bandwidth Allocation effectively guaranteeing a minimum amount of bandwidth to each user to ensure that all users have access to crucial Internet based applications, email, and more.
You can rest assured your network will remain secure after installing the SonicPoint Access point as it comes equipped with a variety of security features. Deep packet inspection technology scans all inbound and outbound traffic to help eliminate threats, intrusions, and other attacks that may harm your network. You can also take complete control of all aspects of your network, both wired and wireless, using Granular Security Policy Enforcement which gives you complete control over firewall rules. If you would like to restrict access to specific areas of your network to certain users you can implement wireless guest services protocols to ensure those users have internet-only access.
This SonicPoint Access point from Dell provides the complete solution to your wireless networking needs. You can easily install this device within a drop ceiling or on the wall while the included PoE injector makes it is easy to bring power to the unit eliminating the need to run addition power sources.
If you own a SonicWALL wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0876 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SonicWALL SonicPoint N2 Wireless Access Point 01-SSC-0876:
802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only) 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit Output Power
Based on the regulatory domain specified by the system administrator
Transmit Power Control
Supported
Data Rates Supported
802.11a: 6,9,12,18,24,36,48,54 Mbps per channel 802.11b: 1,2,5.5,11 Mbps per channel 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel
Modulation Technology Spectrum
802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM)
Number of Ports 2: 2 x Data In; 1 x data and power out Connectors Shielded RJ-45, EIA 568A and 568B Indicators System indicator: AC power (green); User indicator: channel power active (green) Data Rate 10/100/1000 Mbps
Power Over LAN Output
Pin Assignment and Polarity 4/5 (+), 7/8 (-) Output Power Voltage -48 VDC User Port Power 30 W minimum
Input Power Requirements
AC Input Voltage 100 to 240 VAC AC Frequency 50 to 60 Hz AC Input Current 0.8 A at 100 to 240 VAC
Standards and Compliance
Regulatory Compliance CE, RoHS, WEEE Electromagnetic Emission and Immunity EN 55022 Class B (Emissions), FCC Part 15, Class B EN 55024 (Immunity), VCCI Safety UL/cUL 60950-1, GS Mark per IEC 60950-1
