User manual SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977

Operating instructions and pdf manual for use - SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977 User manual, User manual SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977, SonicWALL, TZ, 215W, Wireless, N, Security, Firewall, 01


User manual for SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977

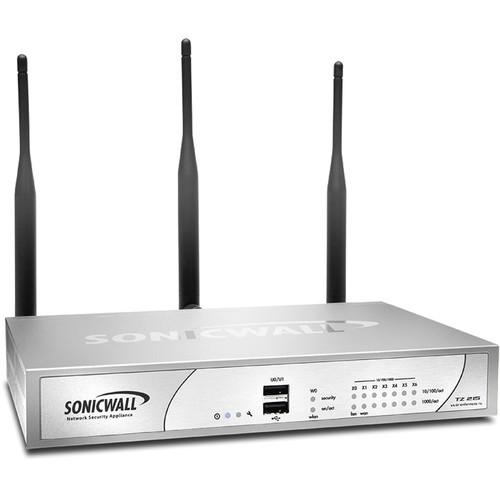

SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977
  • Manufacturer: SonicWALL
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Firewalls & Security Devices
  • Safety instructions
  • Startup and operation of the firewalls & security devices
  • Tips for setting up your SonicWALL
  • Settings and expert assistance
  • Contact SonicWALL service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977, which address similar problems with connecting and setting up Firewalls & Security Devices SonicWALL.



User manual for the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977

The user manual for the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Firewalls & Security Devices.

The Dell SonicWALL TZ 215W Wireless N Security Firewall Appliance is a Unified Threat Management firewall that protects your network in a retail, small business, distribution, or a branch office environment. It integrates anti-malware, intrusion prevention, application control, and URL filtering. Powered by a dual processor, it delivers deep packet inspection without slowing down network performance by eliminating bottlenecks that other firewalls may produce. In terms of security, you can utilize Reassembly-Free Deep Packet inspections to keep track of malware and viruses on both inbound and outbound connections.

The TZ 215 monitors applications to provide maximum bandwidth for critical tasks, while throttling down non-productive ones. Application traffic analytics provides you with insights about network traffic, bandwidth utilization, and security threats so you can identify non-business applications consuming network resources and adjust system policies accordingly to improve the network. With SSL and IPsec VPN, remote users can securely connect to your network with or without client-based access. In addition to VPN capabilities, the TZ 215 features a Gigabit WAN port for establishing a wired connection to your modem and six LAN Ethernet 10/100/1000 ports for networking with servers, Wireless-N access points, and anything else that's Ethernet-based. For wireless, it is outfitted with three external antennas that transmit at 802.11a/b/g/n speeds. Advanced networking features include multiple ISP failover and load balancing, dual-band secure wireless, network segmentation, and PCI compliance capabilities.
If you own a SonicWALL firewalls & security devices and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977:
Firewall SonicOS Version: 5.8.1 and later
Stateful Throughput: 500 Mbps
IPS Throughput: 110 Mbps
GAV Throughput: 70 Mbps
UTM Throughput: 60 Mbps
Maximum Connections: 48,000
Maximum UTM/DPI Connections: 48,000
New Connections/sec: 1,800
Nodes Supported: Unrestricted
Denial of Service Attack Protection: 22 classes of DoS, DDoS, and scanning attacks
SonicPoints Supported: 16
VPN 3DES/AES Throughput: 130 Mbps
Site-to-site VPN Tunnels: 20
Bundled GVC Licenses (Maximum): 2 (25)
Bundled SSL VPN Licenses (Maximum): 2 (25)
Encryption/Authentication/DH Group: DES, 3DES, AES (128, 142, 256-bit), MD5, SHA-1, SHA-2/DH Group 1, 2, 5, 14
Virtual Assist Bundled (Maximum): 2 (30-day trial)
Key Exchange: IKE, Manual Key, Certificates (X.509), L2TP over IPSec
Certificate Support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for Dell SonicWALL-to-Dell SonicWALL VPN, SCEP
VPN Features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported: Microsoft Windows XP, Vista 32/64-bit, Windows 7 32/64-bit
SSL VPN Platforms: Microsoft Windows XP/Vista (32/64-bit)/Windows 7, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Platform Supported: Apple iOS 4.2 or higher, Google Android 4.0, or higher
Security Deep Packet Inspection Services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Intelligence and Control
Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, ActiveX, Java Applet, and cookie blocking bandwidth management on filtering categories, allow/forbid lists
Enforced Client Anti-Virus and Anti-Spyware: McAfee
Comprehensive Anti-Spam Service: Supported
Application Intelligence and Control: Application Traffic Visualization and Advanced Application Control
Networking IP Address Assignment: Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT Modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
VLANS: 20, PortShield
DHCP: Internal server, relay
Routing: OSPF, RIP v1/v2, static routes, policy-based routing, multicast
Authentication: LDAP, Local DB, RADIUS, XAUTH, X-Forwarders
SSO: AD, eDirectory, RADIUS Accounting, NTLM, X-Forwarders, Terminal Server and Citrix
Local User Database: 150 users
VoIP: Full H.323v1-5, SIP, gatekeeper support, outbound bandwidth management, VoIP over WLAN, deep inspection security, full interoperability with most VoIP gateway and communications devices
System Zone Security: Yes
Schedules: Yes
Object-/Group-based Management: Yes
Dynamic DNS Providers Include: dyndns.org, yi.org, no-ip.com and changeip.com
Management and Monitoring: Local CLI, Web GUI (HTTP, HTTPS), SNMP v3; Global management with Dell SonicWALL GMS
Logging and Reporting: Analyzer, Scrutinizer, GMS, Local Log, Syslog, Solera Networks, NetFlow v5/v9, IPFIX with Extensions, Real-time Visualization
Hardware Fail Over: Active/Passive
Anti-spam: RBL support, Allowed/Blocked Lists, Optional Dell SonicWALL Comprehensive Anti-Spam Service
Load Balancing: Yes, Outgoing and Incoming
Standard: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
WAN acceleration support: Yes, with Dell SonicWALL WXA appliances
Wireless LAN Standards: 802.11a/b/g/n (3x3)
Wireless security standards: WEP, WPA, WPA2, 802.11i, TKIP, PSK, 02.1x, EAP-PEAP, EAP-TTLS
Virtual Access Points (VAPs): Up to 8
Antennas: Three external (detachable)
Radio power - 802.11b/802.11g/802.11n: 15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio power - 802.11a/802.11b/802.11g/802.11n: 15.5 dBm max/18 dBm max/17 dBM @ 6 Mbps, 13 dBM @ 54 Mbps
Radio power - 802.11n (2.4 GHz)/802.11n (5.0 GHz): 19 dBm MCS 0, 11 dBm MCS 15/17 dBm MCS 0, 12 dBm MCS 15
Radio receive sensitivity - 802.11a/802.11b/802.11g: -95 dBm MCS 0, -81 dBm MCS 15/-90 dBm @ 11 Mbps/-91 dBm @ 6 Mbps, -74 dBm @ 54 Mbps
Radio receive sensitivity - 802.11n (2.4 GHz)/802.11n (5.0 GHz): -89 dBm MCS 0, -70 dBm MCS 15 / -95 dBm MCS 0, -76 dBm MCS 15
Hardware Interfaces: 7 x 10/100/1000 copper gigabit, 2 x USB, 1 x console
Processor: Dual-core
Flash Memory/RAM: 32 MB/512 MB
3G Wireless/Modem: Supported with approved adapters
USB Ports: 2
Power Input: 100 to 240 VAC, 50-60 Hz, 1 A
Max Power Consumption: 9.0 W/12.0 W
Total Heat Dissipation: 30.6 BTU/41.4 BTU
Certifications: VPNC, ICSA Firewall 4.1 Common Criteria NDPP, IPv6 Phase 2
Certifications Pending: EAL4+, FIPS 140-2 Level 2
Major Regulatory Compliance: FCC Class A, CES Class A, CE, C-Tick, VCCI, Compliance MIC, NOM, UL, cUL, TUV/GS, CB, NOM, WEEE, RoHS
MTBF: 28 years/15 years
Temperature: 32 to 104°F / 0 to 40°C
humidity: 5 to 95% non-condensing
Dimensions 7.1 x 1.5 x 10.5" / 18.1 x 3.8 x 26.7 cm
Weight 2.0 lb / 0.9 kg
2.2 lb / 1.0 kg
The user manual for the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977 can be downloaded in .pdf format if it did not come with your new firewalls & security devices, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SonicWALL users keep a unique electronic library for SonicWALL firewalls & security devicess, where you can use our link to download the user manual for the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977.

The user manual lists all of the functions of the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977, all the basic and advanced features and tells you how to use the firewalls & security devices. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SonicWALL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SonicWALL TZ 215W Wireless N Security Firewall 01-SSC-4977. User manuals are also available on the SonicWALL website under Computers & Solutions - Networking - Firewalls & Security Devices.
