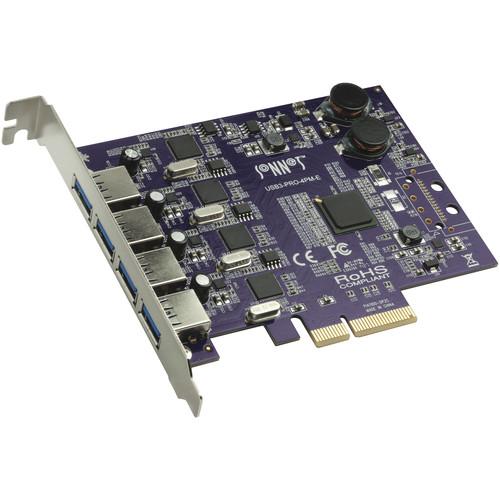

The Allegro 4-Port USB 3.0 PCI Express Card from Sonnet is a PCI Express card with four external SuperSpeed USB 3.0 ports, each with its own controller. Each port gets its own bandwidth, enabling transfer speeds of up to 1,800 MB/s (450 MB/s per port). This card features four PCIe 2.0 bus interfaces, allowing you to take advantage of your computer's fast expansion card slots. It installs easily into any 4 x PCI Express slot that supports a full-height card, and works with all USB-IF compliant USB 3.0 and USB 2.0, peripherals.
If you own a Sonnet usb controller cards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sonnet USB3-PRO-4PM-E Allegro Pro 4-Port USB 3.0 USB3-PRO-4PM-E in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sonnet USB3-PRO-4PM-E Allegro Pro 4-Port USB 3.0 USB3-PRO-4PM-E:
Specifications
Ports
4 x USB 3.0, external port
Bus Interface
4 x PCI Express 2.0
Data Transfer Rate
Up to 450 MB/s per port
Cables Supported
USB 3.0 with Standard-A male connector USB 2.0 with Standard-A male connector
Peripherals Supported
Industry standard USB 3.0, 2.0, and 1.1 peripherals Bus Powered: HDs, SSDs, DVDs, and Blu-ray devices up to 2A per port
Number of Devices Supported
Up to 31
System Requirements
Mac Compatibility: Mac Pro (with card slots) OS X 10.8.5+ OS X Yosemite PC Compatibility: PC desktop (with PCIe slots; PCIe 2.0 slots recommended) Windows 8 Windows 7 Windows Server 2012 Windows Server 2008 Thunderbolt Compatibility: Any Mac or PC with a Thunderbolt or Thunderbolt 2 port and a Thunderbolt 2-to-PCIe Card Expansion System
USB Charging
USB Battery Charging 1.2 Compliant (up to 7.5 W per port)
