User manual Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B

Operating instructions and pdf manual for use - Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B User manual, User manual Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B, Sony, 32GB, HDR-PJ540, Full, HD, Handycam, Camcorder, HDRP


User manual for Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 369 USD
We recommend checking out our discussion threads on the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B, which address similar problems with connecting and setting up Consumer Camcorders Sony.



User manual for the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B

The user manual for the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

The black 32GB HDR-PJ540 Full HD Handycam Camcorder with Built-in Projector from Sony captures Full HD 1920x1080 video at 24p and 60p, as well as 9.2MP still images. It features a 1/5.8" Exmor R CMOS sensor and a wide-angle Sony G zoom lens with 30x optical zoom plus 60x Clear Image digital zoom, and provides 32GB of internal flash memory for up to 8 hours of video.

The camcorder delivers smooth shots even on the move with its Balanced Optical SteadyShot image stabilization technology with Active Mode. For enhanced connectivity and control, built-in Wi-Fi with NFC support lets you use your smartphone or tablet to control the camera, as well as wirelessly transfer files to your mobile device for sharing, and back up data on your computer.

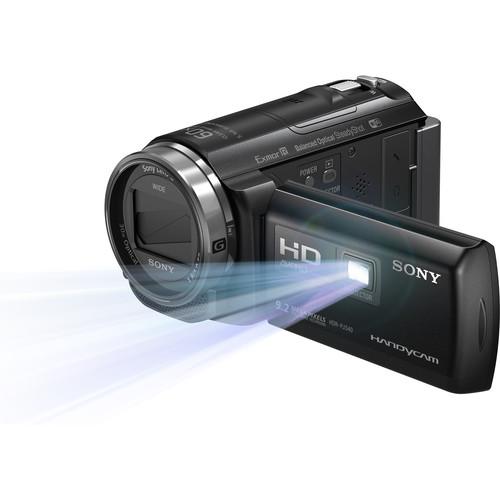

The HDR-PJ540 includes a built-in 25 lumen projector that allows you to project video at up to a 100" diagonal size without having to connect to a playback device. You can also monitor and playback footage from the camcorder on the 3.0" Clear Photo LCD display with 460K dot resolution. For increased flexibility, you can choose to simultaneously record video in high-quality AVCHD or web-optimized MP4 files, and the built-in microphone lets you capture 5.1 channel Dolby Digital sound.

A built-in USB 2.0 cable provides a connection to your computer for charging or file transfer and fits conveniently into the hand strap, so it's out of the way until you need it. A rechargeable lithium-ion battery pack, USB AC adapter, micro-HDMI cable, and a USB connection support cable come included.
If you own a Sony consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/BDownload user manual for Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B
(PDF file, 3.34 MB)
Additional parameters of the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B:
Camera
Sensor 1x 1/5.8"  CMOS Sensor
Backside Illumination Yes
Color Filter RGB
Pixel Gross 2,510,000
Effective Pixels 2,290,000 16:9
1,710,000 4:3
Optics
35mm Equivalent Focal Length 26.8 - 804 @ Aspect Ratio: 16:9 Video mode
26.8 - 804 @ Aspect Ratio: 16:9 Photo Mode
32.8 - 984 @ Aspect Ratio: 4:3 Photo mode
Maximum Aperture f/ 1.8 - f/ 4
Focusing Distance 0.4" / 1.0 cm - Infinity
Zoom Optical: 30x
Digital: 350x
Intelligent: 60x
Filter Size 46 mm
Recording
System NTSC
Recording Media Memory Stick Micro, microSD/HC/XC
Internal Flash Memory 32 GB
Recording Time Internal Flash Memory 32 GB
1920 x 1080 (2 ch) PS: 2 hr 30 min
1920 x 1080 (2 ch) HD FX: 2 hr 35 min
1920 x 1080 (2 ch) HD FH: 3 hr 25 min
1440 x 1080 (2 ch) HD HQ: 5 hr 25 min
1440 x 1080 (2 ch) HD LP: 7 hr 55 min
Internal Flash Memory 32 GB
1920 x 1080 (5.1 ch) PS: 2 hr 35 min
1920 x 1080 (5.1 ch) HD FX: 2 hr 40 min
1920 x 1080 (5.1 ch) HD FH: 3 hr 30 min
1440 x 1080 (5.1 ch) HD HQ: 5 hr 30 min
1440 x 1080 (5.1 ch) HD LP: 8 hr
Video Format High Definition
AVCHD (MPEG4)
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080p / 24 fps (24 Mbps)
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080p / 24 fps (17 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
1440 x 1080i / 60 fps (9 Mbps)
1440 x 1080i / 60 fps (5 Mbps)
High Definition
MP4
(3 Mbps)
Aspect Ratio 16:9
4:3
Still Image Resolution JPEG: 9.2 Megapixel, 4032 x 2272 (16:9)
JPEG: 6.9 Megapixel, 3024 x 2272 (4:3)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
Channels 5.1-Channel
Audio Format AAC-LC
Dolby Digital 2ch
Dolby Digital 5.1
Display
Display Type LCD
Touchscreen Yes
Screen Size 3.0"
Pixel Count 460,000
Rotation Opening Angle: 90°
Turning Angle: 270°
Projector
Native Resolution Not Specified By Manufacturer
Brightness 25 Lumens
Projection Size Max Diagonal: 100" / 254.00 cm
Exposure Control
Shutter Speed 1/8-1/10000 sec
Features
Image Stabilization Optical
Scene Modes Preset: Yes
Lux 6 (Standard)
3 (Low Lux)
White Balance Modes Auto
Indoor 1
Onepush
Outdoors
Creative Effects Yes
Built-in Mic Yes
Built-in Speaker Yes
Built-in Light/Flash Light - No
Flash - No
Wi-Fi Yes, 802.11b/g/n
Accessory Shoe Multi Interface Shoe
Tripod Mount 1/4"
Input/Output Connectors
Inputs 1x 1/8" (3.5 mm) Stereo Input (Jack)
1x HDMI Micro
Outputs 1x Composite Video (out)
1x HDMI D (Micro)
1x USB 2.0
1x Bravia Sync
1x 1/8" (3.5 mm) Stereo Output (Jack)
Microphone Input Yes
Headphone Jack Yes
General
Languages Brazilian Portuguese
Canadian French
English
Spanish
Battery Rechargeable Lithium-Ion Battery Pack Batteries, 6.8-7.2 VDC, 1030 mAh
Charging Method AC Adapter
USB
Power Adapter 5.0 VDC
Power Consumption In LCD Operation:2.4 W
Dimensions (WxHxD) 2.4 x 2.6 x 4.8" / 61.5 x 66.5 x 121.0 mm
Weight 11.46 oz / 325 g
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 6.3 x 5.0 x 3.8"
The user manual for the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony consumer camcorderss, where you can use our link to download the user manual for the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B.

The user manual lists all of the functions of the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony 32GB HDR-PJ540 Full HD Handycam Camcorder HDRPJ540/B. User manuals are also available on the Sony website under Camcorders - Consumer Camcorders.
