User manual for Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Sony
- Basic description and contents of package
- Product classification: Photography - Digital Cameras - Mirrorless System Cameras
- Safety instructions
- Startup and operation of the mirrorless system cameras
- Tips for setting up your Sony
- Settings and expert assistance
- Contact Sony service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B,
which address similar problems with connecting and setting up Mirrorless System Cameras Sony.
|
User manual for the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B
The user manual for the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

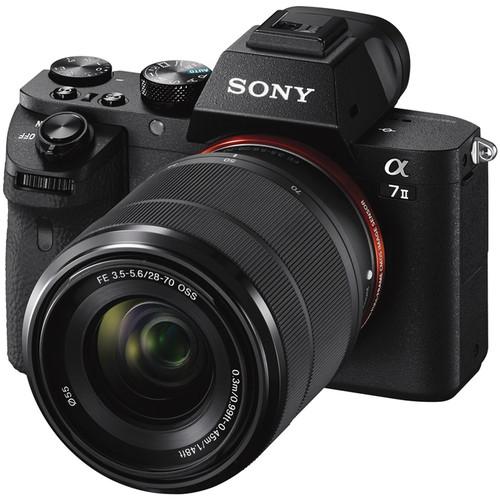

Sony has taken their line of full-frame cameras to the next level with the Alpha a7 II Mirrorless Digital Camera with FE 28-70mm f/3.5-5.6 OSS Lens, which features 5-axis SteadyShot INSIDE image stabilization with 4.5 stops of compensation for pitch, yaw, horizontal shift, vertical shift, and roll. Operation of the 24.3-megapixel series has been streamlined with a redesigned grip, shutter release button, and customizable controls. The a7 II also features a moisture- and dust-resistant design with a magnesium alloy body and a more robust lens mount. And, with refined algorithms and better utilization of the BIONZ X image processor, the a7 II has an enhanced Fast Hybrid AF system that is about 30% faster than the previous model along with a 5 fps burst rate with continuous autofocus as well as a 40% faster start time.
The 24.3-megapixel sensor enables high resolution images and low light effectiveness with its standard ISO sensitivity range of 100-25600. The BIONZ X image processor offers fast processing and operation speeds and front-end LSI (large-scale integration) improves the early stages of image processing resulting in more natural details and richer tones. And, 16-bit image processing and 14-bit RAW output preserves the detail provided by the sensor.
In addition to highly detailed stills with smooth gradations, the a7 II now has access to the high-bit-rate XAVC S format with 60p, 30p, and 24p recording options, all at 50 Mbps. The look of movies can also be adjusted with picture profiles, including the addition of the S-Log2 gamma setting with a dynamic range approximately 1,300% of the standard sRGB spectrum. Timecode and user bit settings are available as well as clean HDMI output for a variety of recording options.
The advanced Sony Multi-Interface shoe expands compatibility options for flash, microphone, and other accessories and, as an E-mount full-frame camera, the a7 II is compatible with all present APS-C E-mount lenses in APS-C crop mode as well as new E-mount full-frame Zeiss and Sony G-series lenses. Lens mount adapters with a tripod mount are also available to use A-mount lenses on E-mount cameras, and an optional dedicated battery grip enables stable extended shooting and vertical orientation stability.
Rounding out the a7 II's imaging capabilities, both a 3.0" 1,228.8k-dot tilting LCD monitor and 2.36 million-dot OLED electronic viewfinder are available for image monitoring and review. Built-in Wi-Fi connectivity, with support for NFC, is available, too, for instant sharing of imagery from the camera as well as remote camera control from a linked mobile device.
Bundled with the a7 II in this kit is the FE 28-70mm f/3.5-5.6 OSS E-mount lens. This wide-to-portrait zoom incorporates three aspherical elements and one extra-low dispersion element into its design to minimize chromatic aberrations and enhance overall image clarity. An optical SteadyShot image stabilization system has also been added to minimize the appearance of camera shake to suit working in dim lighting and with low shutter speeds. This stabilization will work with the in-body stabilization found in the camera. It has a minimum focus distance of 11.8".
|
If you own a Sony mirrorless system cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B:
| Lens Mount | Sony E-Mount | | Camera Format | Full-Frame | | Pixels | Actual: 24.7 Megapixel
Effective: 24.3 Megapixel | | Max Resolution | 24 MP: 6000 x 4000 | | Aspect Ratio | 3:2, 16:9 | | Sensor Type / Size | CMOS, 35.8 x 23.9 mm | | File Formats | Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, MPEG-4, XAVC S
Audio: AAC LC, Dolby Digital 2ch, Linear PCM (Stereo) | | Bit Depth | 14-bit | | Dust Reduction System | Yes | | Memory Card Type | SDXC
SDHC
SD
Memory Stick PRO Duo (High Speed)
Memory Stick PRO HG-Duo
Memory Stick XC-HG Duo | | Image Stabilization | Sensor-Shift, 5-Way | | Video Recording | Yes | | Resolution | 1920 x 1080: 60 fps, 30 fps, 24 fps
1440 x 1080: 30 fps
640 x 480: 30 fps | | Video Format | XAVC S
1920 x 1080p / 60 fps (50 Mbps)
1920 x 1080p / 30 fps (50 Mbps)
1920 x 1080p / 24 fps (50 Mbps)
AVCHD
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
AVCHD
1920 x 1080p / 24 fps (24 Mbps)
1920 x 1080p / 24 fps (17 Mbps)
MP4
1440 x 1080 / 30 fps (12 Mbps)
640 x 480 / 30 fps (3 Mbps) | | Aspect Ratio | 16:9 | | Video Clip Length | Up to 29 Minutes | | Audio Recording | Built-in Mic: With Video, Stereo | | Focus Type | Auto | | Focus Mode | Continuous-servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Phase Detection:117
Contrast Detection:25 | | Viewfinder Type | Electronic | | Viewfinder Size | 0.5" | | Viewfinder Pixel Count | 2,359,296 | | Viewfinder Eye Point | 27.00 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.71x | | Diopter Adjustment | - 4 to +3 m | | Display Screen | 3" Tilting LCD (1,228,800) | | Screen Coverage | 100% | | ISO Sensitivity | 100-25600 (Extended Mode: 50-25600) | | Shutter | Type: Electronic & Mechanical
Speed: 1/8000 - 30 second, Bulb Mode | | Metering Method | Center-weighted average metering, Multi-zone metering, Spot metering | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Programmed Auto, Scene Selection, Shutter Priority, Sweep Panorama
Metering Range: EV -1.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps) | | White Balance Modes | Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater | | Burst Rate | Up to 5 fps at 24 MP for up to 50 frames | | Flash Modes | Auto
Fill-in
Hi-Speed Sync
Off
Rear Sync
Red-eye Reduction
Slow Sync
Wireless | | Built-in Flash | No | | Max Sync Speed | 1 / 250 seconds | | Flash Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) | | Dedicated Flash System | P-TTL | | External Flash Connection | Hot Shoe | | Continuous Shooting | Up to 5 fps | | Self Timer | 10 seconds, 2 seconds
Number of Shots: 1-5 | | Interval Recording | No | | Internal Memory | None | | Connectivity | 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), Micro-USB, Multi Interface Terminal | | Wi-Fi Capable | Yes | | Battery | 1x NP-FW50 Rechargeable Lithium-ion Battery Pack1020 mAh | | AC Power Adapter | AC-PW20 (Optional) | | Dimensions (WxHxD) | 5.0 x 3.8 x 2.4" / 126.9 x 95.7 x 59.7 mm | | Weight | 1.22 lb / 556 g | | Focal Length | 28 - 70mm
Comparable APS-C Focal Length: 42 - 105 mm | | Aperture | Maximum: f/3.5 - 5.6
Minimum: f/22 - 36 | | Angle of View | 75° - 34°
APS-C Picture Angle: 54° - 23° | | Minimum Focus Distance | 11.81" (.3 m) | | Magnification | 0.19x | | Maximum Reproduction Ratio | 1:5.26 | | Elements/Groups | 9/8 | | Diaphragm Blades | 7, Rounded | | Autofocus | Yes | | Image Stabilization | Yes | | Filter Thread | Front: 55 mm | | Dimensions (DxL) | Approx. 2.85 x 3.27" (72.5 x 83 mm) | | Weight | 10.41 oz (295 g) | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 9.528 x 6.142 x 5.669" | |
The user manual for the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B can be downloaded in .pdf
format if it did not come with your new mirrorless system cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony mirrorless system camerass,
where you can use our link to download the user manual for the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B.
The user manual lists all of the functions of the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B,
all the basic and advanced features and tells you how to use the mirrorless system cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B. User manuals are also
available on the Sony website under Photography - Digital Cameras - Mirrorless System Cameras.
Question and answer discussion forum concerning user instructions and resolving problems with the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Sony Alpha a7 II Mirrorless Digital Camera with FE ILCE7M2K/B
|
|
|
|
|
