User manual for the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900
The user manual for the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900 provides
necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

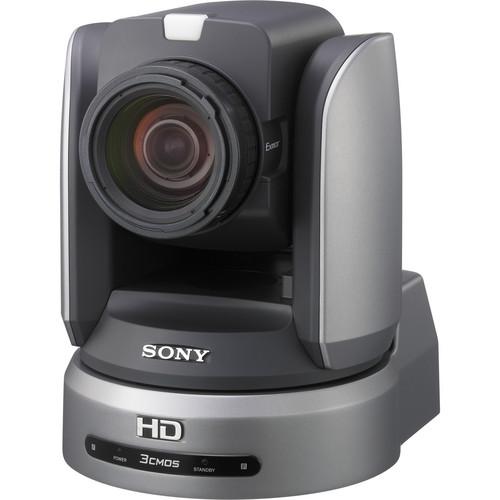

The Sony BRC-H900 is an HD video PTZ camera unit. The unit consists of the pan/tilt module and the camera head and lens. The BRC-H900 is switchable between 59.98 and 50 Hz standards (NTSC and PAL), and simultaneously outputs both HD/SDI and SD video. This feature makes it well suited for facilities that are planning to transition to HD, as you can shoot SD now, and change over to HD by simply using a different output on the unit.
The camera head produces HD video in 1080i or 720p, using the 1/2" Exmor Full HD 3CMOS sensor and a 5.8-81.2mm / f/1.9-f/2.8 optical zoom lens. It features a sensitivity of 4-lux at F1.9 with gain at + 24 db, for low light shooting capability. An extensive image-control menu tree is accessible by remote, allowing for fine-tuning and optimizing of the image. The BRC-H900 has a slot for a single expansion card. Optional cards are available for adding additional HD/SD-SDI output, additional analog SD output, HD Optical Multiplex capability, or IP control.
The BRC-H900 unit installs on a desk or a tripod, or mounts onto a ceiling using the included hardware. Tripod mounting is possible by using one of the two 1/4"-20 receivers in the base of the unit. The camera also comes with an included Image Flip Option, which simplifies setting up the camera when mounted upside down. You can program the camera with up to 16 preset positions, which is useful for repetitive events and productions.
Remote operation is a major component of the BRC-H900's design. The included Sony Remote Commander utilizes IR to control the unit, which also has a built-in 3-position IR selector switch, allowing individual control of adjacent units. Additionally the optional Sony RM-BR300 remote control unit can control the BRC-H900 when connected to the unit's built-in RS-232C or RS-422 ports using Sony's VISCA protocol. The RM-BR300 can individually control up to 7 cameras daisy chained together. Installation of an optional IP controller card in the expansion slot allows for remote operation over IP.
The small size and remote operation capabilities of the BRC-H900 allow for placement where a manually operated camera and operator could not go. It features remote control operation of pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-H900 is suitable for use in the corporate boardroom, video studio, auditorium, house of worship, government buildings, and for remote and e-learning applications.
|
If you own a Sony ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900:
| Sensor | 1/2" Exmor 3CMOS Image Sensor | | Resolution | Approx. 2.07 Megapixels | | Signal System | 60 Hz
1080/59.94i
720/59.94p
NTSC
50 Hz
1080/50i
720/50p
PAL | | Horizontal Resolution | > 1000 TV Line (HD-SDI Output) (Center) | | Minimum Illumination | 4 lux (50 IRE, f/1.9, +24dB) | | Shutter Speed Range | 1/8000 to 1/60
1/8000 to 1/50 | | Gain | Auto, Manual
-3 to 24 dB | | White Balance | Settings
Auto / Outdoor / Indoor
Method
One-push / Manual | | Gamma Curve | STD 1
STD 2
STD 3
STD 4
CINE 1
CINE 2
CINE 3
CINE 4 | | Image Stabilization | SteadyShot
On / Off | | Image Flip | Selectable On / Off | | Video Signal-to-Noise Ratio | 50 dB | | Sync Input | External
1 x BNC 75 Ω | | Synchronization System | Internal / External | | HD | SDI
1 x BNC
HD / SD Switchable
RGB/Component
1 x D-Sub 15 Pin
Component (Y/Pb/Pr)
RGB
HD
Bi-Level VD
Tri-Level SYNC | | SD | 1 x BNC Composite
1 x S-Video Y/C | | Camera Control | Mini DIN 8 Pin
1 x RS-232C (VISCA IN )
Mini Din 8 Pin
1 x RS-232C (VISCA OUT)
Connector Plug 9 Pin
1 x RS-422 (VISCA IN / OUT) | | Lens | Focal Length
f=5.8-81.2mm (f/1.9-f/2.8)
Zoom Ratio
14x Optical Zoom
Minimum Object Distance
31.5" (80 cm)
Horizontal Viewing Angle
59.6° at the Wide End of the Lens
Focusing System
Auto / Manual | | Pan/Tilt | Pan Angle
-170 to +170°
Tilt Angle
-30 to +90°
Pan/Tilt Speed
0.22 to 60°/sec
Preset Positions
16 | | Presets | Number of Programmable Position Presets
16
Included
Presets 1-6 available using the included Remote Commander
Optional
Presets 7-16 require the use of the optional RM-BR300 | | Tally Light | Quantity
2
Location
1 x Front
1 x Rear | | Expansion Slot | 1 x Available Slot
Card Options
HD/SD-SDI Output Card - BRBK-HSD2
Analog SD Output Card - BRBK-SA1
HD Optical Multiplex Card - BRBK-SF1
IP Control Interface Card - BRBKIP10 | | Mounting | Less than ±15° to the horizontal surface | | Ceiling Mount Bracket | 2 x Brackets Included
Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg) | | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | | Tripod Mount | 2 x 1/4"-20 Threaded Female Receiver | | Temperature | Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C) | | Power Requirements | 10.8 to 13.2 VDC | | Power Consumption | Without Optional Cards
28.8 W
With Optional Cards
34.2 W | | Dimensions (WxHxD) | 7.83 x 10.25 x 9.38" (20 x 26 x 24 cm) | | Weight | 11 lb (5.0 kg) | | Package Weight | 19.1 lb | | Box Dimensions (LxWxH) | 17.5 x 15.2 x 11.8" | |
The user manual for the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900 can be downloaded in .pdf
format if it did not come with your new ptz cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony ptz camerass,
where you can use our link to download the user manual for the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900.
The user manual lists all of the functions of the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900,
all the basic and advanced features and tells you how to use the ptz cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony BRC-H900 1/2" HD 3CMOS Remote PTZ Camera BRC-H900. User manuals are also
available on the Sony website under Professional Video - PTZ Cameras.
