User manual Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B

Operating instructions and pdf manual for use - Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B User manual, User manual Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B, Sony, Cyber-shot, DSC-RX1R, II, Digital, Camera, DSCRX1RM2/B,


User manual for Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Point & Shoot Cameras
  • Safety instructions
  • Startup and operation of the point & shoot cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B, which address similar problems with connecting and setting up Point & Shoot Cameras Sony.



User manual for the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B

The user manual for the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B provides necessary instructions for the proper use of the product Photography - Digital Cameras - Point & Shoot Cameras.

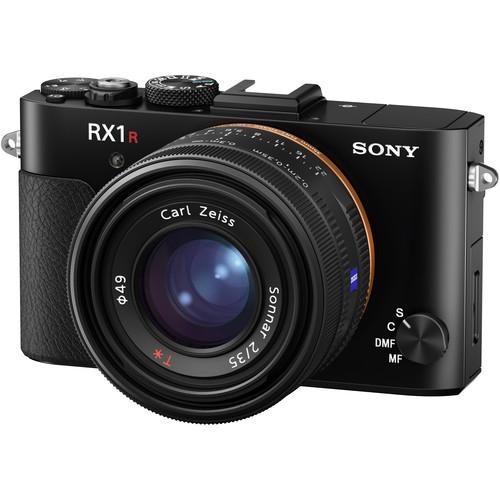

On the cutting edge of imaging technology, the Cyber-shot DSC-RX1R II Digital Camera from Sony packs in a full-frame 42.4-megapixel Exmor R back-illuminated CMOS sensor and BIONZ X processor behind a fixed Zeiss Sonnar T* 35mm f/2 lens that grants users the ability to capture finely detailed images in an extraordinarily compact body. In addition to this, the RX1R II has a world's first variable optical low-pass filter system that can adjust voltage on a liquid crystal layer to adjust the light-splitting properties of the array. This feature allows users to prioritize detail, eliminate moire and aliasing, or strike a balance between the two.

Located on the sensor are 399 phase-detect AF points in a Fast Hybrid AF system that can lock onto and track subjects quickly. This setting can also be used in the continuous shooting mode at up to the maximum of 5 fps for capturing fast moving action. In addition to this, the improved processing and speed from the RX1R II's sensor and processor combo enables capturing images at expanded sensitivities ranging from ISO 50-102400. And, Sony has added an uncompressed 14-bit RAW format for uncompromising images.

In addition to these major advancements in imaging, the body design has been refined and the RX1R II is now equipped with a pop-up 0.39" 2.36M-dot XGA OLED Tru-Finder EVF. This viewfinder has an impressive magnification of 0.74x for comfortable, clear eye-level viewing and has a 4-lens optical system with two glass molded aspherical elements to ensure crisp, vibrant imagery. Along with this, the 3.0" 1,228.8k-dot LCD monitor can now tilt upwards 109° and down 41° for working in a variety of positions and angles.

On the front of the camera is the impressive Zeiss 35mm lens which provides shooters with a classic wide angle focal length well-suited to street photography and documentary work, an excellent pairing for a compact and unobtrusive camera. The lens also offers a fast f/2 maximum aperture for creating images with a shallow depth-of-field and for working more easily in low light. Along with this, the lens utilizes three aspherical elements, including one advanced aspherical that will minimize aberrations and distortion.

Video has also seen some notable improvement thanks to the implementation of the high bit rate XAVC S format. This format will record Full HD 1080p video at 50 Mbps at frame rates up to 60 fps. Also, the camera will be able to capture HD 720p video at up to 120 fps for slow motion and it has a 3.5mm jack for using external microphones and audio devices.

Numerous other features, such as Bright Monitoring, Eye AF, support for 4:3 and 1:1 aspect ratios, and ISO auto minimum shutter speed have made their way into this model. Also, the camera has built-in Wi-Fi connectivity with NFC (Near Field Communication) for pairing the device with a smartphone or tablet for remote control and transfer of images. In addition to this, the RX1R II supports Sony's PlayMemories Camera apps for adding advanced functionality to the camera later on.
If you own a Sony point & shoot cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/BDownload user manual for Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B
(PDF file, 6.45 MB)
Additional parameters of the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B:
Specifications
Imaging
Pixels Actual: 43.6 Megapixel
Effective: 42.4 Megapixel
Sensor Full Frame (35.9 x 24.0 mm) CMOS
Bit Depth 14-bit
File Formats Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, MP4, XAVC S
Audio: AAC LC, Dolby Digital 2ch, Linear PCM (Stereo)
Max Resolution 42 MP: 7952 x 5304
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image Stabilization Digital
Color Spaces sRGB, Adobe RGB
Optics
Lens Carl Zeiss Sonnar, 8 elements in 7 groups
3 Aspherical
EFL: 35mm
Aperture: f/2 to f/22
Filter Thread 49mm
Zoom Clear Image Zoom: 2x
Digital: 4x
Digital: 6.2x
Digital: 8x
Focus Range Normal: 11.81" (30 cm) - Infinity
Macro: 7.87" (20 cm) - 13.78" (35 cm)
Exposure Control
ISO Sensitivity Auto, 100-25600 (Extended Mode: 50-102400)
Shutter Type: Mechanical
Speed: 1/4000 - 30 seconds
Exposure Metering Center-weighted, Multi, Spot
Exposure Modes Modes: Aperture Priority, Auto, Manual, Memory Recall, Panorama Shot, Program, Scene Selection, Shutter Priority
Compensation: -5 EV to +5 EV (in 1/3 EV steps)
White Balance Modes Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
Burst Rate Up to 5 fps
Self Timer 10 Sec, 5 Sec, 2 Sec
Remote Control Optional
Flash
Flash Modes Auto
Fill-in
Off
Rear Sync
Slow Sync
Wireless
Built-in Flash No
External Flash Connection Hot Shoe
Memory
Built-in Memory None
Memory Card Type SDXC
SDHC
SD
Memory Stick Duo
Memory Stick Pro Duo
Memory Stick PRO Duo (High Speed)
Memory Stick PRO HG-Duo
Recording
Video Recording Yes, NTSC/PAL
Resolution 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
1280 x 720p: 120 fps
1920 x 1080i: 60 fps, 50 fps
Video
Video Clip Length Up to 29 Minutes
Audio Recording Built-in Mic: With Video, Stereo
Optional External Mic: With Video, Stereo + Mono
Viewfinder/Display
Viewfinder Type Electronic
Diopter Adjustment - 4 to +3 m
Viewfinder Coverage 100%
Screen 3.0" LCD Rear Screen Tilt (1,288,800 pixels)
Screen Coverage 100%
Connectivity/System Requirements
Connectivity 1/8" Microphone, HDMI D (Micro), Micro-USB
Wi-Fi Yes, 802.11b/g/n built-in
GPS No
Environmental
Operating/Storage Temperature 32 to 104°F (0 to 40°C)
Waterproofing None
Power
Battery 1x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
Physical
Dimensions (WxHxD) 4.5 x 2.6 x 2.8" / 113.3 x 65.4 x 72.0 mm
Weight 1.12 lb / 507 g with battery and card
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 8.9 x 6.2 x 5.7"
The user manual for the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B can be downloaded in .pdf format if it did not come with your new point & shoot cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony point & shoot camerass, where you can use our link to download the user manual for the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B.

The user manual lists all of the functions of the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B, all the basic and advanced features and tells you how to use the point & shoot cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony Cyber-shot DSC-RX1R II Digital Camera DSCRX1RM2/B. User manuals are also available on the Sony website under Photography - Digital Cameras - Point & Shoot Cameras.
