User manual Sony DSC-RX1 Full Frame Compact Digital Camera

Operating instructions and pdf manual for use - Sony DSC-RX1 Full Frame Compact Digital Camera User manual, User manual Sony DSC-RX1 Full Frame Compact Digital Camera, Sony, DSC-RX1, Full, Frame, Compact, Digital, Camera


User manual for Sony DSC-RX1 Full Frame Compact Digital Camera

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony DSC-RX1 Full Frame Compact Digital Camera
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Point & Shoot Cameras
  • Safety instructions
  • Startup and operation of the point & shoot cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony DSC-RX1 Full Frame Compact Digital Camera, which address similar problems with connecting and setting up Point & Shoot Cameras Sony.



User manual for the Sony DSC-RX1 Full Frame Compact Digital Camera

The user manual for the Sony DSC-RX1 Full Frame Compact Digital Camera provides necessary instructions for the proper use of the product Photography - Digital Cameras - Point & Shoot Cameras.

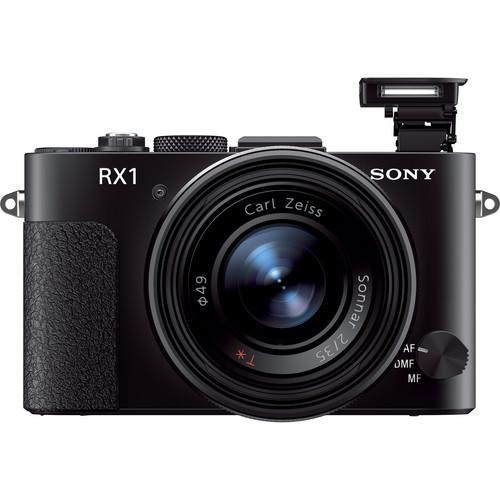

The Sony Cyber-shot DSC-RX1 Full Frame Compact Digital Camera is the world's first fixed-lens digital camera with a full-frame sensor. This large 35mm Exmor CMOS sensor enables DSLR-quality imaging in a point-and-shoot form factor (4.5 x 2.6 x 2.8" / 11.4 x 6.6 x 7.1 cm). In addition to 24MP JPEG or RAW still images, the RX1 will also shoot Full HD 1080p video at 24 or 60fps. The 35mm f/2.0 Carl Zeiss Sonnar T* lens features a wide maximum aperture of f/2.0 with 9 iris blades, for reliable low-light performance and shallow depth of field with attractive bokeh (background blur). The multi-layered T* coating minimizes ghosting and flare caused by light reflection.

For framing and playback, the camera features a large 3" Xtra Fine LCD monitor with a 1,229k-pixel resolution. The screen uses WhiteMagic technology to improve visibility in bright daylight.

The RX1's sensor works with the BIONZ image processor to enable the camera to autofocus at high speed. Manual focusing is also available, and the camera has three distinct manual control rings for aperture, focusing, and macro.

The combination of the CMOS sensor and the BIONZ processor also allows for improved sensitivity, resulting in better low-light performance. The maximum selectable ISO setting is 25600, enabling low-light shooting without the camera's built-in pop-up flash. Also aiding you in darker conditions is Optical SteadyShot image stabilization, which enables clear, blur-free photos and video. SteadyShot also helps to eliminate motion blur when your subject or the camera moves during image capture.

The RX1 is capable of 5fps high-speed continuous shooting at full 24MP resolution, allowing you to capture fast action sequences. A multi interface hot shoe gives you the ability to attach optional accessories like an external flash unit or electronic viewfinder.

Auto HDR captures a greater dynamic range, combining the best highlight detail from one shot, the best mid-tones from a second, and the best shadow detail from a third into a single image.
If you own a Sony point & shoot cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony DSC-RX1 Full Frame Compact Digital Camera in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony DSC-RX1 Full Frame Compact Digital CameraDownload user manual for Sony DSC-RX1 Full Frame Compact Digital Camera
(PDF file, 6.39 MB)
Additional parameters of the Sony DSC-RX1 Full Frame Compact Digital Camera:
Specifications
    Imaging
    Pixels Actual: 24.7 Megapixel
    Effective: 24.3 Megapixel
    Sensor Full Frame (35.8 x 23.9 mm) CMOS
    Bit Depth 14-bit
    File Formats Still Images: JPEG, RAW
    Movies: MPEG-4, MPEG-4 AVCHD
    Max Resolution 24 MP: 6000 x 4000
    Aspect Ratio 3:2, 16:9
    Image Stabilization Optical & Digital
    Color Spaces Not Specified By Manufacturer
    Optics
    Lens 8 elements in 7 groups
    3 Aspherical
    EFL: 35mm
    Aperture: f/2.0 (W) - 22 (T)
    Filter Thread 49mm
    Zoom Digital: 2x
    Digital: 4x
    Digital: 6.1x
    Digital: 9.1x
    Focus Range Normal: 9.45" (24 cm) - Infinity
    Macro: 5.51" (14 cm) - 11.42" (29 cm)
    Exposure Control
    ISO Sensitivity Auto, 50-25600
    Shutter 30 - 1/4000
    Exposure Metering Center-weighted, Multi, Spot
    Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
    Compensation: -3 EV to +3 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (Day White), Fluorescent (White), Incandescent, Shade

    Also: Color temperature

    Burst Rate Up to 5 fps at 24.3 MP
    Self Timer 10 Sec, 2 Sec
    Interval Recording Not Specified By Manufacturer
    Remote Control Not Specified By Manufacturer
    Flash
    Flash Modes Auto
    Fill-in
    Off
    Second-curtain Sync
    Slow Sync
    Built-in Flash Yes
    Maximum Effective Flash Range 2.46 - 71.19' (0.75 - 21.7 m)
    Up To 142.39' (43.4 m)
    External Flash Connection Hot Shoe, Wireless
    Memory
    Memory Card Type Memory Stick Duo
    Memory Stick Pro Duo
    Memory Stick PRO HG-Duo
    SD
    SDHC
    SDXC
    Still Images per GB Not Specified By Manufacturer
    Recording
    Video Recording Yes
    Resolution 1920 x 1080: 60 fps, 24 fps
    Video
    Video Clip Length Up to 29 Minutes
    Audio Recording With Video, Stereo
    Viewfinder/Display
    Viewfinder Type None
    Screen 3" LCD Rear Screen (1,229,000 pixels)
    Connectivity/System Requirements
    Connectivity 1/8" Microphone
    HDMI D (Micro)
    Micro-USB
    USB 2.0
    Software System Requirements Not Specified By Manufacturer
    Environmental
    Operating/Storage Temperature Not Specified By Manufacturer
    Certifications Not Specified By Manufacturer
    Power
    Battery NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
    AC Power Adapter AC-UD11 (Included)
    Physical
    Dimensions (WxHxD) 4.5 x 2.6 x 2.8" / 11.4 x 6.6 x 7.1 cm
    Weight 1.06 lb / .48 kg
    Packaging Info
    Package Weight 2.3 lb
    Box Dimensions (LxWxH) 9.9 x 6.2 x 5.7"
    The user manual for the Sony DSC-RX1 Full Frame Compact Digital Camera can be downloaded in .pdf format if it did not come with your new point & shoot cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony point & shoot camerass, where you can use our link to download the user manual for the Sony DSC-RX1 Full Frame Compact Digital Camera.

    The user manual lists all of the functions of the Sony DSC-RX1 Full Frame Compact Digital Camera, all the basic and advanced features and tells you how to use the point & shoot cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony DSC-RX1 Full Frame Compact Digital Camera. User manuals are also available on the Sony website under Photography - Digital Cameras - Point & Shoot Cameras.
