User manual Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50

Operating instructions and pdf manual for use - Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50 User manual, User manual Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50, Sony, DWZ-M50, Digital, Wireless, Vocal, Set, DWZ-M50, Video


User manual for Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Sony  DWZ-M50 Digital Wireless Vocal Set DWZ-M50
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50, which address similar problems with connecting and setting up Wireless Systems Sony.



User manual for the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50

The user manual for the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

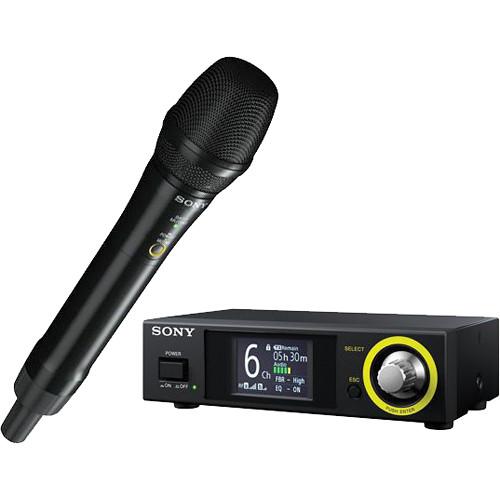

The Sony DWZ-M50 Digital Wireless Vocal Set features 24-bit linear PCM audio transmission and is ideal for vocal performance. The set includes both a ZTX-M01 handheld microphone transmitter and a ZRX-HR50 half-rack size receiver.

The handheld microphone features an interchangeable dynamic cardioid microphone capsule. Supercardioid dynamic, cardioid condenser and wide-cardioid dynamic capsules are separately available from Sony. The receiver features a balanced XLR output as well as two unbalanced 1/4" outputs. The color LCD display has an onboard menu system, allowing access to clear channel scan or manual channel selection. It also features a digital 5-band EQ.
If you own a Sony wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony  DWZ-M50 Digital Wireless Vocal Set DWZ-M50Download user manual for Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50
(PDF file, 2.21 MB)
Additional parameters of the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50:
Specifications
    Wireless System Specs
    Carrier Frequency Range 2402.0 MHz to 2478.5 MHz
    Occupied Bandwidth 2.5 MHz
    Emissions Standards F1D and F1E
    Modulation Method GFSK
    Operating Temperature Range 32°F to 122°F (0°C to 50°C)
    Storage Temperature Range -4°F to 140°F (-20°C to 60°C)
    Transmitter
    Model Number ZTX-M01 handheld microphone transmitter
    RF Output Power 10 mW (e.i.r.p.)
    Antenna λ/4 monopole antenna
    Microphone Type Dynamic: unidirectional
    Frequency Response Transmission: 10 Hz to 22 kHz
    Microphone unit: 70 Hz to 16 kHz
    Maximum Input Level 142 dB SPL (when attenuator level is 12 dB)
    Dynamic Range 102 dB (A-weighted)
    Power Requirements 3.0 VDC:
    2 x AA (LR6) batteries
    Battery Life (approx.) 10 hrs of continuous use @ 77°F (25°C) ambient temperature
    Dimensions (Ø x L) 1.89 x 10.16" (48 x 258 mm)
    Weight 11 oz (305 g)
    Receiver
    Model Number ZRX-HR50 half-rack size receiver
    Antenna Connector BNC-R, 50Ω
    Frequency Response 10 Hz to 22 kHz
    Maximum Output Level Balanced Output:
    MIC: -22 dBu
    LINE: +24 dBu
    Unbalanced Output: +8 dBu
    Reference Output Balanced Output:
    MIC: -58 dBu
    LINE: -12 dBu
    Unbalanced Output: -28 dBu
    Power Requirements External DC input: 12 VDC
    Consumption Current 220 mA
    Dimensions (W x H x D) 6.6 x 1.7 x 3.8" (168 x 44 x 96 mm)
    Weight 1.12 lb (510 g)
    Packaging Info
    Package Weight 3.45 lb
    Box Dimensions (LxWxH) 11.5 x 8.5 x 4.1"
    Sony DWZ System Demo
    The user manual for the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony wireless systemss, where you can use our link to download the user manual for the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50.

    The user manual lists all of the functions of the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony DWZ-M50 Digital Wireless Vocal Set DWZ-M50. User manuals are also available on the Sony website under Pro Audio - Live Sound - Wireless Systems.
