User manual Sony EVI-D80 PTZ Camera (White) EVID80/W

Operating instructions and pdf manual for use - Sony EVI-D80 PTZ Camera (White) EVID80/W User manual, User manual Sony EVI-D80 PTZ Camera (White) EVID80/W, Sony, EVI-D80, PTZ, Camera, White, EVID80/W, Video


User manual for Sony EVI-D80 PTZ Camera (White) EVID80/W

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony  EVI-D80 PTZ Camera (White) EVID80/W
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - PTZ Cameras
  • Safety instructions
  • Startup and operation of the ptz cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 725 USD
We recommend checking out our discussion threads on the Sony EVI-D80 PTZ Camera (White) EVID80/W, which address similar problems with connecting and setting up PTZ Cameras Sony.



User manual for the Sony EVI-D80 PTZ Camera (White) EVID80/W

The user manual for the Sony EVI-D80 PTZ Camera (White) EVID80/W provides necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

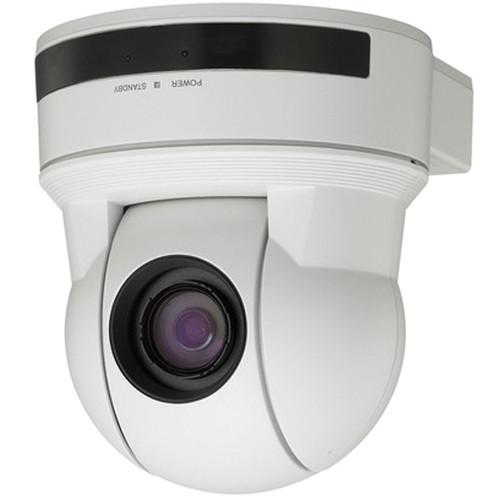

The white Sony EVI-D80 PTZ Camera is a standard definition video camera that features a 1/4" CCD sensor, an 18x optical zoom lens, and robotic pan, tilt and zoom. SD video is output via composite or S-Video connections. The EVI-D80 can memorize up to 6 preset positions and uses standard RS-232C or RS-422 VISCA for remote interface. An IR Remote Commander Unit is also included.

The lens has a fast maximum aperture of f/1.4-3.0 and a 4.1-73.8mm focal length, which renders a 35mm equivalent of approximately 44.3-798mm. The minimum object distance is 0.39" at the wide end and 31.5mm at the telephoto end of the lens. When mounted upside-down, the E-flip function will automatically flip the image, so video will be displayed right-side-up. The EVI-D80 can pan 170° in either direction and tilt +90/-20°.
If you own a Sony ptz cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony EVI-D80 PTZ Camera (White) EVID80/W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony EVI-D80 PTZ Camera (White) EVID80/W:
Sensor 1/4-type CCD
Signal System SD: NTSC
Focal Length f=4.1 to 73.8 mm
F1.4 to F3
Optical Zoom 18x
Digital Zoom 12x
Minimum Object Distance 10 - 800 mm
*Default: 290 mm
Horizontal Viewing Angle 48 - 2.8°
Focus Systems Auto, One-Push AF, Manual, Infinity
Minimum Illumination 0.4 lx (F1.4, 50 IRE)
Shutter Speed 1 - 1/10,000 second
Gain Auto/Manual/Max. AE Gain Limit (-3 to +28 dB, 2 dB steps)
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Wide-D No
Exposure Control Auto, Manual, Priority mode (shutter priority and iris priority), Bright, EV compensation, Slow Shutter AE
S/N Ratio More than 50 dB
Pan Angle: +/-170°
Max. speed: 100°/sec
Tilt Angle: +90°/-20°
Max. speed: 190°/sec
Preset Positions 6
Video Output Composite, S-Video
Camera Control Interface: RS-232C/RS-422
Protocol: VISCA
Power Requirements DC 12V
Power Consumption 6W
Operating Temperature 32 to 104° F (0 to 40° C)
Storage Temperature -4 to +140° F (-20 to +60° C)
Dimensions 5.75 x 6.5 x 6.5" (14.5 x 16.4 x 16.4 cm)
Weight 3.18 lb (1.44 kg)
Packaging Info
Package Weight 6.0 lb
Box Dimensions (LxWxH) 11.0 x 10.0 x 9.0"
The user manual for the Sony EVI-D80 PTZ Camera (White) EVID80/W can be downloaded in .pdf format if it did not come with your new ptz cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony ptz camerass, where you can use our link to download the user manual for the Sony EVI-D80 PTZ Camera (White) EVID80/W.

The user manual lists all of the functions of the Sony EVI-D80 PTZ Camera (White) EVID80/W, all the basic and advanced features and tells you how to use the ptz cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony EVI-D80 PTZ Camera (White) EVID80/W. User manuals are also available on the Sony website under Professional Video - PTZ Cameras.
