User manual for the Sony EVI-H100V PTZ Camera (White) EVIH100V/W
The user manual for the Sony EVI-H100V PTZ Camera (White) EVIH100V/W provides
necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

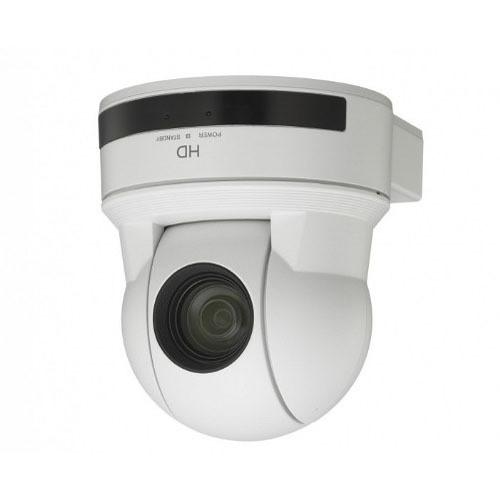

The white Sony EVI-H100V PTZ Camera features a 1/2.8" Exmor CMOS sensor, a 20x optical zoom lens and robotic pan, tilt and zoom. The EVI-H100V is capable of 1080 resolution at 29.97p, 25p, 59.97i, and 50i frames per second. In addition, 59.94p is available with 720 resolution. The lens has a focal length of 4.7-94mm, which approximates a 31.3-626mm 35mm equivalent angle-of-view. A fast maximum aperture of f/1.6-3.5 facilitates excellent image quality in low light environments.
When the camera is mounted upside-down the E-flip function automatically flips the picture 180°. The camera can memorize up to six preset settings and/or positions and it can pan 170° in either direction, at a max speed of 100° per second. The EVI-H100V can be controlled via RS-232C/RS-422, a PC connection, or by an included multi-function IR remote control.
|
If you own a Sony ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony EVI-H100V PTZ Camera (White) EVIH100V/W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony EVI-H100V PTZ Camera (White) EVIH100V/W:
| Sensor | 1/2.8-type Exmor CMOS | | Signal System | HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 1080PsF29.97), 1080i/50 (frame out 1080PsF25), 720p/59.94, 720p/50, 720p/29.97, 720p/25 | | Focal Length | f=4.7 to 94 mm
F1.6 to F3.5 | | Optical Zoom | 20x | | Digital Zoom | 12x | | Minimum Object Distance | 10 - 800 mm
*Default: 290 mm | | Horizontal Viewing Angle | 55.4 - 2.9° | | Focus Systems | Auto, One-Push AF, Manual, Infinity | | Minimum Illumination | High sensitivity mode: 0.5 lx (F1.6, 50 IRE)
Normal mode: 1.7 lx (F1.6, 50 IRE) | | Shutter Speed | 1 - 1/10,000 second | | Gain | Auto/Manual/Max. AE Gain Limit (-3 to 28 dB, 2 dB steps) | | White Balance | Auto, Indoor, Outdoor, One-Push, Manual | | Wide-D | Yes | | Exposure Control | Auto, Manual, Priority Mode (Shutter Priority & Iris Priority), Bright, EV Compensation, Slow Shutter AE | | S/N Ratio | More than 50 dB | | Pan | Angle: +/-170°
Max. speed: 100°/sec | | Tilt | Angle: +90°/-20°
Max. speed: 90°/sec | | Preset Positions | 6 | | Video Output | DVI-I, Digital (RGB) and Analog Component | | Camera Control | Interface: RS-232C/RS-422
Protocol: VISCA | | Power Requirements | DC 12V | | Power Consumption | 11W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Dimensions | 5.75 x 6.5 x 6.5" (14.5 x 16.4 x 16.4 cm) | | Weight | 3.43 lbs (1.55 kg) | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 11.7 x 10.7 x 8.7" | |
