User manual for the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1
The user manual for the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

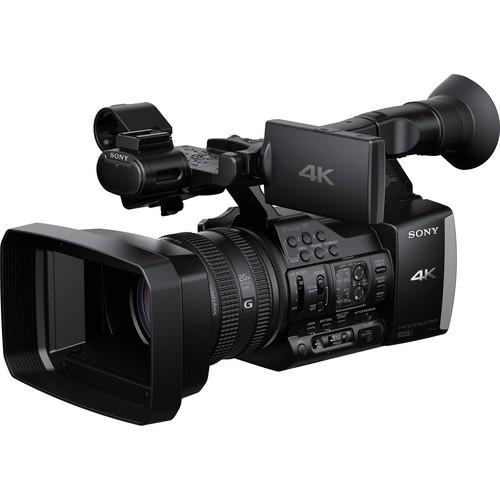

The Sony FDR-AX1 Digital 4K Video Camera Recorder is the first consumer 4K video camera from Sony. They've used the technology developed for their professional video cameras to create a compact, easy-to-operate 4K consumer model that's designed to make 4K video and professional-quality audio available to the masses. The FDR-AX1's powerful image processor is identical to the high-performance processors found in Sony's professional video cameras. By incorporating an image processor that can handle 4K video at 60 fps into a consumer camcorder, everyone will be able to document important family moments, get creative with friends, record sporting events and capture the world around them in lifelike detail. The FDR-AX1's native 3840 x 2160 4K resolution enables you to create movies with four times as much detail and quadruple the image quality of a Full HD 1080p camcorder. Plus, this model features a back-illuminated 8.3MP Exmor R CMOS image sensor that works in concert with the processor so you can record at the maximum frame rate - even when shooting 4K video. This means that even your high-speed action shots and sports videos will be clear, sharp and detailed.
|
If you own a Sony camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1:
| Sensor | 1/2.3" back-illuminated Exmor R CMOS sensor | | Pixel Gross | Approx. 18,900,000 pixels | | Effective Pixels | Approx. 8,300,000 pixels | | Color Filter System | RGB primary color filters | | Lens | Sony G Lens | | Image Stabilization | Optical SteadyShot image stabilization | | Aperture | f/1.6 - f/3.4 | | Focal Length | 4.1 - 82 mm | | 35mm Equivalent Focal Length | 31.5 - 630 mm | | Optical Zoom | 20x | | Filter Diameter | 72 mm | | Minimum Focus Distance | Wide: Approx. 0.4" (1 cm)
Tele: Approx. 31.5" (80 cm) | | Aperture Blade | 6 blades | | ND Filter | Off
1/4
1/16
1/64 | | Control Rings | Focus ring
Iris ring
Zoom ring | | Video Signal | UHDTV
HDTV | | Video Format | XAVC-S format
MPEG-4 AVC/H.264 | | Compatible Formats | XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/60p)
XAVC-S: MP4 (4:2:0, 150 Mbps, 4K 3840 x 2160/50p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/30p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/25p)
XAVC-S: MP4 (4:2:0, 60 or 100 Mbps, 4K 3840 x 2160/24p)
XAVC-S: MP4 (4:2:0, 50 Mbps, HD 1920 x 1080)
AVCHD: m2ts (4:2:0, up to 28 Mbps, HD 1920 x 1080) | | Media Type | XQD memory card x 2 | | Video Resolution | 4K: 3840 x 2160p at 60 fps (150 Mbps)
4K: 3840 x 2160p at 30 fps (100 Mbps)
4K: 3840 x 2160p at 30 fps (60 Mbps)
4K: 3840 x 2160p at 24 fps (100 Mbps)
4K: 3840 x 2160p at 24 fps (60 Mbps)
4K: 3840 x 2160p at 50 fps (150 Mbps)
4K: 3840 x 2160p at 25 fps (100 Mbps)
4K: 3840 x 2160p at 25 fps (60 Mbps)
HD: 1920 x 1080p at 60 fps (50 Mbps)
HD: 1920 x 1080p at 30 fps (50 Mbps)
HD: 1920 x 1080p at 24 fps (50 Mbps)
HD: 1920 x 1080p at 50 fps (50 Mbps)
HD: 1920 x 1080p at 25 fps (50 Mbps) | | Recording Time | 50 min with 64GB XQD card (XAVC-S 3840 x 2160/60p, 150 Mbps)
150 min with 64GB XQD card (XAVC-S 1920 x 1080p/60p, 50 Mbps) | | Video Actual (Pixels) | Approx. 8,300,000 pixels | | Audio Format | Linear PCM (48 kHz / 16-bit) | | Audio Channels | 2-channels | | Microphone Max Input Level | 120 dB SPL | | Built-In Microphone | Yes (2-channel stereo microphone) | | Built-In Speakers | Yes (monaural speaker) | | Microphone Level Control | Yes (2 steps) | | Wind Position | Yes (On/Off) | | Type | 0.45" (1.14 cm) | | Backlight | Yes | | Power Mode | Yes | | LCD Type | 3.5" (8.8 cm) Xtra Fine LCD 3D display | | Pixels | 1,229,000 pixels | | Aspect Ratio | 16:9 (wide) | | Angle Adjustment | Opening Angle: 180° (max)
Turning Angle: 270° (max) | | Backlight | Yes (menu) | | Coverage | 100% | | Marker | Yes | | Focus System | Contrast AF | | AF Modes | Auto
Manual (ring) | | Focus Area | Full range focus | | Push Auto Focus | Yes | | Manual Focus Assist | Magnified display for precise manual focus
Peaking display | | Metering Modes | Multi-segment | | Exposure Compensation | AE level
AE speed (menu) | | Noise Reduction | Yes | | White Balance Modes | Auto
One Push
Outdoor
Indoor
Color Temp | | WB Shift | Yes | | Minimum Illumination | 60p: 4 lux (1/30 shutter speed)
50p: 3 lux (1/25 shutter speed) | | Auto Iris Control | f/1.6 - f/11 | | Manual Iris Control | f/1.6 - f/11 | | Push Auto Iris | Yes | | Manual Exposure Assist | Zebra pattern display | | Memory Card Slot | XQD x 2 (for XAVC-S)
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
SD/SDHC/SDXC compatible x 1 (for AVCHD)
SD/SDHC/SDXC x 1 (utility SD slot) | | A/V Outputs | Composite video (RCA) output x 1 (SD)
Analog audio L/R (RCA) output x 1 (SD)
HDMI output x 1 (HD/4K) | | USB Ports | USB 2.0 Hi-Speed (mini-B) x 1
USB 2.0 Hi-Speed Host (mass-storage type-A) x 1 | | Headphone Jack | Stereo mini-jack x 1 | | Microphone Input | XLR jacks x 2 (line/mic) | | DC Input | Yes | | Remote Terminal | LANC | | Accessory Shoe | Yes | | Battery Type | NP-F970 | | Power Requirements | 7.2 V (battery pack)
12.4 V (AC adapter) | | Power Consumption | Viewfinder (4K): 14.2 W (30p / 60 Mbps)
Viewfinder (HD): 15.4 W (60p / 50 Mbps)
LCD (4K): 14.5 W (30p / 60 Mbps)
LCD (HD): 15.7 W (60p / 50 Mbps) | | Dimensions (WxHxD) | 7.44 x 7.6 x 14.25" (189 x 193 x 362 mm) including NP-F970 battery | | Weight | 5.38 lb (2.44 kg) camera only
6.1 lb (2.77 kg) camera and NP-F970 battery | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 17.7 x 13.0 x 11.2" | |
The user manual for the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1 can be downloaded in .pdf
format if it did not come with your new camcorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony camcorderss,
where you can use our link to download the user manual for the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1.
The user manual lists all of the functions of the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1,
all the basic and advanced features and tells you how to use the camcorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony FDR-AX1 Digital 4K Video Camera Recorder FDR-AX1. User manuals are also
available on the Sony website under Professional Video - Professional Camcorders - Camcorders.
