User manual Sony FDR-AX100 4K Camcorder Basic Kit

Operating instructions and pdf manual for use - Sony FDR-AX100 4K Camcorder Basic Kit User manual, User manual Sony FDR-AX100 4K Camcorder Basic Kit, Sony, FDR-AX100, 4K, Camcorder, Basic, Kit, Video

User manual for Sony FDR-AX100 4K Camcorder Basic Kit

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sony FDR-AX100 4K Camcorder Basic Kit
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information

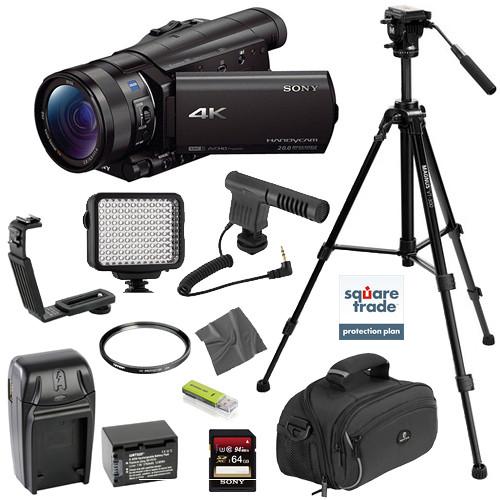

Sony FDR-AX100 4K Camcorder Basic Kit Sony FDR-AX100 4K Camcorder Basic Kit
Click to enlarge image
We recommend checking out our discussion threads on the Sony FDR-AX100 4K Camcorder Basic Kit, which address similar problems with connecting and setting up Consumer Camcorders Sony.


User manual for the Sony FDR-AX100 4K Camcorder Basic Kit

The user manual for the Sony FDR-AX100 4K Camcorder Basic Kit provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

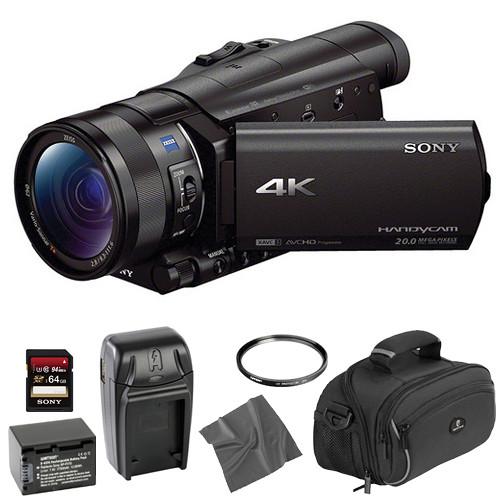

This B&H Kit is assembled to provide you with a basic, but well-outfitted, shooting kit built around the Sony FDR-AX100 4K Camcorder. Included with the basic kit is a Sony 64GB media card, a Watson NP-FV70-type battery and charger, a Pearstone Onyx soft sided shoulder bag, a Tiffen 62mm UV Filter and a microfiber cleaning cloth.

The Sony FDR-AX100 captures UHD 4K at 30 fps to SD/SDHC/SDXC media cards or Memory Stick XC-HG Duo / PRO Duo (Mark 2) memory cards. It features an integrated 12x optical zoom lens and a 3.5" flip out touch panel LCD viewscreen. A media card is required to capture images, and the included 64GB SDXC card allows you to start recording immediately. The included Watson battery is a good companion for the battery that comes with your camera, while the UV filter protects your images from UV haze and offers protection to the front element of your lens. A microfiber cleaning cloth is useful for keeping your optics clean, and the soft-sided shoulder bag allows you to transport and store your camera package.
If you own a Sony consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony FDR-AX100 4K Camcorder Basic Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony FDR-AX100 4K Camcorder Basic Kit:
Specifications
  • Sony FDR-AX100 4K Ultra HD Camcorder
    Camera
    Sensor 1 x 1" Back-illuminated Exmor R CMOS Sensor
    Processor BIONZ X
    Color Filter System RGB
    Pixel Gross Approx. 20.9 million pixels
    Optics
    Lens Type Carl Zeiss Vario Sonnar T*
    35mm Equivalent Focal Length 29 to 348mm
    Maximum Aperture 2.8 - 4.5
    Aperture Blade 7 blades
    Minimum Focus Distance Wide: 0.4" (1.0 cm)
    Telephoto: 39.4" (100.0 cm)
    Zoom Optical: 12x
    Clear Zoom: 18x (4K), 24x (HD)
    Digital: 160x
    Filter Size 62 mm
    ND Filters OFF, 1/4, 1/16, 1/64
    Recording
    System NTSC
    Recording Media Memory Stick Pro Duo (Mark 2)
    Memory Stick XC-HG Duo
    SD/SDHC/SDXC: Class 4 or higher; class 10+ SDXC card required for recording XAVC S, SDXC UHS-1 U3 or higher card required for 4K 100 Mb/s recording
    Video Format UHD 4K
    XAVC S
    3840 x 2160p / 30 fps
    3840 x 2160p / 24 fps

    High Definition
    XAVC S
    1920 x 1080 / 60 fps
    1920 x 1080 / 30 fps
    1920 x 1080 / 24 fps
    AVCHD
    1920 x 1080p / 60 fps
    1920 x 1080p / 24 fps
    1920 x 1080i / 60 fps
    1440 x 1080i / 60 fps

    MP4
    1280 x 720p / 30 fps
    Aspect Ratio 16:9
    4:3
    Slow Motion 120 fps
    Still Image Resolution Max Effective Resolution: 20 Megapixel

    JPEG: 14.1 Megapixel, 5024 x 2824 (16:9)
    JPEG: 15 Megapixel, 4464 x 3352 (4:3)
    Microphone Built-in Zoom Microphone (stereo)
    Audio Format MPEG-4 Linear PCM 2ch 48kHz/16bit (XAVC S 4K only)
    Dolby Digital 2ch
    Dolby Digital 5.1ch
    Dolby Digital 5.1 Creator (AVCHD only)
    Dolby Stereo Creator (AVCHD only)
    Microphone Level Control 31 steps
    Display
    Display Type LCD
    Touchscreen Yes
    Screen Size (Diagonal) 3.5"
    Pixel Count 921,000
    Aspect Ratio 16:9
    Rotation Opening Angle: 90°
    Turning Angle: 270°
    Viewfinder
    Screen Size (Diagonal) 0.39"
    Features
    Image Stabilization Optical SteadyShot with Active mode (Wide to Tele)
    Shutter Speed Not specified by manufacturer
    White Balance Modes Auto
    Indoor
    Kelvin temperature
    Onepush
    Outdoors
    Creative Effects Yes
    Built-in Mic Yes
    Built-in Speaker Yes, monaural
    Wi-Fi 802.11b/g/n
    NFC Yes
    Accessory Shoe 1x Multi Interface Shoe
    Manual Controls Assignable dial:
    Exposure
    AE Shift
    WB Temperature
    WB B-A
    WB G-M Set
    Tripod Mount 1/4"
    Input/Output Connectors
    Inputs 1x 1/8" (3.5mm) Stereo Input (Jack)
    Outputs 1x HDMI D (Micro)
    1x Composite Video (out)
    1x USB 2.0
    1x Bravia Sync
    1x 1/8" (3.5mm) Stereo Output (Jack)
    Microphone Input Yes
    Headphone Jack Yes
    General
    Languages Brazilian Portuguese
    Canadian French
    English
    Spanish
    Battery NP-FV70 Rechargeable Lithium-Ion Battery Pack
    6.8-7.2 VDC
    1960 mAh
    Charging Method AC adapter
    USB
    Power Adapter 5.0 VDC
    Dimensions 3.5 x 3.3 x 8.8" / 9.0 x 8.4 x 22.4 cm
    Weight Approx. 32.3 oz / 915 g (with NP-FV70 battery)
    Packaging Info
    Box Dimensions (LxWxH) 9.6 x 6.7 x 5.5"
  • Sony 64GB UHS-I SDXC Memory Card (Speed Class 3)
    Card Type SDXC
    Storage Capacity 64 GB
    Speed Class 10
    UHS Speed Class U1
    Speed (X-rating) Not Specified By Manufacturer
    Bus Interface Speed UHS Class I
    Data Transfer Read Speed 94 MB/s Maximum
    Write Speed 45 MB/s Maximum
    Durability Dustproof, Magnet-Proof, Shockproof, Static Proof, Temperature Extremes, UV Light Resistant, Waterproof, X-Ray Proof
    Insertion/Removal Cycles Not Specified By Manufacturer
    Operating Temperature -13 to 185°F/ -25 to 85°C
    Storage Temperature Not Specified By Manufacturer
    Error Correction Not Specified By Manufacturer
    Built-in Write-Protect Switch Yes
    Wireless Capability None
    File System exFAT
    RoHS Compliant Not Specified By Manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 4.0 x 2.3 x 0.2"
  • Watson NP-FV70 Lithium-Ion Battery Pack (7.4V, 1750mAh)
    Chemistry Lithium-ion
    Capacity 1750 mAh
    Watt Hours 12.95 Wh
    Output Voltage 7.4 V
    Dimensions 1.8 h x 1.25 w x 1.44" (4.6 x 3.1 x 3.6 cm)
    Weight 3 oz (85 g)
    Packaging Info
    Box Dimensions (LxWxH) 5.4 x 3.1 x 1.7"
  • Watson Compact AC/DC Charger for P, H & V Series Batteries
    Power Input 100-240 VAC, 50/60 Hz, 100 mA (max), 12/24 VDC
    Power Output 4.2-8.4 VDC, 800 mA (max)
    Additional Output USB 2.0, 5 VDC, 1 A (max), for charging USB devices
    Charging Time 2-6 hours
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions 2 x 1.3 x 3.5" (5.1 x 3.3 x 9 cm)
    Weight 3.1 oz (88 g)
    Packaging Info
    Box Dimensions (LxWxH) 4.2 x 4.0 x 2.0"
  • Pearstone Onyx 1040 Digital Camera/Camcorder Shoulder Bag
    Material Exterior: 600 denier weather-resistant ballistic nylon
    Interior: Velveteen lined
    Interior: EPE foam
    Type of Closure Self-healing, weather-resistant zippers with metal pull tabs
    Exterior Dimensions 6.5 x 9.6 x 6.3" (16.5 x 24.5 x 16cm) (HxWxD)
    Interior Dimensions 4.0 x 8.66 x 4.5" (10 x 22 x 11.5m) (HxWxD)
    Tripod Holder No
    Accommodates Digital video camcorders or digital still cameras and accessories
    Carrying/Transport Options Shoulder strap with pad
    Padded carry handle
    Weight 14.1 oz (400g)
    Packaging Info
    Box Dimensions (LxWxH) 10.0 x 6.1 x 5.7"
  • Tiffen 62mm UV Protector Filter
    Type UV/protection
    Size 62 mm
    Grade UV
    Filter Factor 0
    Effect Absorbs UV rays and reduces bluish cast from daylight
    Construction ColorCore technology
    Front Filter Thread Size 62 mm
    Front Lens Cap Size 62 mm
    Packaging Info
    Box Dimensions (LxWxH) 6.0 x 5.0 x 1.0"
  • Pearstone Microfiber Cleaning Cloth, 18% Gray (7 x 7.9")
    Dimensions (LxW) 7 x 7.9" (178 x 200mm)
    Packaging Info
    Box Dimensions (LxWxH) 3.8 x 3.3 x 0.2"
The user manual for the Sony FDR-AX100 4K Camcorder Basic Kit can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony consumer camcorderss, where you can use our link to download the user manual for the Sony FDR-AX100 4K Camcorder Basic Kit.

The user manual lists all of the functions of the Sony FDR-AX100 4K Camcorder Basic Kit, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony FDR-AX100 4K Camcorder Basic Kit. User manuals are also available on the Sony website under Camcorders - Consumer Camcorders.
