User manual for the Sony FDR-AX100 4K Ultra HD Camcorder FDRAX100/B

The user manual for the Sony FDR-AX100 4K Ultra HD Camcorder FDRAX100/B provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

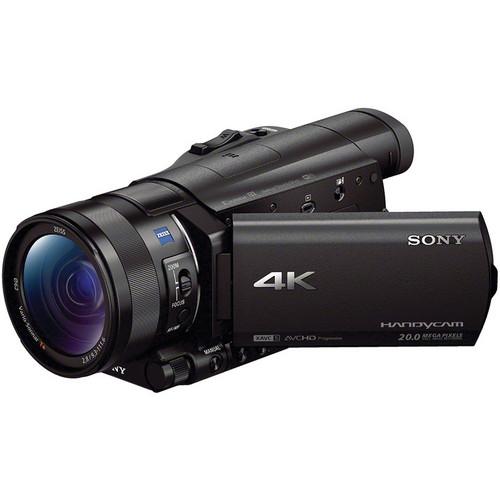

The black Sony FDR-AX100 Full HD Camcorder brings 4K Ultra HD video to the palm of your hand, delivering resolution four times that of Full HD. The 1" Exmor R CMOS sensor is approximately 8x larger than that of typical camcorders, allowing you to capture cinematic images with shallow depth-of-field for defocused backgrounds. The camcorder features a wide-angle Zeiss Vario Sonnar T* lens with 12x optical zoom plus 24x Clear Image digital zoom. Optical SteadyShot image stabilization with Active Mode delivers smooth video, and 3-Way-Shake-Canceling adds electronic roll stability for even smoother results.

The FDR-AX100 is a versatile camcorder that lets you capture 4K Ultra HD 3840x2160 video at 24 and 30 fps. You can also record Full HD 1920x1080 video in XAVC S, AVCHD, or web-optimized MP4, as well as take high-quality 20 MP still images. Media is recorded to SD or Memory Stick Duo memory cards. For X-AVC S recording, SDXC Class 10 cards are required.

Frame your shots using either the large 3.5" XtraFine LCD touchscreen, or with the high-contrast 0.39" OLED EVF. For connectivity, the camcorder provides a USB 2.0 port, Micro HDMI output, and a Composite Video output. Built-in Wi-Fi and NFC support lets you use your smartphone or tablet to control the camera, as well as wirelessly transfer files to your mobile device for sharing, and back up data on your computer.

A rechargeable lithium-ion battery pack, AC adapter, power cord, HDMI Micro cable, and a USB connection support cable come included. Also included are a lens hood, lens cap, and RMT-835 Remote Commander with battery.
If you own a Sony consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony FDR-AX100 4K Ultra HD Camcorder FDRAX100/B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony  FDR-AX100 4K Ultra HD Camcorder FDRAX100/BDownload user manual for Sony FDR-AX100 4K Ultra HD Camcorder FDRAX100/B
(PDF file, 0.83 MB)
Additional parameters of the Sony FDR-AX100 4K Ultra HD Camcorder FDRAX100/B:
Specifications
    Camera
    Sensor 1 x 1" Back-illuminated Exmor R CMOS Sensor
    Processor BIONZ X
    Color Filter System RGB
    Pixel Gross Approx. 20.9 million pixels
    Optics
    Lens Type Carl Zeiss Vario Sonnar T*
    35mm Equivalent Focal Length 29 to 348mm
    Maximum Aperture 2.8 - 4.5
    Aperture Blade 7 blades
    Minimum Focus Distance Wide: 0.4" (1.0 cm)
    Telephoto: 39.4" (100.0 cm)
    Zoom Optical: 12x
    Clear Zoom: 18x (4K), 24x (HD)
    Digital: 160x
    Filter Size 62 mm
    ND Filters OFF, 1/4, 1/16, 1/64
    Recording
    System NTSC
    Recording Media Memory Stick Pro Duo (Mark 2)
    Memory Stick XC-HG Duo
    SD/SDHC/SDXC: Class 4 or higher; class 10+ SDXC card required for recording XAVC S, SDXC UHS-1 U3 or higher card required for 4K 100 Mb/s recording
    Video Format UHD 4K
    XAVC S
    3840 x 2160p / 30 fps
    3840 x 2160p / 24 fps

    High Definition
    XAVC S
    1920 x 1080 / 60 fps
    1920 x 1080 / 30 fps
    1920 x 1080 / 24 fps
    AVCHD
    1920 x 1080p / 60 fps
    1920 x 1080p / 24 fps
    1920 x 1080i / 60 fps
    1440 x 1080i / 60 fps

    MP4
    1280 x 720p / 30 fps
    Aspect Ratio 16:9
    4:3
    Slow Motion 120 fps
    Still Image Resolution Max Effective Resolution: 20 Megapixel

    JPEG: 14.1 Megapixel, 5024 x 2824 (16:9)
    JPEG: 15 Megapixel, 4464 x 3352 (4:3)
    Microphone Built-in Zoom Microphone (stereo)
    Audio Format MPEG-4 Linear PCM 2ch 48kHz/16bit (XAVC S 4K only)
    Dolby Digital 2ch
    Dolby Digital 5.1ch
    Dolby Digital 5.1 Creator (AVCHD only)
    Dolby Stereo Creator (AVCHD only)
    Microphone Level Control 31 steps
    Display
    Display Type LCD
    Touchscreen Yes
    Screen Size (Diagonal) 3.5"
    Pixel Count 921,000
    Aspect Ratio 16:9
    Rotation Opening Angle: 90°
    Turning Angle: 270°
    Viewfinder
    Screen Size (Diagonal) 0.39"
    Features
    Image Stabilization Optical SteadyShot with Active mode (Wide to Tele)
    Shutter Speed Not specified by manufacturer
    White Balance Modes Auto
    Indoor
    Kelvin temperature
    Onepush
    Outdoors
    Creative Effects Yes
    Built-in Mic Yes
    Built-in Speaker Yes, monaural
    Wi-Fi 802.11b/g/n
    NFC Yes
    Accessory Shoe 1x Multi Interface Shoe
    Manual Controls Assignable dial:
    Exposure
    AE Shift
    WB Temperature
    WB B-A
    WB G-M Set
    Tripod Mount 1/4"
    Input/Output Connectors
    Inputs 1x 1/8" (3.5mm) Stereo Input (Jack)
    Outputs 1x HDMI D (Micro)
    1x Composite Video (out)
    1x USB 2.0
    1x Bravia Sync
    1x 1/8" (3.5mm) Stereo Output (Jack)
    Microphone Input Yes
    Headphone Jack Yes
    General
    Languages Brazilian Portuguese
    Canadian French
    English
    Spanish
    Battery NP-FV70 Rechargeable Lithium-Ion Battery Pack
    6.8-7.2 VDC
    1960 mAh
    Charging Method AC adapter
    USB
    Power Adapter 5.0 VDC
    Dimensions 3.5 x 3.3 x 8.8" / 9.0 x 8.4 x 22.4 cm
    Weight Approx. 32.3 oz / 915 g (with NP-FV70 battery)
    Packaging Info
    Package Weight 3.55 lb
    Box Dimensions (LxWxH) 9.6 x 6.7 x 5.5"
    Item Demo
