User manual Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W

Operating instructions and pdf manual for use - Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W User manual, User manual Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W, Sony, HDR-AZ1VR, Action, Cam, Mini, with, Live

User manual for Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.
Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Camcorders - Sports & Action Cameras
  • Safety instructions
  • Startup and operation of the sports & action cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W, which address similar problems with connecting and setting up Sports & Action Cameras Sony.


User manual for the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W

The user manual for the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

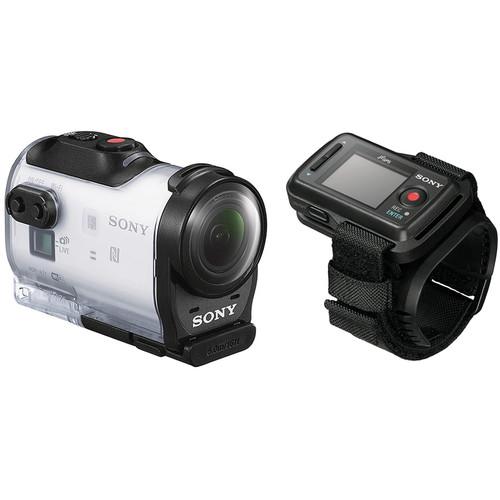

The splashproof HDR-AZ1VR Action Cam Mini with Live View Remote Watch from Sony is designed for capturing POV footage of adventures of all kinds. It features 1080p60 recording in the lower-compression XAVC S format at 50 Mbps and also offers a more compressed MP4 mode for extending recording times or to yield a file suitable for Web upload. In addition to video, it also takes 11.9-megapixel still photos with the option for single shot, burst shooting at up to 8 fps, and interval recording for creating time-lapse effects.

The camera itself is inherently water-resistant for use in the rain, snow, or situations where it might get splashed. For use in the water, it features the SPK-AZ1 waterproof housing which can be submerged safely as deep as 16'. Both the camera and the housing are adaptable to a wide range of mounting hardware. A universal 1/4"-20 tripod adapter and an adhesive mount are included and there are a number of separately available mounts that can be used with this camera and other members of the Action Cam line.

The HDR-AZ1VR features Wi-Fi for live-viewing and remote operation using a smartphone or other mobile device, or the included RM-LVR2 Live View Remote Watch. It is also possible to live stream to the Internet when the camera is tethered to a mobile device that has an Internet connection. There camera records to SDHC or SDXC memory cards (XAVC S requires SDXC) and there is a micro-USB port for transferring data to a computer as well as charging.
If you own a Sony sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/WDownload user manual for Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W
(PDF file, 2.63 MB)
Additional parameters of the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W:

Go To

Camera
Sensor 1x 16.8 Megapixel 1/2.3"  CMOS Sensor
Backside Illumination Yes
Color Filter RGB
Effective Pixels 11.9 @ Photo 16:9 (Image Stabilizer Off)
Optics
35mm Equivalent Focal Length 17.1 with SteadyShot OFF on in Interval Photo Mode
21.8 with SteadyShot ON
Maximum Aperture f/ 2.8
Focal Distance 2.8 mm
Focusing Distance 11.9" / 30.0 cm
Angle of View 170° (with SteadyShot OFF on in Interval Photo Mode)
120° (with SteadyShot ON)
Zoom None
Recording
System NTSC/PAL
Recording Media microSD/HC/XC

MP4 requires Class for or higher; XAVC S requires an SDXC (Class 10) card
Video Format High Definition
XAVC S
1920 x 1080p / 60 fps (50 Mbps)
1920 x 1080p / 50 fps (50 Mbps)
High Definition
XAVC S
1920 x 1080p / 30 fps (50 Mbps)
1920 x 1080p / 25 fps (50 Mbps)
1920 x 108p / 24 fps (50 Mbps)
High Definition
MP4
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080p / 50 fps (28 Mbps)
High Definition
MP4
1920 x 1080p / 30 fps (16 Mbps)
1920 x 1080p / 25 fps (16 Mbps)
High Definition
MP4
1280 x 720p / 30 fps (6 Mbps)
1280 x 720 / 25 fps (6 Mbps)
Standard Definition
MP4
640 x 480p / 30 fps (3 Mbps)
640 x 480p / 25 fps (3 Mbps)
Aspect Ratio 16:9
4:3
Slow Motion Mode 120 fps recorded @ 1280 x 720p
100 fps recorded @ 1280 x 720p
Still Image Resolution JPEG: 11.9 Megapixel, 4608 x 2592 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)

2.1 MP mode used for interval recording
Channels 2.0-Channel Stereo
Audio Format AAC-LC
LPCM

AAC-LC for MP4 mode; LPCM for XAVC S mode
Display
Display Type Status Display
Exposure Control
Shutter Speed 1/30-1/10000 sec

At 30 fps setting
Interval Recording 1 sec
2 sec
5 sec
10 sec
30 sec
60 sec
Features
Image Stabilization Digital
Scene Modes Preset: Yes
Waterproof Depth Rating 16.0' / 5.0 m (Waterproof Housing)
Lux 6 (at 1/30 second shutter speed)
Built-in Mic Yes
Built-in Speaker Yes
Wi-Fi Yes, 802.11b/g/n

Supports NFC pairing
Tripod Mount 1/4" - 20

Via supplied adapter
Input/Output Connectors
Outputs 1x USB Micro-B
General
Battery Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 640 mAh
Charging Method USB
Charging Time 2.5 hours
Power Consumption Operating:1.7 W
Operating Temperature 23 - 104°F (-5 - 40°C)
Dimensions (WxHxD) 1.0 x 1.4 x 2.9" / 24.2 x 36.0 x 74.0 mm
Weight 1.69 oz / 48 g without battery
2.22 oz / 63 g with battery
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 10.3 x 5.1 x 3.2"
The user manual for the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony sports & action camerass, where you can use our link to download the user manual for the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W.

The user manual lists all of the functions of the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony HDR-AZ1VR Action Cam Mini with Live View Remote HDRAZ1VR/W. User manuals are also available on the Sony website under Camcorders - Sports & Action Cameras.
