User manual for the Sony LMD-A220 22" LCD Production Monitor LMD-A220

The user manual for the Sony LMD-A220 22" LCD Production Monitor LMD-A220 provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

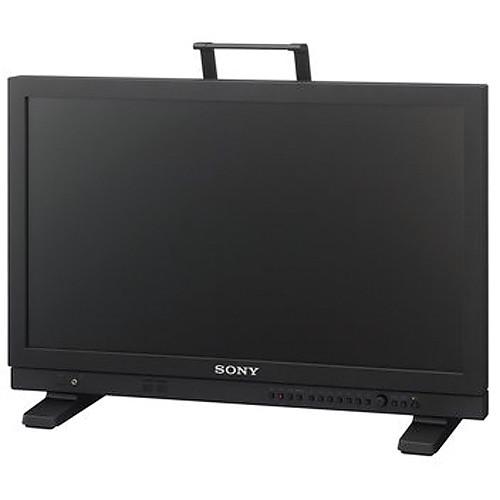

The Sony LMD-A220 22" LCD Production Monitor is a portable, 1920 x 1080 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.

The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.

A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. Two Ethernet ports provide connectivity for serial and parallel remotes; letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.

The monitor is compatible with standard VESA 100 x 100mm mounting hardware. Optional rack mount brackets are also available. Monitor feet and a handle are included.
If you own a Sony production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony LMD-A220 22" LCD Production Monitor LMD-A220 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony LMD-A220 22" LCD Production Monitor LMD-A220:
Specifications
    Panel/Display
    Type IPS LCD
    Backlight Technology LED
    Screen Size (Diagonal) 21.5" (54.6 cm)
    Effective Picture Size (H x V) 18.74 x 10.54" (47.61 x 26.78 cm)
    Resolution 1920 x 1080
    Native Aspect Ratio 16:9
    Viewing Angle (H/V) 178° / 178°
    Normal Scan 0% scan
    Color Temperature D65, D93
    Warm-Up Time Approx. 30 minutes
    Input
    Video Input 2 x BNC, 3G/HD/SD-SDI
    1 x HDMI, HDCP compliant
    1 x BNC, Composite (NTSC/PAL)
    Audio Input 1 x Stereo mini jack, -5 dBu 47 kohm or higher
    Power Input 1 x XLR 4-pin (male), 12 to 17 VDC (output impedance 0.05 ohm or less)
    Remote Control 1 x Parallel remote, RJ-45 modular connector 8-pin
    1 x Serial remote, RJ-45 modular connector (ETHERNET, 10BASE-T/100BASE-TX)
    Output
    Video Output 2 x BNC, 3G/HD/SD-SDI, Output signal amplitude: 800 mVp-p ±10%
    Output impedance: 75 ohm unbalanced

    1 x BNC, Composite (NTSC/PAL) loop-though, 75 ohm automatic terminal function
    Audio Output 1 x Stereo mini jack, audio monitor output
    1 x Stereo mini jack, headphone output
    1 x 1.0 W monaural speaker
    Video Signals
    Formats 3G-SDI (10-bit 4:4:4 YCbCr and 4:4:4 RGB supported)
    1080PsF 24/25/30
    1080p 24/25/30/
    1080i 50/60
    720p 50/60

    3G-SDI (10-bit 4:2:2 YCbCr supported)
    1080p 50/60

    HD/SD-SDI
    1080PsF 24/25
    1080p 24/25/30
    1080i 50/60
    720p 24/25/30/50/60
    575/50i (PAL)
    480/60i (NTSC)

    HDMI
    1080p 24/25/30/50/60
    1080i 50/60
    720p 50/60
    640x480/60p
    576/50p
    480/60p
    575/50i (PAL)
    480/60i (NTSC)

    Note: 1080/25PsF, 30PsF are displayed as 1080/25PsF, 30PsF on the screen if the payload ID is added to the video signal, or displayed as 1080/50i, 60i if the ID is not added.
    PC Signal Compatibility HDMI input:
    640 x 480: 25.175 MHz, fH 31.5 kHz, fV 60 Hz
    1280 x 768: 68.25 MHz, fH 47.4 kHz, fV 60 Hz
    1280 x 1024: 108 MHz, fH 64 kHz, fV 60 Hz
    1360 x 768: 85.5 MHz, fH 47.7 kHz, fV 60 Hz
    1440 x 900: 88.75 MHz, fH 55.5 kHz, fV 60 Hz
    1680 x 1050: 119 MHz, fH 64.7 kHz, fV 60 Hz
    General
    Power 100 to 240 VAC, 0.5 to 0.4 A, 50/60 Hz
    12 to 17 VDC (4-pin XLR)
    Power Consumption Approx. 47 W (max.)
    Approx. 43 W (average power consumption in the default status)
    Inrush Current Maximum possible inrush current at initial switch-on (voltage changes caused by manual switching):
    45 a peak, 5 A r.m.s (240 VAC)

    Inrush current after a mains interruption of 5 seconds (voltage changes caused at zero-crossing):
    15 A peak, 3 A r.m.s. (240 VAC)
    Operating Temperature 32 to 95°F (0 to 35°C)

    Recommended temperature: 68 to 86°F (20 to 30°C)
    Operating Humidity 30 to 85% (no condensation)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Storage Humidity 0 to 90%
    Pressure Tolerance 700 hPa to 1060 hPa
    VESA Mounting 100 x 100 mm
    Dimensions (H x W x D) Without feet: 13.3 x 20.4 x 2.6" (338.0 x 517.8 x 67.2 mm)
    With feet: 14.2 x 20.4 x 6.5" (360.5 x 517.8 x 165.0 mm)
    Weight Approx. 11.9 lb (5.4 kg)
    Packaging Info
    Package Weight 15.8 lb
    Box Dimensions (LxWxH) 24.0 x 18.9 x 10.5"
