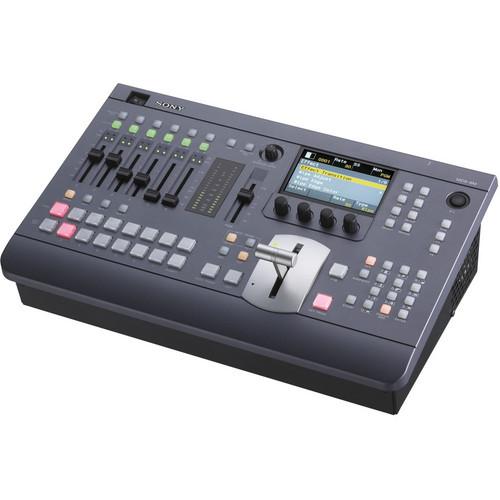

Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Production Switchers
  • Safety instructions
  • Startup and operation of the production switchers
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M, which address similar problems with connecting and setting up Production Switchers Sony.



User manual for the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M

The user manual for the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

The MCS8M Compact Audio Video Mixing Switcher from Sony is an A/V switcher with an integrated audio mixer and frame synchronizer. A user-friendly device, it boasts numerous preset DME wipe patterns, a built-in multi-viewer, single-channel frame memory output, and an Input Freeze function for every source. It also features the ability to import still images using a USB port, plus a 3D Mode function, six-channel audio mixer, AUX MIX and more! Designed for easy, intuitive operation, the MCS8M contains tools ideal for content creation and event programming. Here is a powerful, versatile and affordable switcher, great for small live productions, church presentations, school sports, corporate events, weddings, fly packs, music videos, conferencing and more.
If you own a Sony production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony MCS8M Compact Audio Video Mixing Switcher MCS-8MDownload user manual for Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M
(PDF file, 3.91 MB)
Additional parameters of the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M:
Video Formats HD mode: HD 1080 / 59.94i, 1080 / 50i, 720 / 59.94p, 720 / 50p
SD mode: SD 480 / 59.94i, 576 / 50i
Video Input HD mode:
4x HD-SDI: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
3x HDMI (Type A)
1x DVI-I: SXGA, WXGA, XGA, HDTV60 (1080 / 60p), HDTV50 (1080 / 50p) with Frame Synchronizer
SD mode:
4x SD-SDI: BNC
3x Composite: BNC
1x DVI-I: SXGA, WXGA, XGA with Frame Synchronizer

Accepts either HD or SD video signal inputs; cannot have mixed inputs.
Does not support HDCP; cannot output HD content during playback in Blu-ray player

Video Output HD mode:
4x HD-SDI: 1x PGM, 2x AUX, 1x Multi Viewer: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
1x Multi Viewer DVI-D (WUXGA, HDTV, SXGA, WXGA, XGA)
1x AUX DVI-D
SD mode:
4x SD-SDI: 1x PGM, 2x AUX, 1x Multi Viewer: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
1x Multi Viewer DVI-D (SXGA, WXGA, XGA)
1x AUX DVI-D
1x Composite (AUX): BNC

Multi Viewer SDI and Multi-Viewer DVI-D output the same layout

Audio Input 4x SDI (Embedded)
3x HDMI (Embedded)
2x MIC / LINE (XLR / TRS combo: Balance)
4x MIC / LINE (TRS phone: Balance)
2x LINE (Phono jack: Unbalance)
Audio Output 3x SDI (Embedded)
2x PGM (XLR: Balance)
2x AUX (TRS phone: Balance)
2x MON (TRS phone: Balance)
2x MIX (Phono jack: Unbalance)
1x Headphone (standard stereo)
Delay Audio Delay Adjustment up to 7.5 frames

Separately applied to PGM, AUX1 and AUX2

Monitoring Audio monitoring function:
Selected audio channel
PGM, AUX1, AUX2 or MIX
Reference Input HD mode:
Analog black burst or Tri-level sync, loop through 75 Ω: BNC
SD mode:
Analog black burst, loop through 75 Ω: BNC
Reference Output HD mode: Analog black burst or Tri-level sync, 75 Ω: BNC
SD mode: Analog black burst, 75 Ω: BNC
USB 1x Type A
Remote 1x RS-232C: D-sub 9-pin (for switcher control from external devices)
GPI Output 1x D-sub 15-pin
Controls Power switch
6x Channel faders
6x Channel on buttons
6x Audio Access / PFL (pre fader listen) buttons
6x Peak indicators
6x Input signal indicators
Dim button
Audio monitor selection button
Audio monitor level adjustment knob
2x Audio level meters
Program fader
Menu display
4x Adjustment knobs
USB connector
8x Menu selection buttons
X-Y pointer
Position button
10x Numeric buttons
Enter button
Direct / Escape button
Store button
Snapshot button
Effect button
Key transition button
Fade-to-black button
Fader lever
Cut button
Auto-transition button
2x Transition type selection buttons
2x Next transition selection buttons
4x Bus delegation buttons
8x Program cross-point buttons
8x Preset / KEY cross-point buttons
Effect Transition (Fader, AUTO): MIX, WIPE, DME WIPE (including P in P) CUT
DSK Chroma key, Luminance key, Linear Key
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Power Consumption 100 V: 0.7 A, 240 V: 0.3 A
Operating Temperature 41 - 104° F (5.0 - 40° C)
Dimensions 16.6 x 4.9 x 10.5" (42.2 x 12.4 x 26.7 cm)
Weight 13.25 lb (6.01 kg)
Packaging Info
Package Weight 15.35 lb
Box Dimensions (LxWxH) 21.0 x 15.12 x 10.14"
The user manual for the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony production switcherss, where you can use our link to download the user manual for the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M.

The user manual lists all of the functions of the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony MCS8M Compact Audio Video Mixing Switcher MCS-8M. User manuals are also available on the Sony website under Professional Video - Studio & EFP Equipment - Production Switchers.
