User manual for Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
- Manufacturer: Sony
- Basic description and contents of package
- Product classification: Professional Video - Digital Cine Cameras
- Safety instructions
- Startup and operation of the digital cine cameras
- Tips for setting up your Sony
- Settings and expert assistance
- Contact Sony service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H,
which address similar problems with connecting and setting up Digital Cine Cameras Sony.
|
User manual for the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H
The user manual for the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

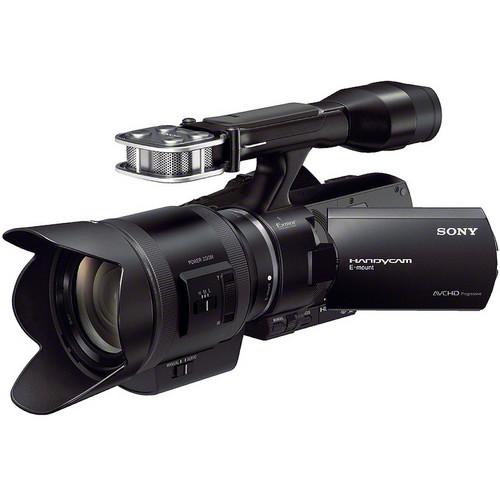

The Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power Zoom Lens is an interchangeable lens camera for cinematic video and DSLR quality photographs, featuring a 16.1MP Exmor APS-C sized CMOS sensor, an XGA OLED Tru-Finder EVF, a Quad Capsule Spatial Array Microphone, a BIONZ image processor and the Sony E-mount for Sony E-Mount lenses. NEX-VG30 presents a significant upgrade from Sony's NEX-VG20, adding a seesaw lever for power zoom, a Multi Interface shoe, a much improved electronic viewfinder, Picture Effects and the option for an external XLR adapter (sold separately).
|
If you own a Sony digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H:
| Sensor | Exmor APS HD CMOS sensor (23.5 x 15.6 mm) | | Resolution | 16.7 MP | | Color Filter | RGB | | Crop Factor | 1.5x | | Lens Mount | Sony E-Mount | | Processor | BIONZ image processor | | Drive System | Shutter: electronically-controlled, vertical-traverse, focal-plane type
Auto Shutter Speeds: 1/48-1/10000 (movie: 24p), 1/60-1/10000 (movie: other), 30s-1/4000 (Still)
Manual Shutter Speeds: 1/3-1/10000 (movie: 24p), 1/4-1/10000 (movie: other), 30s-1/4000 (Still)
Continuous Shooting Speed: 6 fps
Drive Mode (Photo Mode): Single-shot/Continuous/Bracket 0.3EV/Bracket 0.7EV
Drive Mode (Self-timer): Approx. 10 sec. (Still Image) | | Focus Control | Focus System: contrast AF
Focus Area: 25 point AF
Focus Features: tracking focus
Focus Sensitivity: 0 - 20 EV (ISO 100 at f/2.8)
Manual Focus Assist: magnified display, peaking display | | Flash | Flash Type: multi interface shoe (flash unit not included)
Flash Metering System: Pre-flash TTL
Flash Modes: Auto/Forced/Slow Sync./Rear Sync./Prohibited
Flash Compensation: +/-2EV, 1/3EV step | | Digital Zoom | x2 | | Gain Control | Auto/manual (0 - 30dB) | | Metering | Still Mode Only: 63 segment metering from CMOS image sensor
Metering Modes (still mode only): multi-segment and touch spot
Metering Sensitivity (still mode only): 0 - 20EV (ISO 100 at f/2.8) | | Minimum Illumination | 9 lux (1/60 shutter speed f/3.5) | | White Balance Modes | Auto/Onepush/Outdoor/Indoor/WB Temp | | Kit Lens | E PZ 18-200 mm f/3.5-6.3 OSS(SELP18200) | | Recording Media | 1 slot (Memory Stick Duo or SD/SDHC/SDXC) | | File Formats | HD Video: AVCHD 2.0 (MPEG-4 AVC (H.264))
SD Video: MPEG2-PS
Audio: Dolby Digital 5.1, Dolby Digital 2ch Stills: JPEG, RAW, JPEG+RAW | | Video Signal | HD:HDTV 1080/60p, 24p, 60i; STD:NTSC color, EIA standards | | Still Image | Resolution: 16MP (4912 x 3264), 7.1MP (3568 x 2000), 4MP (2448 x 1624), 2.1MP (1920 x 1080), 307K (640 x 480), 230K (640 x 360) | | HD Video Output | HDMI (mini) | | SD Outputs | Composite Video Out (A/V connecting cable supplied)
Component Video Out (Component A/V cable supplied)
S Video Out (A/V connecting cable with S Video sold separately) | | USB | mini-AB/USB 2.0 Hi-speed (mass-storage/MTP) | | Power | DC input | | Audio | Headphone jack (stereo minijack)
Microphone input (stereo minijack) | | Shoe Mounts | Multi interface hot shoe (x1)
Cold shoe (x1) | | LCD Monitor | Type: 3.0" Xtra Fine touchscreen LCD with 921K dots and TruBlack technology
Max Opening Angle: 90°
Max Turning Angle: 270° | | EVF | High contrast XGA OLED Tru-Finder with 2359K dots and eye sensor | | Other Features | Assignable Dial, Tracking Focus, Audio Level Display, CinemaTone Gamma/Color, x.v.Color, Face Detection, Priority Setting (for Face Detection), View & Index: Event, Anti-dust charge protection coating on filter, Power zoom control, Zoom lever, Variable zoom speed, DVDirect, Wind Noise Reduction, Mic Level Control, Picture Effects, Noise Reduction, Backlight Compensation, D-Range Optimizer, Exposure Compensation, Zebra Pattern Display, Histogram | | Power Consumption | HD: 4.2W (with SELP18200 lens), 4.6W (with viewfinder and SELP18200 lens)
SD: 4.0W (with SELP18200 lens), 4.4W (with viewfinder and SELP18200 lens) | | Power Requirement | 7.2V (battery pack), 8.4V (AC Adapter) | | Dimensions | 3.63 x 5.13 x 8.87" (91 x 130 x 223 mm) including projecting parts
4.13 x 5.63 x 11.63" (103 x 140 x 294 mm) including projecting parts, lens, lens hood, and battery | | Weight | Camcorder body only: 1.43 lb (650 g)
With the supplied lens and battery: 3.13 lb (1420 g) | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 12.7 x 8.8 x 7.5" | |
The user manual for the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H can be downloaded in .pdf
format if it did not come with your new digital cine cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony digital cine camerass,
where you can use our link to download the user manual for the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H.
The user manual lists all of the functions of the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H,
all the basic and advanced features and tells you how to use the digital cine cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony NEX-VG30 Camcorder with 18-200mm f/3.5-6.3 Power NEX-VG30H. User manuals are also
available on the Sony website under Professional Video - Digital Cine Cameras.
