User manual Sony PCM-D100 Portable Audio Recorder & Rycote Windshield

Operating instructions and pdf manual for use - Sony PCM-D100 Portable Audio Recorder & Rycote Windshield User manual, User manual Sony PCM-D100 Portable Audio Recorder & Rycote Windshield, Sony, PCM-D100, Portable, Audio, Recorder, &, Rycote, Wind


User manual for Sony PCM-D100 Portable Audio Recorder & Rycote Windshield

Sony PCM-D100 Portable Audio Recorder & Rycote Windshield
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD
We recommend checking out our discussion threads on the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield, which address similar problems with connecting and setting up Portable Digital Recorders Sony.



User manual for the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield

The user manual for the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

The black Sony PCM-D100 Portable Audio Recorder & Rycote Windshield and Suspension Kit is a B&H Kit that comes with everything you need to start making professional recordings outdoors. The kit includes the Sony PCM-D100 Portable Audio Recorder, a Rycote Windshield and Suspension Kit, 64GB SDXC memory card, monitor headphones, a storage pouch and a 4-hour rapid charger with four batteries.
If you own a Sony portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield:
Specifications

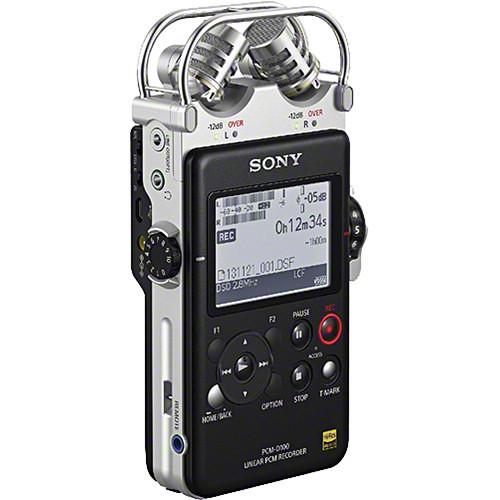

  • Sony PCM-D100 High Resolution Portable Stereo Recorder
    Built-In Microphone Type: Electret condenser microphone in X-Y configuration
    Size: 0.5" (15 mm)
    Maximum Input Level: 128 dB SPL
    Recording Format DSD (dsf): 2.8224 MHz
    WAV: 192, 176.4 kHz 24-bit, 96, 88.2, 48, 44.1 kHz 24 or 16-bit
    Playback Formats DSD (dsf, dff), WAV, FLAC, MP3, WMA, AAC
    Internal Memory 32 GB
    Memory Card Support SD, SD HC, SD XC, Memory Stick Pro Duo, Memory Stick Pro-HG Duo
    Frequency Range From Line In:
    DSD 2.8 MHz/1-bit: 20 Hz to 50 kHz (0 to -6 dB)
    LPCM 192 kHz/24-bit: 20 Hz to 45 kHz (0 to -2 dB)
    LPCM 176.4 kHz/24-bit: 20 Hz to 45 kHz (0 to -2 dB)
    LPCM 96 kHz/24 or 16-bit: 20 Hz to 40 kHz (0 to -2 dB)
    LPCM 88.2 kHz/24, 16-bit: 20 Hz to 38 kHz (0 to -2 dB)
    LPCM 48 kHz/24, 16-bit: 20 Hz to 22 kHz (0 to -2 dB)
    LPCM 44.1 kHz/24, 16-bit: 20 Hz to 20 kHz (0 to -2 dB)
    MP3 320 kbps: 20 Hz to 20 kHz (0 to -2 dB)
    MP3 128 kbps: 20-16 kHz (0 to -2 dB)
    Signal to Noise Ratio From Line In:
    DSD: 98 dB or more (1 kHz IHF-A)
    LPCM 100 dB or more (1 kHz IHF-A) when set to 24-bit, S/N 100dB on
    Maximum SPL 128 dBSPL
    Noise Level Inherent Noise Level: 19 dBSPL(A)or below
    Total Harmonic Distortion/Noise From Line In:
    DSD: 0.008% or below (1 kHz, 22 kHz LPF)
    LPCM: 0.006% or below (1 kHz, 22 kHz LPF)
    Microphone Input 1x 1/8" (3.5 mm) stereo mini, supports external mic plug-in power
    Input Impedance: 22 kΩ
    Rated Input Level: 2.5 mV; minimum input level: 0.7 mV
    Headphone Jack 1x 1/8" (3.5 mm) stereo mini
    Rated Output Level: 400 mV; maximum, output levels: 25 + 25 mW or more
    Load Impedance: 16 Ω
    Line Input Line Input Impedance: 22 kΩ
    Rated Input Level: 2.0 V
    Minimum Input Level: 450 mV
    Optical Digital Output Level: -27 dBm to -14 dBm
    Emission Wavelength: 660 nm (typical)
    Line Output Line Output Impedance: 22 kΩ
    Rated Output Level: 1.7 V
    Load Impedance: 22 kΩ
    Optical Digital Output Level: -21 dBm to -15 dBm
    Emission Wavelength: 640 nm to 680 nm
    Speaker Power Output: 200 mW
    Size: 0.63" (16 mm)
    Battery Life For Recording:
    DSD 2.8 MHz/1-bit: with monitor: 8 hours; without monitor: 12 hours (approximate)
    LPCM 192 kHz/24-bit: with monitor: 10 hours; without monitor: 18 hours (approximate)
    LPCM 96 kHz/24-bit: with monitor: 11 hours; without monitor: 22 hours (approximate)
    LPCM 44.1 kHz/16-bit: with monitor: 12 hours; without monitor: 25 hours (approximate)
    MP3 320 kbps: with monitor: 12 hours; without monitor: 25 hours (approximate)
    Recording Time
    DSD 2.8 MHz/1-bit: 10 hours, 50 minutes
    LPCM 192 kHz/24-bit: 6 hours, 35 minutes
    LPCM 176 kHz/24-bit: 7 hours, 10 minutes
    LPCM 96 kHz/24-bit, 16-bit: 13 hours, 15min; 19 hours, 50 minutes
    LPCM 88.2 kHz/24-bit, 16-bit: 14 hours, 25 minutes; 21 hours 35 minutes
    LPCM 48 kHz/24-bit, 16-bit: 26 hours, 30 minutes; 39 hours, 45 minutes
    LPCM 44.1 kHz/24-bit, 16-bit: 28 hours, 50 minutes; 43 hours, 15 minutes
    MP3 320 kbps: 190 hours
    MP3 128 kbps: 477 hours
    Power Input DC in Jack: 6V (AC 100-240 V, 50/60 Hz)
    USB USB 2.0 (micro USB)
    Dimensions (W x H x D) 2.80 x 6.10 x 1.25" (71.12 x 154.90 x 31.75 mm)
    Weight 13.9 oz (394 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.2 x 7.6 x 5.5"
  • Rycote 041119 Portable Recorder Suspension
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.6 x 3.3"
  • Rycote Extension Handle with Foam Hand Grip
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.6 x 3.3"
  • Rycote 037302 Hot Shoe 3/8" Adaptor
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.6 x 3.3"
  • Rycote Mini Windjammer for Sony PCM-D100 Recorder
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.6 x 3.3"
  • Lexar 64GB Professional 1000x UHS-II SDXC Memory Card (Class 10, UHS Speed Class 3)
    Card Type SDXC
    Storage Capacity 64 GB
    Speed Class 10
    UHS Speed Class U3
    Speed (X-rating) 1000x
    Bus Interface Speed UHS Class II
    Data Transfer Read Speed 150 MB/s Maximum
    Write Speed 30 MB/s Minimum
    Durability Not Specified By Manufacturer
    Insertion/Removal Cycles Not Specified By Manufacturer
    Operating Temperature Not Specified By Manufacturer
    Storage Temperature Not Specified By Manufacturer
    Error Correction Not Specified By Manufacturer
    Built-in Write-Protect Switch Yes
    File System Not Specified By Manufacturer
    RoHS Compliant Not Specified By Manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 4.803 x 3.937 x 0.551"
  • Senal SMH-1000 Professional Field and Studio Monitor Headphones
    Type Circumaural, closed-back
    Driver 40mm, neodymium
    Frequency Range 10 Hz - 20 kHz
    Impedance 58 Ω @ 1 kHz
    Sensitivity 102 dB ±3 dB (@ 1 kHz/mW)
    Maximum Input Power 1000 mW
    Distortion Less than 1% @ 1 kHz
    Weight 8 oz (267 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.1 x 8.8 x 3.8"
  • Senal Storage Pouch for SMH Series Headphones
    Material Leatherette
    Dimensions 9.5 x 7" (24.1 x 17.8 cm)
    Packaging Info
    Box Dimensions (LxWxH) 10.0 x 5.8 x 0.6"
  • Watson 4-Hour Rapid Charger with 4 AA NiMH Rechargeable Batteries (2300mAh)
    Charger
    Configuration 2 or 4 x AA or AAA NiMH or NiCd batteries
    Input Voltage 100-240 VAC, 50/60 Hz
    Output Voltage 2.8 VDC, 500 mAh
    Charging Time 4 AAA 1000 mAh batteries: About 200 min
    2 AAA 1000 mAh: About 100 min
    4 AA 1800 mAh: About 220 min
    2 AA 1800 mAh: About 110 min
    4 AA 2300 mAh: About 280 min
    2 AA 2300 mAh: About 140 min
    Operating Temperature 32 to 113°F (0 to 45°C)
    Dimensions 2.7 x 1.3 x 4.3" (6.9 x 3.3 x 10.9 cm)
    Weight 2.8 oz (79.4 g)
    Battery
    Quantity 4 x AA
    Chemistry Nickel-metal hydride (NiMH) rechargeable
    Capacity 2300 mAh
    Output Voltage 1.2 V
    Durability Can be recharged up to 1000 times
    Environmental Protection Mercury- and cadmium-free
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 4.3 x 1.9"
The user manual for the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony portable digital recorderss, where you can use our link to download the user manual for the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield.

The user manual lists all of the functions of the Sony PCM-D100 Portable Audio Recorder & Rycote Windshield, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.
