User manual for the Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder PDW-850
The user manual for the Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder PDW-850 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

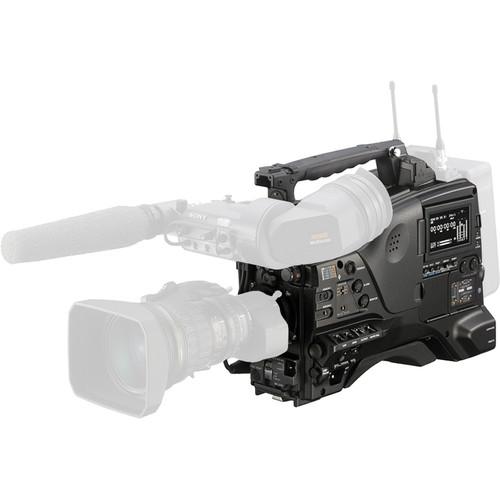

The PDW-850 XDCAM HD422 2/3" 3CCD Camera from Sony features an ENG-style shoulder mount design suitable for use in the field or can be adapted to the studio thanks to support for CCU control and a "pool feed" video input. Recording to the XDCAM professional disc format, the camera records in MPEG HD422, a broadcast-spec 50 Mbps codec with 4:2:2 color sampling. The camera can also record in MPEG HD420 for longer recording times and is able to record legacy standard definition video in DVCAM or MPEG IMX. If features a standard 2/3" B4 lens mount and the lens. Viewfinder (VF), and batteries or power source are all available separately.
The 1920 x 1080 native picture is achieved thanks to three PowerHAD FX IT CCDs. The three-chip design splits up color into its three RGB components thereby avoiding the interpolation and potential loss of detail on most single-chip designs. The camera can record at multiple frame rates up to 60p, including PAL area frame rates (50p/25p), plus several 24p implementations.
Built-in GPS means that location data can be included in the video metadata for reference later. A USB port allows proxy files to be saved to and external storage device, saving scene data so that a specific "look" can be recycled later, firmware updates, and connection of the separately available CBK-WA100 wireless adapter for remote operation and proxy file transfer.
Because the XDCAM media supports random access, it is possible to jump almost instantly to any clip selected from the thumbnail menu. At the same time, the format provides a professional grade media designed specifically for video recording to provide the same confidence one has when using a tape format. The camera supports both the PFD50DLA and PFD23A size professional discs for up to 95 minutes recording in the highest quality.
If you own a Sony camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder PDW-850 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder PDW-850:
Specifications
Image Device
3-chip, 2/3" HD PowerHAD FX CCDs
Effective Resolution
1920 x 1080
Horizontal Resolution
1000 TVL or more (1920 x 1080i mode)
Optical System
F1.4 prism system
Lens Mount
2/3" type B4 bayonet mount
Digital Extender
x2, x3, x4
Registration
0.02% or less for entire screen area (excluding distortion due to lens)
Modulation Depth
45% or more at 27.5 MHz (typical)
Sensitivity
1080/59.94i: f/11 (typical at 2000 lux, 89.9% reflectance) 1080/50i: f/12 (typical at 2000 lux, 89.9% reflectance)
Minimum Illumination
0.3 lux (at f/1.4 lens, +42 dB gain, and slow shutter off)
