User manual Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55

Operating instructions and pdf manual for use - Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55 User manual, User manual Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55, Sony, PMW-F55, CineAlta, 4K, Digital, Cinema, Camera, PMW-F55,


User manual for Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Digital Cine Cameras
  • Safety instructions
  • Startup and operation of the digital cine cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 28 USD
We recommend checking out our discussion threads on the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55, which address similar problems with connecting and setting up Digital Cine Cameras Sony.



User manual for the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55

The user manual for the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55 provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

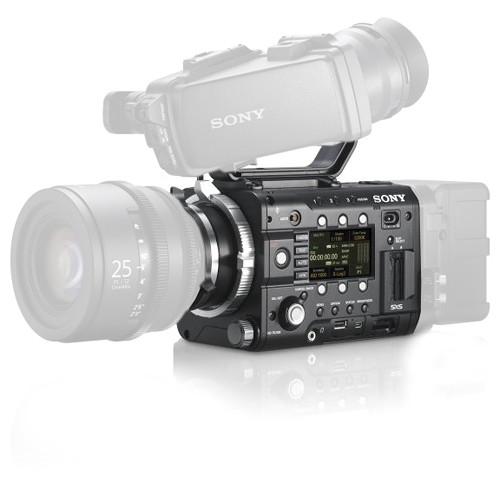

The Sony PMW-F55 CineAlta 4K Digital Cinema Camera features an 8.9MP Super 35mm image sensor, capable of capturing 4K, 2K and HD resolution video in a variety of formats via the camera's internal recorder. The F55 is among the first digital motion picture cameras with a global shutter, which completely eliminates motion skew and other "rolling" shutter distortions. Sony has designed the F55 as the foundation of an exceptionally versatile, modular system.

Optional components¹ of the F55 system include bolt-on recording units, a series of digital viewfinders, and camera support rigs. Notably, the AXS-R5 recorder¹ can be mounted onto the rear of the F55, enabling 4K and 2K 16-bit RAW recording and high speed frame rates of up to 240 fps in 2K². In keeping with Sony's mandate on versatility, the F55 will have a native FZ-mount, which will provide an interface for Sony's SCL-Z18x140³ auto focus servo zoom lens as well as a wide range of lens adapters, such as the included PL-mount adapter.

Many digital sensors can match and even surpass traditional motion picture film for resolution and low light image quality, but with approximately 14.3 stops of dynamic range, film has maintained an advantage over most digital sensors. However, the F55's exposure latitude is rated at 14 stops of dynamic range, for truly film-like rendering of highlights and shadows. Moreover, the F55 incorporates the same color filter array technology used in Sony's flagship F65, for a color gamut that is even wider than motion picture film.

On-board 4K recording requires high-data rate recording media, and the F55 will use Sony's newly developed SxS PRO+ memory cards. A 128 GB card will provide enough space for approximately 40 minutes of 4K video in the XAVC Intra 422 format. SxS PRO+ cards will also allow on-board recording of 2K video at up to 180 frames per second² as well as SStP 4:4:4 at 440 Mbps when set to RGB.
If you own a Sony digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55:
Specifications
    Sensor
    Sensor Type Super 35mm equivalent single-chip CMOS with global shutter
    Pixels Total: 11.6 MP
    Effective: 8.9 MP
    Sensitivity Luminance: 2000 lx, 89.9% reflectance
    Video Gamma: T11@24p (3200K light source)
    S-Log2 Gamma: ISO 1250 (D55 Light source)
    Dynamic Range 14 stops
    Signal to Noise Ratio 57dB (Video Gamma, 24p, Noise Suppression OFF)
    Recording
    Video Recording Format MPEG-2 Long GOP
    HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
    Audio Recording Format Linear PCM (2 ch, 24-bit, 48-kHz)
    Recording Modes XAVC 4K: 4096 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p
    XAVC QFHD: 3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p
    XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
    MPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p
    MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p
    MPEG2 HD: 1280 x 720 at 50p, 59.94p
    Shutter Speed 1/24s to 1/6,000s
    Shutter Angle 4.2 - 360°(electrical shutter)
    Slow Shutter 2, 3, 4, 5, 6, 7, and 8 frame accumulation
    Slow & Quick Motion Function XAVC 4K/QFHD: 1-60p (NTSC)
    XAVC 4K/QFHD: 1-50p (PAL)
    XAVC HD/2K: 1-180p (NTSC), 23.98p/29.97p with option
    XAVC HD/2K: 1-150p (PAL), 25p with option
    XAVC HD: 1-60p (NTSC)
    XAVC HD: 1-50p (PAL)
    White Balance Preset (3200K, 4300K, 5500K), Memory, ATW
    Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
    Gamma Curve Standard (x6)
    HG1, HG2, HG3, HG4, HG7 and HG8
    S-Log2 Gamma
    Interface
    Memory Cards SxS (x2, ExpressCard 34 slots)
    SD card slot (x1)
    Video Output HD-Y or HD Sync (tri-level) V1.0
    Analog Composite (VUP)
    HD-SDI Output HD mode: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
    4K mode: SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable
    Timecode TC IN/OUT switchable (x1)
    Genlock BNC input (x1)
    HDMI A Type output (x1)
    Audio Input: XLR-type 3-pin with Line/Mic/Mic +48V/AES/EBU selectable (x2, female)
    Output: phono jack (CH-1, CH-2)
    Headphone: Stereo mini jack (x1)
    Speaker: monaural
    USB USB device, Mini-B (x1)
    USB host, type-A (x1)
    Wi-Fi USB host, type-A (x1)
    DC Output 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
    Remote 8-pin (x1)
    General
    Lens Mount FZ-mount, PL-mount (with supplied adapter)
    Built-in Filters Clear, 0.9 (1/8 ND), 1.8 (1/64 ND)
    Power Requirements DC 12 V (11 V to 17.0 V)
    Power Consumption Approx. 25 W (while recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)
    Battery Operating Time With BP-FL75: approximately 150 minutes
    With BP-GL95A: approximately 210 minutes
    Operating Temperature 32 ~ 104° F (0 ~ 40° C)
    Storage Temperature -4° ~ +140° F (-20° ~ +60° C)
    Dimensions Without protrusions: 7.13 x 7.88 x 12.25" (15.1 x 18.9 x 21 cm)
    Weight Body only: 4.88 lb (2.2 kg)
    Packaging Info
    Package Weight 7.85 lb
    Box Dimensions (LxWxH) 14.3 x 11.8 x 9.7"
    The user manual for the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55 can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony digital cine camerass, where you can use our link to download the user manual for the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55.

    The user manual lists all of the functions of the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55, all the basic and advanced features and tells you how to use the digital cine cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony PMW-F55 CineAlta 4K Digital Cinema Camera PMW-F55. User manuals are also available on the Sony website under Professional Video - Digital Cine Cameras.
