User manual Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD

Operating instructions and pdf manual for use - Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD User manual, User manual Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD, Sony, PMWF5A7SLCD, PMW-F5, &, a7S, II, Production, C

User manual for Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD

Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Digital Cine Cameras
  • Safety instructions
  • Startup and operation of the digital cine cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 15 USD

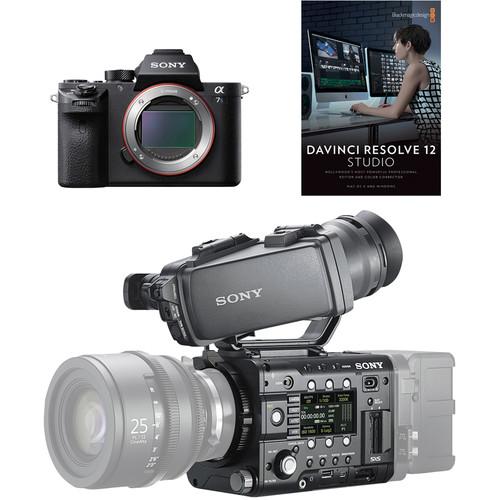

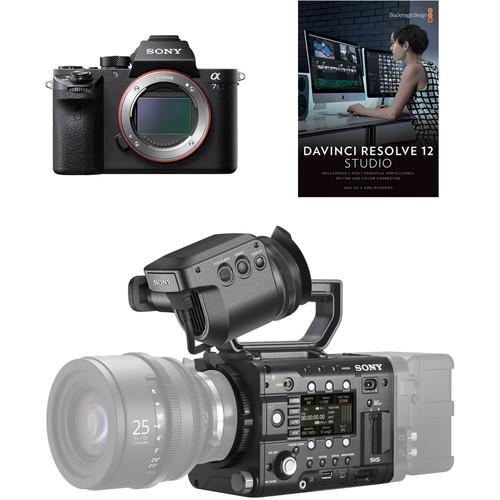

Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD
Click to enlarge image
We recommend checking out our discussion threads on the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD, which address similar problems with connecting and setting up Digital Cine Cameras Sony.


User manual for the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD

The user manual for the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

The Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew Bundle is suitable for owners/operators or anyone looking to start building their own 4K camera package. It includes a Sony PMW-F5 with the 4K upgrade, which allows you to capture 4K video internally. The included Sony a7S Mark II provides you with a second camera capable of recording 4K, which makes this a fairly well rounded A & B camera package. The smaller a7S II can be positioned in spaces too tight for the F5 without having to sacrifice image resolution. The bundle also includes an SxS media card reader, shoulder mount, and a license for DaVinci Resolve 12 Studio.

The included F5 CineAlta Camera features an 8.9MP Super35-sized sensor with 14 stops of dynamic range and records 4K, 2K, and HD video. It comes with the 4K upgrade installed and that enables XAVC 4K/QFHd recording and playback, 4K SDI and HDMI output, and simultaneous recording of XAVC 4K/QFHD and MPEG HD. The DVF-L350 LCD Viewfinder features a 960 x 540 resolution and a flip-up eyecup with an adjustable diopter. The included shoulder mount allows you to comfortably hand-hold the F5 Camera for documentary style shooting. It features a low profile to maintain a low center of gravity and a sliding balance mechanism for adjusting the camera's balance front to back.

The a7S Mark II Mirrorless Digital Camera features a full-frame 12.2MP Exmor CMOS sensor and is capable of internal UHD 4K recording at 30 fps with full pixel readout as well as 1080p recording at up to 120 fps, all in the XAVC S format. For both stills and video recording, the sensor is paired with the BIONZ X image processor to enable expanded sensitivity to ISO 409600, continuous shooting to 5 fps, and fast intelligent autofocus with low-light sensitivity to -4 EV.
If you own a Sony digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD:
Specifications
  • PMW-F5 CineAlta Digital Cinema Camera
    Sensor
    Sensor Type Super 35mm equivalent single-chip CMOS
    Pixels Total: 11.6 MP
    Effective: 8.9 MP
    Sensitivity Luminance: 2000 lx, 89.9% reflectance
    Video Gamma: T13 @24p (3200K light source)
    S-Log2 Gamma: ISO 2000 (D55 light source)
    Dynamic Range 14 stops
    Signal to Noise Ratio 57dB (Video Gamma, 24p, Noise Suppression OFF)
    Recording
    Video Recording Format MPEG-2 Long GOP
    HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
    Audio Recording Format Linear PCM (2 ch, 24-bit, 48-kHz)
    Recording Modes XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
    MPEG4 SStP: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p
    MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p
    MPEG2 HD: 1280 x 720 at 50p, 59.94p

    With firmware update 2.0 (already available) installed:
    4K RAW/24p, 16-bit, to an optional AXS-R5 external recorder
    2K RAW/120p/180p/240p, 16-bit, to AXS-R5
    1080p 4:2:2 at up to 120fps internally in XAVC

    With firmware update 3.0 (due for release shortly) installed:
    4K RAW 1p to 60p, 16-bit, to an optional AXS-R5 external recorder
    2K RAW 1p to 240p, 16-bit, to AXS-R5
    1080p 4:2:2 1fps to 180fps internally in XAVC
    Shutter Speed 1/24s to 1/6,000s
    Shutter Angle 4.2 - 360°(electrical shutter)
    Slow Shutter 2, 3, 4, 5, 6, 7, and 8 frame accumulation
    Slow & Quick Motion Function XAVC HD/2K: 1-120p (NTSC) at 23.98p, 29.97p
    XAVC HD/2K: 1-100p (PAL) at 25p
    White Balance Preset (3200K, 4300K, 5500K), Memory, ATW
    Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
    Gamma Curve Standard (x6)
    HG1, HG2, HG3, HG4, HG7 and HG8
    S-Log2 Gamma
    Interface
    Memory Cards SxS (x2, ExpressCard 34 slots)
    SD card slot (x1)
    Video Output HD-Y or HD Sync (tri-level) V1.0
    Analog Composite (VUP)
    HD-SDI Output SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
    Timecode TC IN/OUT switchable (x1)
    Genlock BNC input (x1)
    HDMI A Type output (x1)
    Audio Input: XLR-type 3-pin with Line/Mic/Mic +48V/AES/EBU selectable (x2, female)
    Output: phono jack (CH-1, CH-2)
    Headphone: Stereo mini jack (x1)
    Speaker: monaural
    USB USB device, Mini-B (x1)
    USB host, type-A (x1)
    Wi-Fi USB host, type-A (x1)
    Shutter BNC (x1)
    DC Output 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
    Remote 8-pin (x1)
    General
    Lens Mount FZ-mount, PL-mount (with supplied adapter)
    Built-in Filters Clear, 0.9 (1/8 ND), 1.8 (1/64 ND)
    Power Requirements DC 12 V (11 V to 17.0 V)
    Power Consumption Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)
    Battery Operating Time With BP-FL75: approximately 160 minutes
    With BP-GL95A: approximately 230 minutes
    Operating Temperature 32 ~ 104° F (0 ~ 40° C)
    Storage Temperature -4° ~ +140° F (-20° ~ +60° C)
    Dimensions Without protrusions: 7.13 x 7.88 x 12.25" (15.1 x 18.9 x 21 cm)
    Weight Body only: 4.88 lb (2.2 kg)
    Packaging Info
    Box Dimensions (LxWxH) 14.2 x 11.8 x 9.8"
  • Alpha a7S II Mirrorless Digital Camera (Body Only)
    Imaging
    Lens Mount Sony E-Mount
    Camera Format Full-Frame
    Pixels Actual: 12.4 Megapixel
    Effective: 12.2 Megapixel
    Max Resolution 4240 x 2832
    Aspect Ratio 3:2, 16:9
    Sensor Type / Size CMOS, 35.8 x 23.9 mm
    File Formats Still Images: JPEG, RAW
    Movies: AVCHD Ver. 2.0, MP4, MPEG-4 AVC/H.264, XAVC S
    Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Memory Stick PRO Duo (High Speed)
    Memory Stick PRO HG-Duo
    Image Stabilization Sensor-Shift, 5-Way
    AV Recording
    Video Recording Yes, NTSC/PAL
    Resolution 3840 x 2160: 30 fps, 24 fps, 25 fps
    1920 x 1080: 120 fps, 100 fps
    1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    Video Format 4K
    XAVC S
    3840 x 2160p / 29.97 fps (100 Mbps)
    3840 x 2160p / 29.97 fps (60 Mbps)
    3840 x 2160p / 23.98 fps (100 Mbps)
    3840 x 2160p / 23.98 fps (60 Mbps)
    3840 x 2160p / 25 fps (100 Mbps)
    3840 x 2160p / 25 fps (60 Mbps)
    High Definition
    XAVC S
    1920 x 1080p / 120 fps (100 Mbps)
    1920 x 1080p / 100 fps (100 Mbps)
    1920 x 1080p / 120 fps (60 Mbps)
    1920 x 1080p / 100 fps (60 Mbps)
    1920 x 1080p / 59.94 fps (50 Mbps)
    1920 x 1080p / 29.97 fps (50 Mbps)
    1920 x 1080p / 23.98 fps (50 Mbps)
    1920 x 1080p / 50 fps (50 Mbps)
    1920 x 1080p / 25 fps (50 Mbps)
    High Definition
    AVCHD
    1920 x 1080p / 59.94 fps (28 Mbps)
    1920 x 1080i / 59.94 fps (24 Mbps)
    1920 x 1080i / 59.94 fps (17 Mbps)
    1920 x 1080p / 23.98 fps (24 Mbps)
    1920 x 1080p / 23.98 fps (17 Mbps)
    1920 x 1080p / 50 fps (28 Mbps)
    1920 x 1080i / 50 fps (24 Mbps)
    1920 x 1080i / 50 fps (17 Mbps)
    1920 x 1080p / 25 fps (24 Mbps)
    1920 x 1080p / 25 fps (17 Mbps)
    High Definition
    MP4
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080p / 29.97 fps (16 Mbps)
    1280 x 720p / 29.97 fps (6 Mbps)
    1920 x 1080p / 50 fps (28 Mbps)
    1920 x 1080p / 25 fps (16 Mbps)
    1280 x 720p / 25 fps (6 Mbps)
    Aspect Ratio 16:9
    Video Clip Length Up to 29 Min 59 Sec
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video, Stereo + Mono
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Contrast Detection:169
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Size 0.5"
    Viewfinder Pixel Count 2,359,296
    Viewfinder Eye Point 23.00 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.78x
    Diopter Adjustment - 4 to +3 m
    Display Screen 3" Rear Screen   LCD (1,228,800)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 100-102400 (Extended Mode: 50-409600)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/8000 second
    Metering Method Center-weighted average metering, Multiple, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Intelligent Auto, Manual, Movie, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto, Sweep Panorama
    Metering Range: EV -3.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
    Continuous Shooting Up to 5 fps at 12.2 MPfor up to 200 frames
    Up to 2.5 fps at 12.2 MPfor up to 200 frames
    Flash
    Flash Modes Auto
    Fill-in
    Hi-Speed Sync
    Off
    Rear Sync
    Red-eye Reduction
    Slow Sync
    Wireless
    Built-in Flash No
    Max Sync Speed 1 / 250 seconds
    Flash Compensation -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
    External Flash Connection Hot Shoe
    Performance
    Self Timer 10 seconds, 5 seconds, 2 seconds
    Connectivity 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), Micro-USB
    Wi-Fi Capable Yes
    Power
    Battery 1x NP-FW50 Rechargeable Lithium-ion Battery Pack, 7.4 VDC, 1020 mAh
    AC Power Adapter AC-PW20 (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Physical
    Dimensions (WxHxD) 4.6 x 2.7 x 1.5" / 116.8 x 68.6 x 38.1 mm
    Weight 22.12 oz / 627 g with battery and memory card
    Packaging Info
    Box Dimensions (LxWxH) 9.6 x 6.1 x 5.8"
  • DVF-L350 3.5" LCD Viewfinder for F5 & F55
    Display Type LCD
    Display Size 3.5" diagonal color TFT LCD (8.9 cm)
    Resolution 960 x 540
    Effective Pixels 960 x 540
    Brightness 270 nit (typical)
    Contrast Ratio 1000:1
    Color Temperature D65
    Camera Connector 26-pin digital viewfinder interface, compatible with F5 and F55
    I/O Port 26-pin viewfinder cable
    Power Requirements DC 10.5 V - 17 V via 26-pin viewfinder connector
    Power Consumption 1.2 W
    Operating Temperature 32 to 104°F (0 to 40°C)
    Weight 1.45 lb (660 g)
    Packaging Info
    Box Dimensions (LxWxH) 12.3 x 11.6 x 6.4"
  • SBAC-US30 USB 3.0 SxS Memory Card Reader
    Compatible Memory Cards SxS
    With optional Sony ExpressCard adapters: XQD, SD and MS
    Computer Interface USB 3.0 (USB 2.0 backwards compatible)
    Data Transfer Rate Read speeds: Up to 800 Mb/s for SxS Pro and SxS-1 cards; up to 1.3 Gb/s for SxS Pro+ cards
    Power Requirements USB bus-powered
    4.5 W
    System & Software Requirements Computer with available USB port
    Dimensions (WxHxD) 4.0 x 1.25 x 5.25" (10.16 x 3.18 x 13.34 cm)
    Weight 7.0 oz (198.4 g)
    Packaging Info
    Box Dimensions (LxWxH) 8.5 x 6.8 x 2.7"
  • Software Upgrade for PMW-F5 / PMW-F55 Camcorder (4K)
    Compatibility Camcorder Models: PMW-F55, PMW-F5
    Camera Firmware: Version 5.0 and higher
    Packaging Info
    Box Dimensions (LxWxH) 13.5 x 9.5 x 0.1"
  • VCT-FSA5 Shoulder Mount Accessory for PMW-F5/ PMW-F55
    Material of Construction Cast aluminum
    Stainless steel rods
    Accessory Mounting 2 x Arri compatible mounting rosettes 2 x 15mm rods
    Dimensions (L x W x H) Without rods: 9.88 x 5.13 x 1.75" (25.1 x 13.0 x 4.45 cm)
    With rods: 17.5 x 5.13 x 1.75" (44.5 x 13.0 4.45 cm)
    Rods: 15mm diameter 9.75" (25 cm) long
    Weight Without rods: 1.4 lb (635 g)
    With rods: 2.1 lb (952.5 g)
    Packaging Info
    Box Dimensions (LxWxH) 11.3 x 7.2 x 3.8"
The user manual for the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony digital cine camerass, where you can use our link to download the user manual for the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD.

The user manual lists all of the functions of the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD, all the basic and advanced features and tells you how to use the digital cine cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD. User manuals are also available on the Sony website under Professional Video - Digital Cine Cameras.


Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD - no comments have been made yet - be the first to add a comment

Post new comment/question/response regarding the Sony PMWF5A7SLCD PMW-F5 & a7S II Production Crew PMWF5A7SLCD

Fields marked with * must be filled out.
Your name *:
E-mail :
Subject *:
Message text *:
Enter the code *:
(spam block)		 "manual"
If you would like to receive a response to your comment, don’t forget to include your e-mail address. Your e-mail will not be displayed or otherwise used in any way.



Can't find what you're looking for? Try Google Search!

Current discussions
Most recently discussed products:

Wiring/configure 501n-3 for rear view switch - Rear View Safety RVS-501N 3-Channel Multiplexer RVS-501N
Posted by: Ron Diller
2025-05-06 23:25:57

Hello,I replaced the rv radio, which controls back,and turn signal cameras. How can I wire it to have the backup camera on all the time as a rear view mirror function, except when blinkers are on. Thanks! ...
Wiring/configure 501n-3 for rear view switch - Rear View Safety RVS-501N 3-Channel Multiplexer RVS-501N
Posted by: Ron Diller
2025-05-06 23:25:03

Hello,I replaced the rv radio, which controls back,and turn signal cameras. How can I wire it to have the backup camera on all the time as a rear view mirror function, except when blinkers are on. Thanks! ...
sony alpha 7II - Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens
Posted by: Clabue
2025-05-06 13:13:48

Alpha 7 II - Black + Sony FE 28-70mm f/3.5-5.6 OSS f/3.5-5.6 Where can I find a manual. It didn't come with the camera I just purchased online. Thank you....
FBA-Pioneer BDR-XU03 - Pioneer BDR-XU03 USB 3.0 BD/DVD/CD Burner BDR-XU03
Posted by: Mark Visel
2025-05-05 20:51:42

Sorry, but I am having one hell of a time finding this manual. Bought thru Amazon and am getting no where with finding manual. Can someone help....
SRD-92B setting - Fujinon SRD92B Zoom Rate Demand SRD-92B
Posted by: Matthew Allen
2025-05-04 14:10:30

How can we make the speed adjustment control slower...

Uploaded instruction manuals
Upload a link to an instruction manual for a depicted product here:

Link format "http://www.link2manual.com/manual.pdf"

Enter the code: "manual"




PDF-MANUALS.com - Community administered database of instructions for use and PDF User manual
sitemap.txt alx
