User manual for the Sony PXW-X160 Full HD XDCAM Handheld Camcorder PXW-X160
The user manual for the Sony PXW-X160 Full HD XDCAM Handheld Camcorder PXW-X160 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

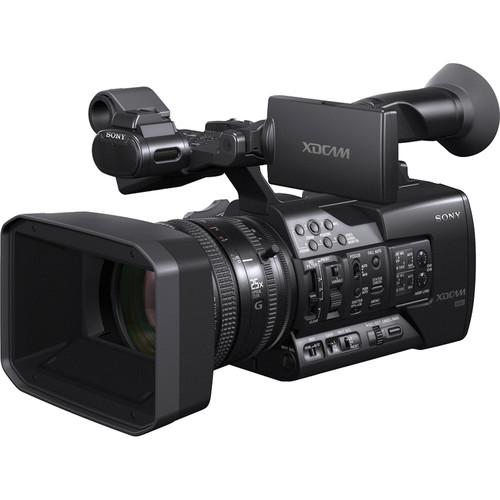

Offering 10-bit, 1080p, XAVC recording and a 25x zoom lens with 26mm wide-angle, the Sony PXW-X160 XDCAM Handheld Camcorder is ideal for a wide-range of applications, including professional broadcast, documentary, and live event work. The camcorder provides the same video recording quality and body design as the PXW-X180 but forgoes the network, GPS, and proxy recording features to deliver a more cost-effective option for shooters who don't need these features. Its three 1/3" Exmor CMOS sensors provide low noise, wide dynamic range, and support 1080p video at up to 60 fps using the XAVC Intra and XAVC Long GOP codecs. It also offers MPEG HD 422, MPEG HD 420, AVCHD, and DV codecs to fit into existing broadcast and production workflows. Other key features of the camcorder include a 0.5" OLED viewfinder, dual SxS memory card slots, and an electronically controlled variable ND filter. Additionally, it features a Multi-Interface Shoe that has an electronic interface that allows it to communicate and accept signals from optional accessories, such as the UWP-D11 or UWP-D12 wireless microphone receivers, without requiring an XLR cable or additional power source.
|
If you own a Sony camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony PXW-X160 Full HD XDCAM Handheld Camcorder PXW-X160 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony PXW-X160 Full HD XDCAM Handheld Camcorder PXW-X160:
| Imaging Device | 3 x 1/3" type Exmor CMOS sensor | | Effective Pixels (H x V) | 1920 x 1080 | | Horizontal Resolution | 1000 TV lines or more (1920 x 1080i mode) | | Sensitivity | F9 (typical) (1920 x 1080/59.94i mode)
F10 (typical) (1920 x 1080/50i mode) | | Minimum Illumination | 0.12lx (typical), 1920 x 1080/59.94i mode, F1.6, +18 dB gain, 16 frame accumulation, Gamma off, 100% video level
0.02lx (typical), 1920 x 1080/59.94i mode, F1.6, +18 dB gain, 16 frame accumulation, Gamma on, 50% video level | | S/N Ratio | 60 dB (Y) (typical) | | Gain | -3, 0, 3, 6, 9, 12, 15, 18 dB, AGC | | Gamma Curve | Selectable | | Shutter Speed | 1/32 to 1/2000 sec
Slow Shutter: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 16 frames | | White Balance | Present (3200K), Memory A, Memory B/ATW | | Built-In ND Filters | Clear
1/4
1/16
1/64
Linear variable ND, approx. 1/4 to 1/128 | | Type | Fixed | | Zoom Ratio | 25x (optical), servo/manual | | Focal Length | 3.7 to 92.5 mm | | 35mm Equivalent Focal Length | 26 to 650 mm | | Aperture | f/1.6 to f/11, and closed | | Focus | Autofocus / manual focus selectable | | Minimum Focus Distance | Wide (Macro ON): 0.39" (10 mm)
Tele (Macro ON): 31.5" (800 mm) | | Image Stabilizer | ON/OFF/ACTIVE selectable, shift lens | | Filter Diameter | 82 mm | | Video Recording Format | XAVC-Intra
1920x1080 59.94i: 111 Mbps max
1920x1080 50i: 112 Mbps max
1920x1080 29.97p: 111 Mbps max
1920x1080 25p: 112 Mbps max
1920x1080 23.98p: 89 Mbps max
1280x720 59.94p: 111 Mbps max
1280x720 50p: 112 Mbps max
XAVC-Long
1920x1080 59.94i, 50i: 50/35/25 Mbps max
1920x1080 59.94p, 50p, 29.97p, 25p, 23.98p: 50/35 Mbps max
1280x720 59.94p, 50p: 50 Mbps max
MPEG HD422
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 50 Mbps max
1280x720 59.94p, 50p, 29.97p, 25p, 23.98p: 50 Mbps max
MPEG HD420
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 35Mbps max
1440x1080 59.94i, 50i: 35 Mbps max
1280x720 59.94p, 50p: 35Mbps max
AVCHD
1920x1080 59.94p, 50p: 28 Mbps max
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 24 Mbps max
1280x720 59.94p, 50p: 24 Mbps max
DVCAM
720x480 59.94i: 25 Mbps
720x576 50i: 25 Mbps
Proxy
1280x720: 9 Mbps
640x360: 3 Mbps
480x270: 1 Mbps
480x270: 500 Kbps | | Slow & Quick Motion Function | XAVC-Intra 1920x1080: 1 to 60 frames (29.97p, 23.98p, 25p)
XAVC-Intra 1280x720: 1 to 60 frames (59.94p, 50p)
XAVC-Long1920x1080:1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-Long 1280x720: 1 to 120 frames (59.94p, 50p)
HD422 1920x1080: 1 to 30 frames (29.97p, 23.98p, 25p)
HD422 1280x720: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p) | | Audio Recording Format | XAVC-Intra: LPCM 24-bit, 48 kHz, 2 channels
XAVC-Long: LPCM 24-bit, 48 kHz, 2 channels
MPEG HD422: LPCM 24-bit, 48 kHz, 2 channels
MPEG HD420 HQ: LPCM 16-bit, 48 kHz, 2 channels
AVCHD:
LPCM 16-bit, 48 kHz, 2 channels
Dolby Digital 16-bit, 48 kHz, 2 channels
Dolby Digital Stereo Creator employed
DVCAM: LPCM 16-bit, 48 kHz, 2 channels | | Recording Time | XAVC-Intra:
Approx. 120 minutes (128 GB memory card)
Approx. 60 minutes (64 GB memory card)
Approx. 30 minutes (32 GB memory card)
XAVC-Long 50:
Approx. 240 minutes (128 GB memory card)
Approx. 120 minutes (64 GB memory card)
Approx. 60 minutes (32 GB memory card)
XAVC-Long 35:
Approx. 340 minutes (128 GB memory card)
Approx. 170 minutes (64 GB memory card)
Approx. 85 minutes (32 GB memory card)
XAVC-Long 25:
Approx. 440 minutes (128 GB memory card)
Approx. 220 minutes (64 GB memory card)
Approx. 110 minutes (32 GB memory card)
MPEG HD422:
Approx. 240 minutes (128 GB memory card)
Approx. 120 minutes (64 GB memory card)
Approx. 60 minutes (32 GB memory card)
MPEG HD420 HQ:
Approx. 360 minutes (128 GB memory card)
Approx. 180 minutes (64 GB memory card)
Approx. 90 minutes (32 GB memory card)
AVCHD:
Approx. 290 minutes (64 GB memory card)
Approx. 145 minutes (32 GB memory card)
Approx. 70 minutes (16 GB memory card)
DVCAM:
Approx. 440 minutes (128 GB memory card)
Approx. 220 minutes (64 GB memory card)
Approx. 110 minutes (32 GB memory card)
| | Audio Input | 2 x XLR 3-pin, female, LINE/MIC/MIC+48V switchable
MIC: -50 dBu / 3 kOhms
LINE: +4 dBu / 10 kOhms | | Audio Output | 1 x 3.5 mm | | SDI Output | 1 x 3G-SDI, BNC connector | | HDMI Output | 1 x HDMI, Type A | | Composite Output / GENLOCK-IN | 1 x BNC connector, HD-Y / HD-SYNC / composite signal / GENLOCK IN | | USB | 1 x USB 2.0, mini-B (mass-storage)
1 x Type A (host) | | Timecode Input & Output | 1 x BNC connector | | Remote | 1 x 2.5 mm | | DC Input | 1 x DC jack | | Shoe Mounts | 1 x Multi Interface Shoe | | Headphone Output | 1 x 3.5 mm stereo mini-jack | | Built-In Microphone | Omni-directional stereo electret condenser microphone | | Viewfinder | 0.5" (1.27 cm) type color OLED
1024 x 768 resolution
Approx. 2.36 million dots | | LCD | 3.5" (8.89 cm) color LCD monitor
Aspect ratio: 16:9
Approx. 1.56 million dots | | Slots | 2 x ExpressCard/34; supports SxS PRO+ and SxS-1 memory cards | | Power Requirements | 19.5 VDC (AC Adaptor)
14.4 VDC (battery pack) | | Power Consumption | Approx. 19.9 W (while recording with LCD Off, EVF On when the external device connector is not used) | | Battery Operating Time | With battery pack BP-U90: approx. 4 hours (While recording with LCD Off, EVF On when the external device connector is not used)
With battery pack BP-U60: approx. 2 hours, 35 minutes (While recording with LCD Off, EVF On when the external device connector is not used)
With battery pack BP-U30: approx. 1 hours, 15 minutes (While recording with LCD Off, EVF On when the external device connector is not used) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (WxHxD) | 7.54 x 7.93 x 16.22" (19.15 x 20.15 x 41.20 cm), without protrusions | | Weight | Approx. 5.95 lb (2.7 kg); body only
Approx. 7.05 lb (3.2 kg); with lens hood, eyecup, battery pack BP-U30, SxS memory card | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 17.0 x 10.7 x 10.7" | |
