User manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder PXW-X70
The user manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder PXW-X70 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

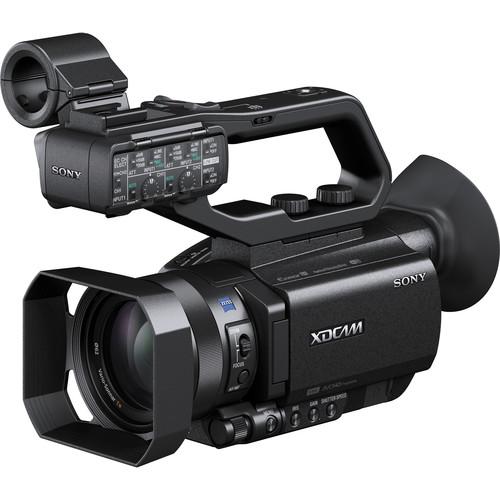

Sony's PXW-X70 Professional XDCAM Compact Camcorder is about the same size as a conventional 1/3" professional compact camcorder, but it features a 1" type sensor, which is larger than a super-16 sized sensor and more than eight times the size of a 1/3" sensor. The larger Exmor R sensor size provides for more cinematic appearing depth of field than a 1/3" sensor is capable of and features a back-side illuminated design for improved low light performance. It features an integrated 12x optical zoom lens with a manual lens ring for zoom/focus control, and a three level switchable ND filter. The top handle incorporates two 3-pin XLR inputs for recording audio from XLR microphones.
The camera records HD video using the XAVC Long-GOP codec with 4:2:2, 10-bit color sampling at 50 Mb/second, providing footage with a high data rate that is suitable for broadcast applications. Sony's Slow & Quick Motion is built-into the camera. The camera features two SD card slots, allowing simultaneous and relay recording, and both a 3G-SDI and an HDMI output. The camera supports control via Wi-Fi using smartphones or tablets and the optional Content Browser Mobile application. Planned upgrades will allow the camera to record in 4K UHD as well as add file transfer and streaming via Wi-Fi.
If you own a Sony camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony PXW-X70 Professional XDCAM Compact Camcorder PXW-X70 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony PXW-X70 Professional XDCAM Compact Camcorder PXW-X70:
Specifications
Sensor
1" Exmor R CMOS 20MP sensor 14.2MP effective pixels
Lens
12x optical zoom 24x Clear Image Zoom 48x with digital extender Aperture: f/2.8 -f/4.5 Focal Length: 9.3 to 111.6mm (equivalent to 29 to 348mm on 16:9 35 mm lens)
XAVC-L 50 1920 x 1080i: 59.94/50 1920 x 1080p: 59.94/50/29.97/25/23.98 1280 x 720p: 59.94/50
XAVC-L 35 1920 x 1080i: 59.94/50 1920 x 1080p: 59.94/50/29.97/25/23.98
XAVC-L 25 1920 x 1080i: 59.94/50
AVCHD 1920 x 1080i: 59.94/50 1920 x 1080p: 59.94/50/29.97/23.98/25 1280 x 720p: 59.94/50
DV 720x480i: 59.94 720x576i: 50
Recording/Playback Time
XAVC-L LPCM 2ch 50Mbps: approx. 120 min with 64 GB memory card LPCM 2ch 35Mbps: approx. 170 min with 64 GB memory card LPCM 2ch 25Mbps: approx. 220 min with 64 GB memory card
AVCHD LPCM 2ch PS Mode: approx. 290 min with 64 GB memory card / 145 min with 32 GB memory card LPCM 2ch FX Mode: approx. 340 min with 64 GB memory card / 170 min with 32 GB memory card LPCM 2ch FH Mode: approx. 450 min with 64 GB memory card / 225 min with 32 GB memory card
DV approx. 280 min with 64 GB memory card / 140 min with 32 GB memory card
Outputs
1 x 3G-SDI 1 x HDMI 1 x Multi/Micro USB (Requires optional breakout cable)
Audio Input
Mic: 2 x 3-pin XLR female Mic: 1 x 3.5 mm stereo mini jack with plug-in power
Media Card Slots
2 x SD
Wireless
NFC Wireless LAN
Power Consumption
Approx. 5.5 W (while recording with viewfinder and XAVC HD 1080/60i 50Mbps) Approx. 5.8 W (while recording with LCD and XAVC HD 1080/60i 50Mbps)
Battery Operating Time
approx. 120min. with NP-FV70 battery (while recording with LCD, XAVC 1080/60i, 50Mbps)
Temperature
Operating 32 to 104°F / 0 to 40°C Storage -4 to 140°F / -20 to 60°C
Dimensions (W x H x D)
4.8 x / 4.1 x 10.8" / 120.7 x 103.5 x 274.3 mm ( with lens hood and eyecup)
Weight
Less than 3 lb / 1.4 kg (includes camera body, XLR handle unit, NP-FV70 battery, lens hood, and large eye-cup)
