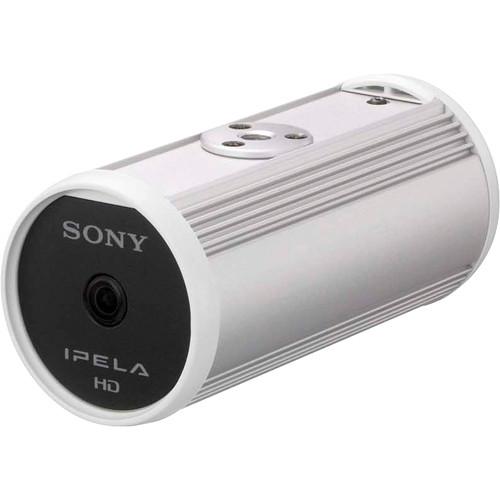

User manual Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S

Operating instructions and pdf manual for use - Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S User manual, User manual Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S, Sony, SNCCH110S, Network, 720p, HD, Fixed, C


User manual for Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S

Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 448 USD
We recommend checking out our discussion threads on the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S, which address similar problems with connecting and setting up Wired IP Cameras Sony.



User manual for the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S

The user manual for the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Sony SNCCH110S 720p Network HD Fixed Camera (Silver) features a 1/3.8" progressive scan CMOS sensor and a 1.3MP fixed lens, and provides 720p HD picture quality at up to 30 fps. It supports H.264, MPEG-4, and JPEG compression techniques, and offers dual streaming capability. H.264 compression helps reduce video file sizes without compromising on the quality and integrity of images.

Depending on the light level, the Electrical Day/Night function switches the camera between Day and Night modes. The SNCCH110S Network HD Fixed Camera uses the Stream Squared function to transmit two 4:3 aspect ratio videos in user-selectable resolutions up to SD simultaneously, and offers an alternative to replace 2 SD cameras placed in a line. Auto White Balance adjusts the red and blue signals in the MWB mode by taking a standard white color reference to get the most natural colors.

The SNCCH110S Network HD Fixed Camera provides exposure control capability, and offers Intelligent Motion Detection that supports DEPA and reduces false positives. It also features the Tampering Alarm function that detects attempts such as spray painting.

ONVIF-compliance provides flexibility for building multiple vendor systems and also ensures system interoperability. The RealShot Manager Lite recording software helps to instantly start recording and monitoring. Power is drawn via a PoE connection. The SNCCH110S Network HD Fixed Camera is ideal for applications such as retail, hotel, restaurants, education, and corporate markets.
If you own a Sony wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S:
Specifications
    Image Sensor 1/3.8 type CMOS sensor
    Minimum Illumination 5.0 lx / AGC 30dB / 50IRE [IP]
    Effective Pixels 1.3Megapixel
    (1296×985)
    Electronic Shutter Speed 1/2 s to 1/10000 s
    Gain Control Auto
    Exposure Control Auto, EV Compensation, Auto Slow Shutter
    White Balance Auto(ATW, ATW-PRO), Preset, One-push WB, Manual
    Lens Type fixed
    Horizontal Viewing Angle 80.7 degrees
    Focal Length f=2.34
    F Number F2.8
    Day/Night Yes (electrical D/N)
    Noise Reduction Yes
    Compression H.264, MPEG-4, JPEG
    Streaming Dual streaming
    Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,SNMP (MIB-2)
    Number of Clients 5
    Signal System NTSC / PAL
    Ethernet 10BASE-T / 100BASE-TX (RJ-45)
    Mass 3.5 oz (100 g)
    Dimensions ø 1 3/4 x 3 3/4" (ø 44 x 93 mm)
    Power Requirements PoE
    Power Consumption 2.4W
    Working Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to +140°F (-20 to +60°C)
    Safety Regulations UL2044, FCC 15B Class B, IC Class B, IEC60950-1, EN55022(B)+EN55024+EN50130-4, VCCI Class B, C-Tick Class B
    System Requirements
    Operating System Windows XP, Windows Vista (32bit), Windows 7 (32bit)
    Processor Processor Intel Core2 Duo 2 GHz or higher
    Memory 1 GB or more
    Web Browser Access Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
    Firefox Ver.3.5 (Plug-in free viewer only)
    Safari Ver.4.0 (Plug-in free viewer only)
    Google Chrome Ver.4.0 (Plug-in free viewer only)
    Packaging Info
    Package Weight 0.65 lb
    Box Dimensions (LxWxH) 5.3 x 5.3 x 2.8"
    The user manual for the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony wired ip camerass, where you can use our link to download the user manual for the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S.

    The user manual lists all of the functions of the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony SNCCH110S Network 720p HD Fixed Camera (Silver) SNC-CH110/S. User manuals are also available on the Sony website under Surveillance - Surveillance Video - Wired IP Cameras.
