User manual Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B

Operating instructions and pdf manual for use - Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B User manual, User manual Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B, Sony, SNCDH210TB, Mini-dome, 1080p, HD, Vand


User manual for Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B

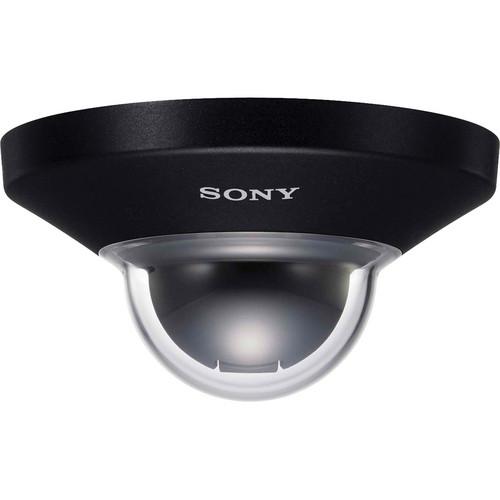

Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 667 USD
We recommend checking out our discussion threads on the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B, which address similar problems with connecting and setting up Wired IP Cameras Sony.



User manual for the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B

The user manual for the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant Camera (Black) features a 1/2.8 type progressive scan "Exmor" CMOS sensor that has low noise characteristics offering improved image acquisition, and a 3 MP fixed lens. It offers 1080p HD picture quality at up to 30 fps, and detailed Full HD progressive images that have more information, are more stable to view, and can be compressed efficiently.

The SNC-DH210T Mini-dome HD Vandal-resistant Camera provides enhanced quality pictures and event detection, which are useful for gathering evidence. The vandal resistant housing provides the camera enhanced protection against violent attacks, enabling it to operate in high-risk public environments.

Depending on the light level, the Electrical Day/Night function switches the camera between Day and Night modes. The SNC-DH210T Mini-dome HD Vandal-resistant Camera supports H.264, MPEG-4, and JPEG compression formats, and offers dual streaming capability. H.264 compression helps reduce video file sizes without compromising on the quality and integrity of images. It uses the Stream Squared function to transmit two 4:3 aspect ratio videos in user-selectable resolutions up to SD simultaneously, and offers an alternative to replacing 2 SD cameras placed in a line.

The SNC-DH210T Mini-dome HD Vandal-resistant Camera is DEPA and ONVIF compliant. DEPA is a combination of the rules/filters that determine when an alarm should be triggered or when image recording should begin, and the camera’s built-in intelligence. ONVIF-compliance provides flexibility for building multiple vendor systems, and also ensures system interoperability.

Auto White Balance adjusts the red and blue signals in the MWB mode by taking a standard white color reference to get the most natural colors. An analog video monitor can be connected to the camera via the analog monitor output. PoE (Power over Ethernet) capability allows power to be supplied to the SNC-DH210T Mini-dome HD Vandal-resistant Camera via the same Ethernet cable that is used for data transfer, making installation easier and efficient.
If you own a Sony wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B:
Image Sensor 1/2.8 type progressive scan "Exmor" CMOS sensor
Minimum Illumination 2.3 lx / AGC(38db) / 50IRE(IP)m
Effective Pixels 3Megapixel (2096 x 1561)
Electronic Shutter Speed 1s to 1/10000 s
Gain Control Auto
Exposure Control Auto, EV Compensation, Auto Slow Shutter
White Balance Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens Type Fixed
Horizontal Viewing Angle 86 degrees
Focal Length f=3.3
F Number F2.8
Day/Night Yes (electrical D/N)
Noise Reduction Yes
Pan Angle Approx. 340°
Tilt Angle 0 to 60°
Compression H.264, MPEG-4, JPEG
Streaming Dual streaming
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Number of Clients 5
Signal System NTSC / PAL
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Mass 6 oz (170 g)
Dimensions 4 1/4 x 2 1/4 " (106 x 56.5 mm)
Power Requirements PoE
Power Consumption 2.4W
Working Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to +140°F (-20 to +60°C)
Safety Regulations UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A
System Requirements
Operating System Windows XP, Windows Vista (32bit), Windows 7 (32bit)
Processor Processor Intel Core2 Duo 2 GHz or higher
Memory 1 GB or more
Web Browser Access Microsoft Internet Explorer Ver.6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Packaging Info
Package Weight 1.0 lb
Box Dimensions (LxWxH) 6.5 x 5.5 x 4.2"
The user manual for the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony wired ip camerass, where you can use our link to download the user manual for the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B.

The user manual lists all of the functions of the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony SNCDH210TB Mini-dome 1080p HD Vandal-resistant SNC-DH210T/B. User manuals are also available on the Sony website under Surveillance - Surveillance Video - Wired IP Cameras.
