User manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1

The user manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

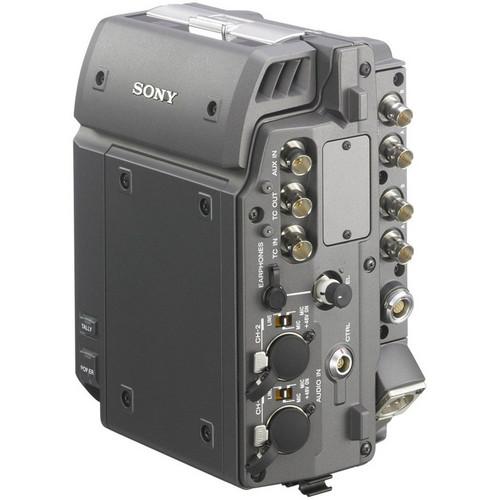

The Sony SR-R1 Portable Recorder for HD-SDI Cameras is a portable I/O device with dual-stream HD-SDI inputs & outputs that's capable of recording both 4:2:2 1080p60 and stereoscopic 3D video (up to 1080p30) to extremely high-capacity SRMemory Cards (sold separately). For cameras such as the Sony F35 and the PMW-F3, the SR-R1 presents a powerful, convenient way to capture advanced formats – in the field or in the studio, with backup recording to the cameras' cards. It even records S-Log data from those cameras.
If you own a Sony solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1Download user manual for Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1
(PDF file, 1.72 MB)
Additional parameters of the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1:
Video & Audio
Recording Format MPEG-4 SStP format, Uncompressed

Uncompressed available in 2012

Sampling Frequency 422 Format Video: Y: 74.25 MHz, Pb/Pr: 37.125 MHz
444 Format Video: RGB: 74.25 MHz
Digital Audio: 48 kHz (synchronized with video)
Quantization 422 Format Video: 10 bits/sample
444 Format Video: 10 bits/sample, 12 bits/sample
Digital Audio: 24 bits/sample
Compression 422 Format Video: MPEG-4 SStP, Uncompressed
444 Format Video: MPEG-4 SStP, Uncompressed
Headroom Digital Audio: 20 dB
Analog Audio Input A/D Quantization: 24 bits/sample
Reference Input Level Line: +4 dBV, Mic: -34/-46/-58 dBV
Frequency Response 20 Hz to 20 kHz +0.5/-1.0 dB (reference level)
Dynamic Range 100 dB or more (1 kHz)
Distortion 0.05% or less (1 kHz, reference level)
Crosstalk -80 dB or less (1 kHz, between each channel)
Input
HD-SDI Input 2x BNC
HD-SDI (1.485 Gb/s) (SMPTE 292M/372M/BTA-S004B standard)
3G-SDI (2.97 Gb/s) (SMPTE 424M)
Audio Input 2x XLR-3-pin (female, channel 1 / channel 2)
Line/Mic/Mic +48V selectable
Timecode Input 1x BNC
0.5 to 18 Vp-p, 10 kΩ (SMPTE 12M standard)
Auxiliary Input 1x BNC (digital audio)
HD-SDI embedded audio (1.485 Gb/s)
Output
HD-SDI Output 2x BNC
HD-SDI (1.485 Gb/s) (SMPTE 292M/372M/BTA-S004B standard)
3G-SDI (2.97 Gb/s) (SMPTE 424M)
Headphones 1x Stereo mini-jack
Timecode Output 1x BNC
1.0 Vp-p (75Ω), 2.2 Vp-p (10 kΩ) (SMPTE 12M standard)
Input / Output
Remote 1x LEMO 14-pin (female)
Control Panel 1x Control panel connector
General
Power Requirement 11-17V DC
Power Consumption 30W (when recording at 422 23.98PsF SR-Lite mode)
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -4° to +140° F (-20° to +60° C)
Operating Humidity 10-95% (no condensation)
Dimensions (HxWxD) 3.9 x 5.6 x 7.5" (14.1 x 9.7 x 19.0 cm)
Weight 4.2 lb (1.9 kg) – excluding control panel and SRMemory card
Packaging Info
Package Weight 6.85 lb
Box Dimensions (LxWxH) 11.0 x 11.0 x 7.2"
Note: 12-bit and uncompressed (4:4:4) support is forthcoming in 2012.
The user manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1 can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony solid state/hdd recorderss, where you can use our link to download the user manual for the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1.

The user manual lists all of the functions of the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1, all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony SR-R1 Portable Recorder for HD-SDI Cameras SRR1. User manuals are also available on the Sony website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
