Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - PTZ Cameras
  • Safety instructions
  • Startup and operation of the ptz cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE
Click to enlarge image

We recommend checking out our discussion threads on the Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE, which address similar problems with connecting and setting up PTZ Cameras Sony.



User manual for the Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE

The user manual for the Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE provides necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

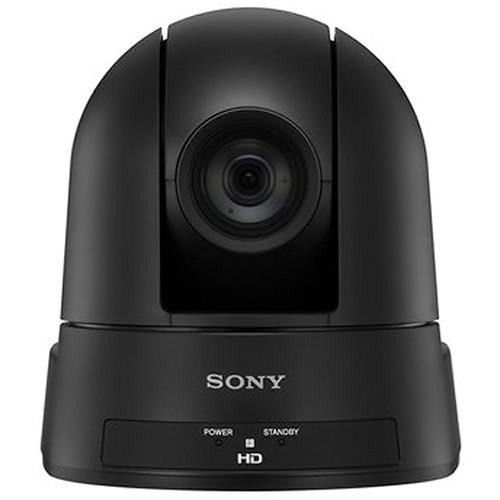

With a 30x optical zoom and remote control capabilities, the black Sony SRG300SE 1080p Desktop & Ceiling Mount Remote PTZ Camera, is suitable for medium to large venues such as lecture halls, auditoriums, houses of worship, and stadiums. The unit consists of the pan/tilt module and the camera head and lens. The SRG300SE captures HD video in 720p, 1080i, or 1080p at up to 59.94. It features a 1/2.8" Exmor CMOS sensor providing low light sensitivity of 1.4 lux. The camera comes with Sony's Wide-D for wide dynamic range, enhancing the image with View-DR, while XDNR provides digital noise reduction in both moving and still images.

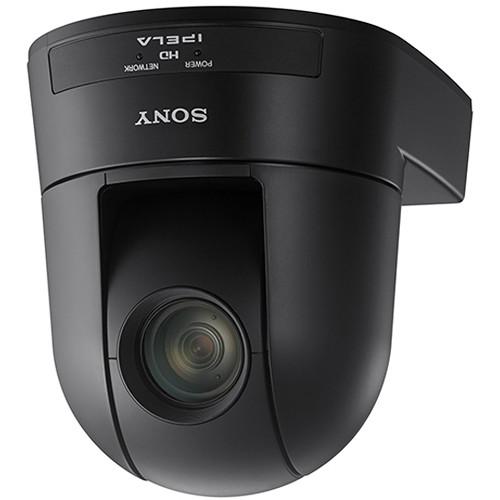

The SRG300SE is suitable for use on a desk, mounted to a tripod, or you can mount it to a ceiling using the included brackets. The camera also features an Image Flip option, which simplifies setting up the camera when it is mounted upside down. It features remote control operation of pan, tilt, zoom, focus, iris, shutter speed, and gain.

Remote operation is a major component of the SRG300SE's design, and the camera supports VISCA control protocols, as well as RS-232 and RS-422. You can program the camera with up to 16 preset positions, which is useful for repetitive events and productions. The small size and remote operation capabilities of the SRG300SE allow for placement where a manually operated camera and operator can not go.
If you own a Sony ptz cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony SRG300SE 1080p Desktop & Ceiling Mount Remote SRG-300SE:
Camera
Sensor 1/2.8" Exmor CMOS Image Sensor
Resolution Approx. 2.1 Megapixels
Signal System 720p 25/29.97/50/59.94
1080i 50i/59.94
1080p 25/29.97/50/59.94
Minimum Illumination 1.4 lx (50IRE, F1.6, 30 fps)
Signal to Noise Ratio 50 dB
Gain Auto, Manual
0 to 43 dB
Shutter Speed Range 1/10000 to 1/1 sec
Exposure Control Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright
White Balance Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual
Image Stabilization Selectable On/Off
Image Flip Selectable On/Off
ICR Auto
Wide-D Yes
Sync Internal
Audio Input: 1 x Mono mini jack
Output Format/Interface
HD Simultaneous 3G-SDI & IP H.264
Network Port:1 x RJ-45 (10BASE-T/100BASE-TX)
Audio 1 x RCA (Mono)
Camera Control RS-232
1 x VISCA In
1 x VISCA Out

RS-422
1 x VISCA

LAN
1 x RJ-45
Optical System
Lens Focal Length
f=4.3-129mm (f/1.6 to f/4.7)

Zoom Ratio
Optical: 30x
Digital: 12x

Minimum Object Distance
Wide: 0.39" (10 mm)
Tele: 47.2" (1200 mm) Horizontal Viewing Angle
65° at the Wide End of the Lens

Focusing System
Auto / Manual
Mechanical Specification
Pan/Tilt Pan Angle
-170 to +170°

Tilt Angle
-20 to +90°

Pan Speed
100°/sec
Tilt Speed
90°/sec
Presets VISCA: 16
Remote Control: 6
Mounting Options
Mounting Less than ±15° to the horizontal surface
Ceiling Mount Bracket 2 x Brackets Included
Desktop Mounting Install on a solid level flat surface, ensure camera does not fall
Tripod Mount 1 x 1/4"-20 threaded female receiver
General
Temperature Operating Temperature
32 to 104°F (0 to 40°C)

Storage Temperature
-4 to 140°F (-20 to 60°C)
Power Requirements 10.8 to 13.2 VDC
Power Consumption 16.8 W
Dimensions (WxHxD) 6.25 x 6.50 x 6.50" (157 x 164 x 164 mm)
Weight 3.1 lb (1.4 kg)
Packaging Info
Package Weight 6.25 lb
Box Dimensions (LxWxH) 12.5 x 11.2 x 9.4"
