User manual Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105

Operating instructions and pdf manual for use - Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105 User manual, User manual Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105, Sony, SRX-T105, 4K, SXRD, 5,500-Lumen, Projector, SRXT105,


User manual for Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105

Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 71 USD
We recommend checking out our discussion threads on the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105, which address similar problems with connecting and setting up Multimedia Projectors Sony.



User manual for the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105

The user manual for the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

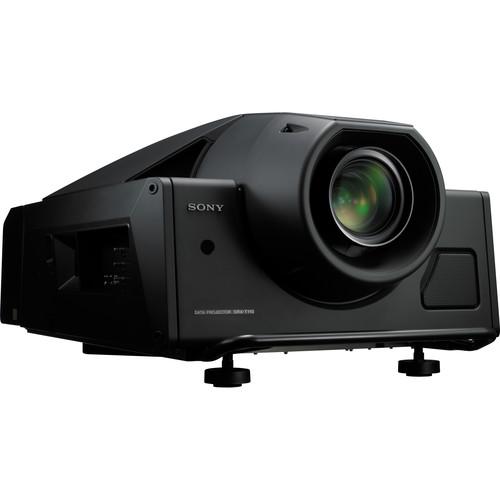

Show multiple high-definition images at once with the Sony SRX-T105 4K SXRD 5,500-Lumen Projector. It is equipped with three SXRD (Silicon X-tal Reflective Display) devices and delivers a resolution of 4096 x 2160 pixels, more than four times the resolution of consumer HDTV (1920 x 1080). It also allows 2K (2048 x 1080) images to be displayed simultaneously in four quadrants or on a twin side-by-side display. The projector has a contrast ratio of 2500:1 and provides a brightness of 5,500 lumens. It uses twin 1kWh Xenon lamps, combined with multiple gamma curves of 2.2, 2.6, and user-defined values. Through the GUI, these values are selectable, allowing you to adjust the color tone as you see fit.

The SRX-T105 operates quietly, thanks to an intelligent cooling fan system which adjusts the speed of the fans, turning off unnecessary fans based on the internal temperature. Since the fans aren't always running at full speed, or at all, they will produce overall less noise. Lenses are sold separately, so you can select the ones that are best for how you plan to use the projector. Like the lenses, the lamps are also sold separately. The SRX-T105 is designed for use in a wide range of applications, including command and control, computer visualization demonstrations, exhibitions for museums or planetariums, and more.
If you own a Sony multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105Download user manual for Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105
(PDF file, 1.17 MB)
Additional parameters of the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105:
Specifications
    Image Display
    Display System 3-Chip 1.55" / 39.37 mm LCD
    Native Resolution 4128 x 2176
    Supported Resolutions 600 x 1200
    1920 x 1080
    2048 x 1080
    3840 x 2160
    4096 x 2160
    Supported Formats None
    Format Not Specified By Manufacturer
    HDTV Compatibility Not Specified By Manufacturer
    Pixels 26,947,584
    Brightness Normal Mode: 5500 Lumens
    Projection Angle Not Specified By Manufacturer
    Uniformity Not Specified By Manufacturer
    Offset Not Specified By Manufacturer
    Aspect Ratio Not Specified By Manufacturer
    Contrast Ratio 2500:1
    Dynamic Contrast Ratio 4000:1
    DLP Link 3D None
    Supported 3D Formats None
    Color Range Not Specified By Manufacturer
    Scan Not Specified By Manufacturer
    Lens
    Focus Not Specified By Manufacturer

    Depends on lens used

    Lens None

    Depends on lens used; sold separately

    Lens Shift Not Specified By Manufacturer
    Zoom Not Specified By Manufacturer
    Throw Distance Not Specified By Manufacturer
    Throw Ratio Not Specified By Manufacturer
    Projection Size Not Specified By Manufacturer
    Features
    Keystone Correction None
    Picture-in-Picture None
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Projection Tilt Option Yes
    Built-in Speaker None
    Internal Memory None
    Closed Captioning None
    Picture Modes Not Specified By Manufacturer
    Input/Output Connectors
    Inputs/Outputs 2x DVI Video (Input)
    3x Input E (open for optional board) Expansion Slot
    Wireless LAN None
    Sync Compatibility Not Specified By Manufacturer
    General
    Lamp (Bulb) 2x Xenon

    Not supplied

    Replacement Lamp LKRX-105
    Light Source Not Specified By Manufacturer
    Color Temperature 9300K

    Selectable

    Watts Normal Mode: 2000 W

    Total

    Life Normal Mode: 1000 Hours
    Fan Noise Not Specified By Manufacturer
    Maximum Pixel Clock Not Specified By Manufacturer
    Remote Control Yes
    Security Not Specified By Manufacturer
    System Requirements None
    Languages Not Specified By Manufacturer
    Power Requirements 100-240 VAC, 50/60 Hz
    Battery None
    Input Current 30 A / 12.5 A
    DC Output Not Specified By Manufacturer
    Heat Dissipation Not Specified By Manufacturer
    Power Consumption Normal Mode: 3000 W
    Standby Mode: 40 W
    Altitude Not Specified By Manufacturer
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Humidity: 35 - 85%
    Storage
    -4 to 140°F (-20 to 60°C)
    Humidity: 10 - 90%

    No condensation

    Dimensions (WxHxD) 29.2 x 19.6 x 52.3" / 74.2 x 49.8 x 132.8 cm
    Weight 265.0 lb / 120.20 kg Excluding optional lamps and lens
    The user manual for the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony multimedia projectorss, where you can use our link to download the user manual for the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105.

    The user manual lists all of the functions of the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony SRX-T105 4K SXRD 5,500-Lumen Projector SRXT105. User manuals are also available on the Sony website under A/V Presentation - Projectors - Multimedia Projectors.
