User manual Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236

Operating instructions and pdf manual for use - Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236 User manual, User manual Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236, Sony, VPL-CX236, 4100-Lumen, XGA, DLP, Projector, VPL-CX236,


User manual for Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236

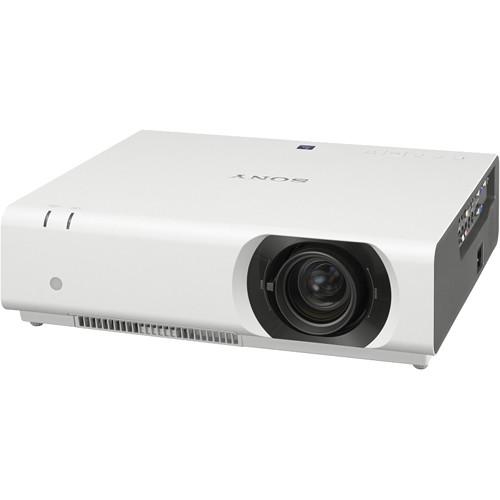

Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236, which address similar problems with connecting and setting up Multimedia Projectors Sony.



User manual for the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236

The user manual for the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Brighten up your presentations with the Sony VPL-CX236 4100-Lumen XGA DLP Projector. Its 4100 lumens of brightness combined with its 3100:1 contrast ratio will provide bright, detailed images even in rooms with some ambient light. The projector's 1024 x 768 XGA resolution is sufficient for reading text at most distances. It features a 1.66 to 2.41:1 throw ratio range for versatile placement, and its 1.5x manual zoom with manual focus will help you properly resize and focus your images.

The VPL-CX236 has an RCA composite, two VGA, and two HDMI inputs for convenient connectivity, plus a VGA and analog audio output to send video and audio to another display and speaker system, but the projector does have its own 10-Watt speaker built in if external speakers aren't available. It is controllable via Ethernet, RS-232, or the included IR remote, and also includes a VGA cable for instant connection.
If you own a Sony multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236Download user manual for Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236
(PDF file, 2.06 MB)
Additional parameters of the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236:
Image Display
Display System 3-Chip 0.63" / 1.60 cm LCD
Native Resolution XGA - 1024 x 768
Supported Resolutions Maximum: UXGA - 1600 x 1200
Format NTSC 3.58, 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480i @ 60 Hz
480p @ 60 Hz
576i @ 50 Hz
576p @ 50 Hz
720p @ 50 Hz
720p @ 60 Hz
1080i @ 50 Hz
1080i @ 60 Hz
Pixels 786,432
Brightness High Brightness Mode: 4100 Lumens
Normal Mode: 3100 Lumens
Low Brightness Mode: 2200 Lumens
Aspect Ratio Native: 4:3
Contrast Ratio 3100:1
Scan Horizontal: 19 - 92 kHz
Vertical: 48 - 92 Hz
Lens
Focus Manual
Lens Shift Vertical: ±5%
Horizontal: ±4%
Zoom Manual: 1.5x
Throw Ratio 1.66 - 2.41:1
Projection Size 40 - 300" / 101.60 - 762.00 cm (Max Diagonal: 300" / 762.00 cm)
Features
Keystone Correction Yes, Horizontal
Yes, Vertical
Built-in Speaker Yes, 10 W (Mono)
Closed Captioning Yes
Picture Modes Dynamic, Presentation, Standard
Input/Output Connectors
Inputs/Outputs 1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
2x 15-pin VGA Video (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
2x HDMI Audio/Video (Input)
1x Ethernet Control/Service
1x 15-pin VGA Video (Output)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Remote (Input/Output)
General
Lamp (Bulb) 1x UHP
Replacement Lamp LMP-C240
Watts 245 W
Life Low Mode: 3000 Hours
Normal Mode: 4000 Hours
Bright Mode: 5000 Hours
Remote Control Yes
Security Cable Lock Slot
Password Protection
Security Bar
Power Requirements 100-240 VAC, 50/60 Hz
Input Current 1.4 A / 3.6 A
Heat Dissipation 1194 BTU

Per hour

Power Consumption Bright Mode: 340 W
Normal Mode: 280 W
Eco Mode: 240 W
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 15.9 x 4.8 x 13.0" / 40.4 x 12.2 x 33.0 cm
Weight 12.125 lb / 5.50 kg
Packaging Info
Package Weight 18.0 lb
Box Dimensions (LxWxH) 22.0 x 18.0 x 10.0"
The user manual for the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony multimedia projectorss, where you can use our link to download the user manual for the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236.

The user manual lists all of the functions of the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony VPL-CX236 4100-Lumen XGA DLP Projector VPL-CX236. User manuals are also available on the Sony website under A/V Presentation - Projectors - Multimedia Projectors.
