User manual for Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W

Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W
Click to enlarge image

We recommend checking out our discussion threads on the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W, which address similar problems with connecting and setting up Multimedia Projectors Sony.



User manual for the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W

The user manual for the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

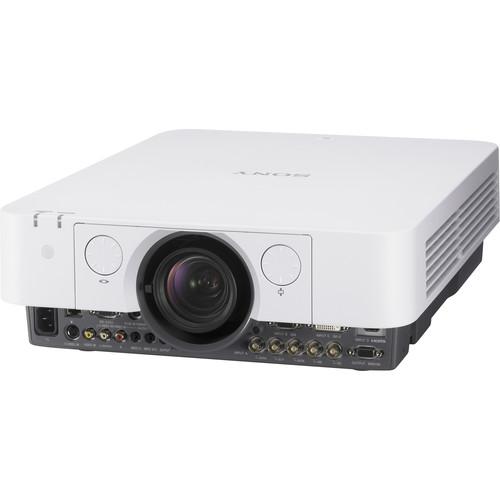

The white VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector from Sony uses a laser light source and 3LCD optical system to produce bright images with vivid colors. Its laser light has an approximate 20,000 hour life span in auto mode. This projector features a native WUXGA 1920 x 1200 resolution and has a notable 8000:1 contrast ratio, showcasing its ability to handle light and dark on-screen content. The VPL-FHZ55 also features a 1.6x and a 1.39 to 2.23:1 throw ratio. Furthermore, this projector can project up to a 600" image, providing an immersive viewing experience.

With HDMI, VGA, 5-BNC, composite video, and s-video inputs, the Sony VPL-FHZ55 is well equipped for external video sources such as Blu-ray players and PCs. Ethernet and RS-232C connections are onboard for optional control systems. This projector also supports optional external lenses and a ceiling mount. For viewing flexibility, the VPL-FHZ55 supports 360° tilt installation. It also incorporates a Auto Dimming mode, which is designed to balance light output and power consumption.
If you own a Sony multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/WDownload user manual for Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W
(PDF file, 2.22 MB)
Additional parameters of the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W:
Specifications
    Image Display
    Display System 3-Chip 0.76" / 19.30 mm LCD
    Native Resolution WUXGA - 1920 x 1200
    Supported Resolutions 640 x 350
    640 x 400
    640 x 480
    800 x 600
    832 x 624
    1024 x 768
    1152 x 864
    1152 x 900
    1280 x 960
    1280 x 1024
    1400 x 1050
    1600 x 1200
    1280 x 768
    1280 x 720
    1920 x 1080
    1366 x 768
    1440 x 900
    1680 x 1050
    1280 x 800
    1600 x 900
    1920 x 1200
    Format NTSC 3.58, 4.43
    PAL 60, M, N
    SECAM
    HDTV Compatibility 480i @ 60 Hz
    576i @ 50 Hz
    480p @ 60 Hz
    576p @ 50 Hz
    720p @ 50 Hz
    720p @ 60 Hz
    1080i @ 50 Hz
    1080i @ 60 Hz
    1080p @ 50 Hz
    1080p @ 60 Hz
    1080p @ 24 Hz
    Pixels 6,912,000

    1920 x 1200 x 3

    Brightness High Brightness Mode: 4000 Lumens
    Normal Mode: 3000 Lumens
    Aspect Ratio 16:10
    Contrast Ratio 8000:1
    Scan Horizontal: 14 - 93 kHz
    Vertical: 47 - 93 Hz
    Lens
    Focus Manual
    Lens Not Specified By Manufacturer
    Lens Shift Vertical: 0 -60%
    Horizontal: 32 -32%
    Horizontal: +32%
    Zoom Manual: 1.6x
    Throw Distance Not Specified By Manufacturer
    Throw Ratio 1.39 - 2.23:1
    Projection Size 40 - 600" / 101.60 - 1524.00 cm
    Features
    Keystone Correction Vertical: ± 30°
    Horizontal: ± 30°
    Picture-in-Picture Yes
    Ceiling Mountable Yes
    Rear Screen Projection Not Specified By Manufacturer
    Projection Tilt Option Yes
    Built-in Speaker None
    Closed Captioning Yes
    Input/Output Connectors
    Inputs/Outputs 1x 5-BNC Video (Input)
    1x 15-pin VGA Video (Input)
    1x DVI-D Video (Input)
    1x HDMI Video (Input)
    1x S-Video Video (Input)
    1x RCA Composite Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    2x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x RS-232C Control
    1x Ethernet LAN
    1x 1/8" (3.5 mm) Mini Control (Input)
    1x 15-pin VGA Video (Output)
    General
    Light Source Laser-phosphor
    Life AUTO Mode: 20000 Hours
    Remote Control Yes
    Security Not Specified By Manufacturer
    Languages Arabic
    Dutch
    English
    Finnish
    French
    German
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Polish
    Portuguese
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    Vietnamese
    Power Requirements 100-240 VAC, 50/60 Hz
    Input Current 4.6 A / 1.9 A
    Heat Dissipation 1528 BTU (AC 100 to 120V)
    1450 BTU (AC 220 to 240V)
    Power Consumption Normal Mode: 449 W
    Standby Mode (Normal): 8.5 W
    Standby Mode (Eco): .15 W

    100 to 120 VAC

    Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 20 - 80%
    Storage
    14 to 140°F (-10 to 60°C)
    Dimensions (WxHxD) 15.4 x 5.8 x 19.7" / 390.0 x 148.0 x 500.0 mm
    15.4 x 5.3 x 19.2" / 390.0 x 134.0 x 487.0 mm Without Protrusions
    Weight 25 lb / 11.34 kg
    Packaging Info
    Package Weight 31.44 lb
    Box Dimensions (LxWxH) 23.3 x 19.75 x 11.3"
    The user manual for the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony multimedia projectorss, where you can use our link to download the user manual for the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W.

    The user manual lists all of the functions of the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector VPLFHZ55/W. User manuals are also available on the Sony website under A/V Presentation - Projectors - Multimedia Projectors.
