User manual for the Soundcraft Si Expression 1 Digital Mixer 5035677

The user manual for the Soundcraft Si Expression 1 Digital Mixer 5035677 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

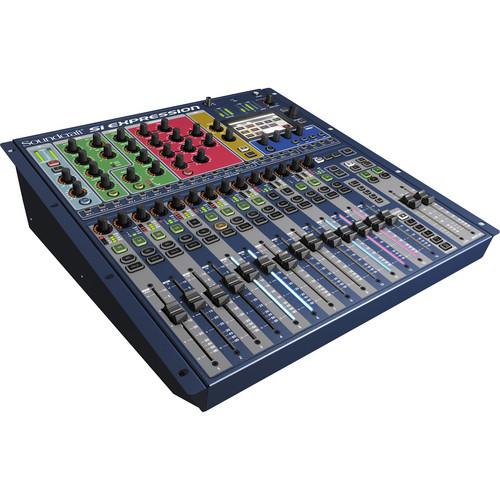

The Soundcraft Si Expression 1 Digital Mixer is a digital mixing console designed for live sound applications. The mixer features 16 microphone preamps, 4 line inputs, AES in, 4 internal stereo FX returns, 14 faders, a 64 x 64 expansion slot for additional routing possibilities, and 66 input processing channels.

Every input processing channel on the board can be routed through a dedicated high-pass filter, input delay, compressor, gate, and four-band equalizer. Each channel is also under the control of an automation system with four mute groups and illuminated faders to keep track of signal processing. For outputs, the mixer includes 16 balanced line outputs, a headphone monitor output, AES output, and the 64 x 64 expansion slot.

The mixer features 14 aux/group mixes that can be used as 14 mono mixes, or 8 mono and 6 stereo mixes, or any combination between. The mixer also utilizes 4 matrix mixes that allow you to assign any combination of inputs to any combination of outputs in either mono or stereo mode. In addition to the auxiliary/group and matrix busses, the unit features four mix busses dedicated to the device's internal Lexicon FX processing. Each bus mix includes a delay, compressor, a four-band equalizer, and a BSS graphic equalizer. Since the Lexicon FX processor is hardware based, using the effects does not influence the signal processing performance of the rest of the mixer.

For I/O expansion, the mixer will accept any of the Soundcraft Si series option cards including AES, AVIOM, CobraNet, Firewire/USB/ADAT, Dante CAT5, and optical MADI. The MADI card allows you to connect to multi-track recording systems, plug-ins such as WAVES, and Studer or Soundcraft stageboxes. Using a stagebox increases both the number of physical inputs, as well as the number of input processing channels. Every processing parameter utilizes a dedicated control so that you do not need to navigate through menu hierarchies to make adjustments. A row of global mode encoders above each channel gives you control over gain, high-pass filter parameters, and pan position.
If you own a Soundcraft digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft Si Expression 1 Digital Mixer 5035677 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft Si Expression 1 Digital Mixer 5035677:
Preamplifier 16 x Balanced XLR's with preamps
Faders 14
Frequency Response Mic/Line Input to any output ±1.5 dB, 20 to 20,000 Hz
THD Mic sensitivity -30 dBu: <0.01% at 1 kHz
Residual Noise Master output; no inputs routed, mix fader at 0 dB: <-86 dBu
Mic Input Noise (E.I.N.) -126 dBu (150 Ω source)
Mix Output Noise < -86 dBu
Input Noise 1 input to mix at unity gain: -84 dBu
CMRR Mic at 1 kHz: -80 dBu
Crosstalk Channel On attenuation: <120 db

Channel Fader attenuation: <120 db

Mic-Mic: -100 dB at 1 kHz, -85 dB at 10 kHz

Line - Line: -100 dB at 1 kHz, -85 dB at 10 kHz
Input Gain Microphone: -5 to 58 dB integrated pad design in 1 dB steps

Line Trim: -10 to 16 dB
Gate Threshold: -60 dBfs to -6 dBfs

Depth: -60 to -3 dB

Attack: 0.1 to 200 ms

Release: 20 to 500 ms

Side-chain HPF 22 to 2,500 Hz

Side-Chain LPF 160 to 20,000 Hz
Compressor
Threshold -52 dBfs to -6 dBfs

Ratio 1:1 to 20:1
Ratio 1:1 to 20:1
Attack 0.1 to 200 ms
Release 5 to 900 ms
Make-up Gain 0 to 24 dB
Equalizer
Equalizer Hi Mid and Low Mid: 22 to 20,000 Hz, ± 15 dB, Q 6 to 0.3

Shelf (HF): 800 to 20,000 Hz, ± 15 dB

Shelf (LF): 20 to 500 Hz, ± 15 dB

HPF: 40 to 1,000 Hz
Audio Delay User adjustable 1 sample to 500 ms
Graphic EQ 31 to 16 kHz, 1/3 octave
Digital I/O AES Sample Rate Converter range: 8 to 200 kHz

External World Clock In range: 48 kHz ±7 Hz (internal systems), ±3 Hz with stageboxes

Word Clock Out jitter: ±7 ns

Analogue Out for 0 dBfs: +21.5 dBu

Converter resolution: 24 bit

DSP resolution: 40 bit floating point
Latency Mic In to Line Out: <0.8 ms

Analogue In to AES Out: <0.6 ms

AES In to Line Out: <0.8 ms

AES In to AES Out; <0.5 ms

Stagebox Mic In to Stagebox: <0.9 ms
Input Level Mic Input: +22 dBu max

Line Input: +22 dBu max
Output Level Mix Output: +21.5 dBu max

Headphones at 150 Ω 300 mW (recommended impedance 32 to 200 Ω)
Input Impedance Mic Input: 3 kΩ

Line Input: 10 kΩ

AES Input: 110 kΩ

Word Clock used as Input: 110 kΩ
Output Impedance Outputs: 150 Ω (balanced), 75 Ω (unbalanced)

Word Clock used as Output: 50 Ω

Word Clock used as Input: 47 kΩ

AES Output: 110 Ω:
Lamp 12 VDC at 100 mA per socket
Power Consumption <130 w

AC Input Voltage range: 88 to 264 VAC auto sensing

AC Frequency range: 47 to 63 Hz
Operating Conditions Operating Temperature range: 41 to 113°F (5 to 45°C)

Humidity: 0 to 90% non condensing Ta= 104°F (40°C)

Storage Temperature range: -4 to 140°F (-20 to 60°C)
Dimensions (H x W x D) 6.70 x 19.0 x 20.5" (169 x 483 x 520 mm)
Weight 24.2 lb (11.0 kg)
Packaging Info
Package Weight 36.65 lb
Box Dimensions (LxWxH) 28.0 x 22.0 x 10.0"
