User manual for the Soundcraft Si Impact 40-Input Digital Mixing Console and 5056170
The user manual for the Soundcraft Si Impact 40-Input Digital Mixing Console and 5056170 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

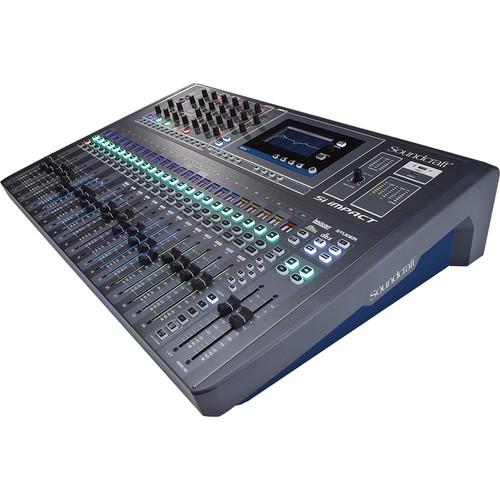

The Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.
Featuring studio-grade reverbs, delays, and modulations from Lexicon, dbx dynamics, and BSS graphic equalizers, the Si Impact comes fully equipped to mix everything from rock bands to stage plays. Also a 32-in/32-out USB audio interface, the Si Impact mixer delivers professional digital recording directly to your DAW, and comes with a free download of Ableton Live Lite 9.
If you own a Soundcraft digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Soundcraft Si Impact 40-Input Digital Mixing Console and 5056170 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft Si Impact 40-Input Digital Mixing Console and 5056170:
Specifications
Frequency Response
Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz
THD
Mic Sensitivity: -30 dBu < 0.01% @ 1 kHz
Noise
Residual Noise: -86 dBu Mic Input E.I.N.: 22 Hz to 22 kHz, Unweighted (max gain) 126 dBu (150 ohm source) Mix Noise, Masters at Unity: < -86 dBu 1 Input to Mix at Unity Gain: -84 dBu CMRR Mic @ 1 kHz (max gain): -80 dBu
Crosstalk
Crosstalk (@ 1 kHz) Channel ON Attenuation: < 120 dB Channel Fader Attenuation: < 120 dB Mic: -100 dB @ 1 kHz, -85 dB @ 10 kHz Line: -100 dB @ 1 kHz, -85 dB @ 10 kHz
Input Gain
Mic Gain: -5 to 58 dB integrated pad design, 1 dB steps Line Trim: -10 to +16 dB
Gate
Threshold: -60 to -6 dBfs Depth: -60 to -3 dB Attack: 0.1 to 200 ms Release: 20 to 500 ms Side-chain HPF: 22 Hz to 2.5 kHz Side-chain LPF: 160 Hz to 20 kHz
Compressor
Threshold: -52 to -6 dBfs Ratio: 1:1 to 20:1 Attack: 0.1 to 200 ms Release: 5 to 900 ms Makeup Gain: 0 to 24 dB
Equalization
All Bands: 22 Hz to 20 kHz, +/-15 dB, Q 6 to 0.3 Shelf (HF): 800 Hz to 20 kHz, +/-15 dB Shelf (LF): 20 Hz to 500 Hz, +/-15 dB HPF: 40 Hz to 1 kHz
Delay
User adjustable delay: 1 sample to 500 ms
Graphic EQ
31 Hz to 16 kHz 1/3 octave
Digital I/O
External Word Clock: In range 48 kHz +/-7 Hz (internal systems), +/-3 Hz with stageboxes Word Clock Out Jitter: +/-7 ns Analog Out for 0 dBfs: +21.5 dBu Converter Resolution: 24-bit DSP Resolution: 40-bit floating point
Latency
Mic In to Line Out: < 0.8 ms Analog In to AES Out: < 0.6 ms Stagebox Mic In to Stagebox: < 0.9 ms
Levels
Mic Input: +22 dBu max Line Input: +22 dBu max Mix Output: +21.5 dBu max Headphones: (@ 150 ohms) 300 mW (recommended impedance 75 to 200 ohms)
Impedance
Mic Input: 3 kOhms Line Input: 10 kOhms Outputs: 150 ohms (balanced), 75 ohms (unbalanced) Word Clock used as Output: 50 ohms Word Clock used as Input: 47 ohms AES Output: 110 ohms
USB
Max Current: 500 mA
Power
Consumption: < 130 W (typical) AC Input Voltage Range: 88 to 264 VAC auto sensing AC Frequency Range: 47 to 63 Hz
Operating Conditions
Operating Temperature Range: 41 to 113°F (5 to 45°C) Humidity: 0-90%, non-condensing Ta = 104°F (40°C) Storage Temperature Range: -4 to 140°F (-20 to 60°C)
