User manual Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475

Operating instructions and pdf manual for use - Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475 User manual, User manual Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475, Soundcraft, Spirit, Monitor, 2, 32, Channel, 12, Bus


User manual for Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475

Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475
  • Manufacturer: Soundcraft
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Soundcraft
  • Settings and expert assistance
  • Contact Soundcraft service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475, which address similar problems with connecting and setting up Sound Reinforcement Mixers Soundcraft.



User manual for the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475

The user manual for the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

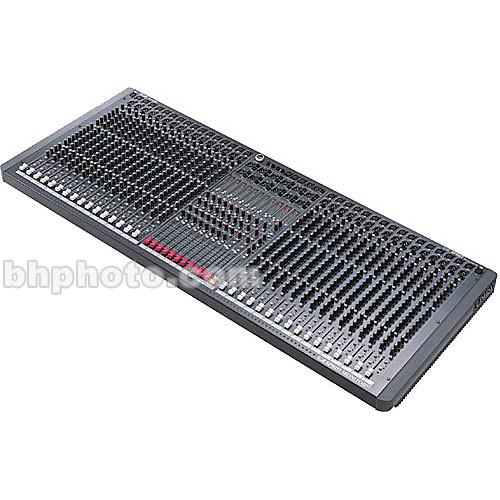

The Soundcraft / Spirit Monitor 2 32 Channel 12 Bus Monitor Mixer console is specifically designed for stage monitor mixing in touring and fixed installation applications. This compact, low cost console has 32 input channel frames and provides 12 bus outputs.
If you own a Soundcraft sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475:
Total # Of Inputs 32 Total
Mic/Line Inputs 32 Line: 1/4" Phone Balanced
32 Microphone: 3-pin XLR Balanced
Stereo Line Inputs No
In-Line Inputs/Returns No
AUX Sends No
AUX Returns 2 Dedicated FX Returns: 2x L/R 1/4" Phone
Inserts 1/4" TRS Phone - Input Channels, Group Inserts, Direct Outputs
BUS (Group) Outputs 12 Buss Sends: Balanced 3-pin XLR
9/10 & 11/12 - stereo paired with pan control
2 Trk Master I/O Wedge L/R: Stereo Paired 3-pin XLR Balanced
Group 9/10: Stereo Paired 3-pin XLR Balanced
Group 11/12: Stereo Paired 3-pin XLR Balanced
ALT I/O Direct Out: 3-pin XLR Balanced all input channels
Monitor Outputs Buss Sends
EQ Section Hi-Filter: 12kHz +/- 15dB
Hi-Mid: 550Hz - 13kHz, +/- 15dB
Low-Mid: 80Hz - 1.9kHz +/- 15dB
Low-Filter: 80 +/- 15dB
Solo/Mute Mute - All Input Channels
Channel Level Control 100mm Faders
Trim/Gain Control Rotary Control: +5dB to +60dB
Phantom Power +48V Phantom individually switched
Metering Bargraph meters on all bus outputs
Frequency Response Input to output, medium gain, via output
(High Pass Filter off)
15Hz - 45kHz < -3dB
25Hz - 25kHz < -1dB
Dynamic Range Not Specified by Manufacturer
Signal-to-Noise Ratio Output Noise: < -80dBu
Mic EIN: -129dBu
Total Harmonic Distortion (THD) @ 1kHz: < 0.005%
Power Supply External DCP200 PSU
specs not specified by manufacturer
Dimensions 3.5 x 23.3 x 57.3" (88 x 591 x 1455mm) HxDxW
Weight 81.41 lbs (37kg)
The user manual for the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundcraft users keep a unique electronic library for Soundcraft sound reinforcement mixerss, where you can use our link to download the user manual for the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475.

The user manual lists all of the functions of the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundcraft service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundcraft Spirit Monitor 2 32 Channel 12 Bus Monitor RW5475. User manuals are also available on the Soundcraft website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
