User manual for the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK

The user manual for the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

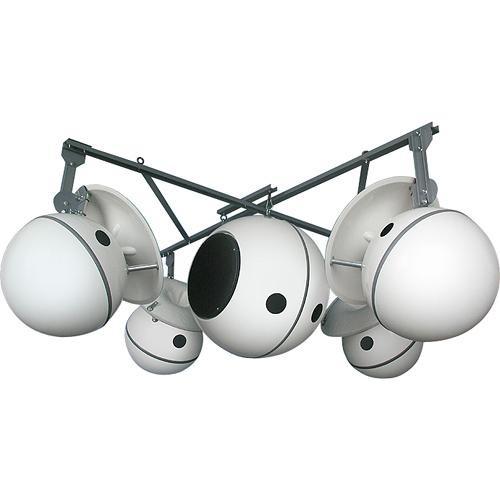

The Soundsphere Q-Combo 5 Loudspeaker & Subwoofer Kit creates a single source of sound by using four Q-12A loudspeakers in acoustically difficult spaces when more than one speaker is required. The Combo 5 kit includes four black Q-12A loudspeakers, a black Q-SB2 subwoofer, and the BK5 boom kit.

The Q-12A loudspeaker features an hemispherical coverage pattern. It provides high sensitivity (97 dB 1W/1m), and utilizes Soundsphere's Poly-Exponential Incidence Reflector. In addition, the Q-12A features a true coaxial 12" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-12A is housed in a fiberglass enclosure and offers 60 Hz - 16 kHz frequency response with 97 dB sensitivity, 121 dB SPL, and 250W of power.

The Q-SB2 800W subwoofer features dual 18" drivers capable of a 360° vertical/horizontal area of coverage, while maintaining an enhanced low frequency response. The Q-SB2 is housed in a fiberglass enclosure with plated steel hardware and offers 40 Hz - 200 Hz frequency response with a high sensitivity of 99 dB. This kit is ideal for large venues such as open public areas, gymnasiums, auditoriums, arenas, ice rinks, transportation terminals, factories, and nightclubs.
If you own a Soundsphere install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK:
Specifications
    • 4 x
      Q-12A 12" Loudspeaker (250W, Black)
      Sensitivity 97 dB SPL (1 W / 1 m)
      Maximum SPL 121 dB (250 W / 1 m)
      Power Handling 250 W RMS
      Frequency Response 60 Hz to 16 kHz ±6 dB
      Coverage 180° Vertical
      360° Horizontal
      Impedance 8 ohms
      Low Frequency Driver 12" (305 mm) true coaxial, treated pulp fiber

      LF and HF share common magnetic circuit

      High Frequency Driver 2.8" (71 mm) titanium compression driver
      Enclosure Material Fiberglass with gelcoat finish
      Regulations CE, RoHS
      Dimensions Height: 25" (635 mm)
      Sphere Diameter: 22" (559 mm)
      Reflector Diameter: 26" (660 mm)
      Weight 39 lb (17.6 kg)
    • Q-SB2 Sub-Bass Supplement (800W, Black)
      Power Capacity 800 W RMS
      Frequency Response 40 - 200 Hz ±6 dB
      Crossover Frequency 150 Hz (18 dB/octave) (recommended)
      Nominal Sensitivity 99 dB (1 W / 1 m)
      SPL 128 dB (800 W / 1 m)
      Impedance 4 ohms
      Coverage 360° Vertical/Horizontal
      Transducer 2 x 18" (457 mm)
      Voice Coil 4" (102 mm)
      Enclosure Material Fiberglass with gelcoat finish
      Input Connector Neutrik Speakon NL4MPR (4-pin) receptacle
      Dimensions Height: 27.75" (705 mm)
      Sphere Diameter: 32" (813 mm)
      Weight 82 lb (37.2 kg)
    The user manual for the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Soundsphere users keep a unique electronic library for Soundsphere install speakerss, where you can use our link to download the user manual for the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK.

    The user manual lists all of the functions of the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Soundsphere service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Soundsphere Q-Combo 5 Loudspeaker & Q-12 A COMBO 5 BLACK. User manuals are also available on the Soundsphere website under Pro Audio - Installation Sound - Install Speakers.
