User manual SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK

Operating instructions and pdf manual for use - SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK User manual, User manual SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK, SoundTube, Entertainment, IW31-EZ, In-Ceiling, Spe


User manual for SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK

SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK
  • Manufacturer: SoundTube Entertainment
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your SoundTube Entertainment
  • Settings and expert assistance
  • Contact SoundTube Entertainment service
  • Troubleshooting
  • Warranty information
  • Price: 117 USD

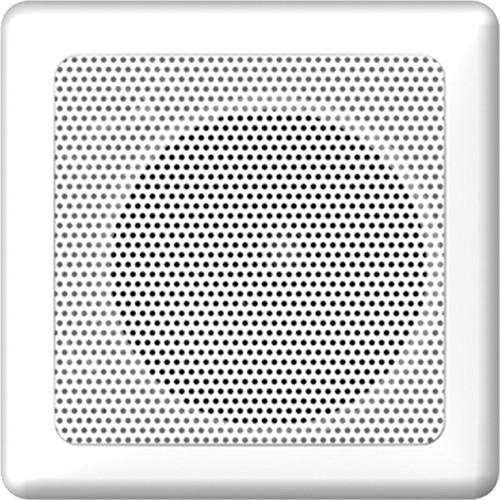

SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK
Click to enlarge image

We recommend checking out our discussion threads on the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK, which address similar problems with connecting and setting up Install Speakers SoundTube Entertainment.



User manual for the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK

The user manual for the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

The black IW31-EZ In-Ceiling Speaker from SoundTube Entertainment is a 3” in-wall speaker for applications requiring 8Ω impedance or distributed audio solutions. The speaker incorporates a low-profile grille with a total visible footprint of 5 in2 and an integrated backcan and driver design for compact installations in wall plates.

The in-wall speaker includes a 6-position tap switch with a voice coil direct position. It also includes mounting hardware and features a fast and secure constant-tension SpeedWing mounting system. All components in the speaker are completely weatherized for indoor and outdoor applications.

Engineered for easy installation and low-profile mounting for smaller venues, this in-ceiling speaker is suitable for retail, restaurants, conference rooms, educational facilities, transportation hubs, correctional facilities, or any setting where full-range intelligibility, low-profile design, and in-wall installation ease are paramount. For additional bass response down to 41 Hz (- 10 dB), the SM1001p powered 10” subwoofer (available separately) may be incorporated.
If you own a SoundTube Entertainment install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK:
System Type 3" (8 cm) full-range, in-wall (20 W transformer for 25/70.7/100 V or voice-coil direct)
Impedance 8 ohms (nominal)

Impedance listed per IEC 60268-5 with a minimum less than 80% of the nominal impedance.

Sensitivity 87.0 dB @ 2.83 V / 1 m
87.0 dB @ 1 W / 1 m

1 W / 1 m sensitivity determined using nominal impedance.

Frequency Response 130 Hz to 22 kHz (- 3 dB)
110 Hz to 22 kHz (- 10 dB)

Frequency response measured in half or full space as dictated by speaker mounting configuration.

Max. Program Power 40 W

Maximum program power is 3 dB above maximum continuous power.

Max. Continuous Power RMS 20 W

Continuous power rating, EIA-426-B test.

Max. Power SPL 100 dB @ 1 m

Maximum output based on maximum continuous power

Directivity Factor Averaged 100 Hz to 10 kHz, 2 kHz (Q)
Directivity Index Averaged 100 Hz to 10 kHz, 2 kHz (DI)
Tap Selector Six-position rotary switch or voice coil direct (transformer accessory only)
Transformer Taps 70.7 V Output
20 W (100 dB)
10 W @ (97 dB)
5 W @ (94 dB)
2.5 W @ (91 dB)
1.25 W @ (88 dB)

100 V Output
20 W (100 dB)
10 W (97 dB)
5 W (94 dB)
2.5 W (91 dB)

25 V Output
5 W (94 dB)
2.5 W (91 dB)
1.25 W (88 dB)
0.63 W (85 dB)
0.32 W (82 dB)
Transducer 3.0" (76.1 mm) Polypropylene driver with butyl rubber surround (full-range driver)
Enclosure Material ABS baffle, steel backcan
Grille Corrosion-resistant, powder-coated aluminum
Inputs Hardwire lead
Regulatory Approvals UL 1480 and 2043 pending
CE approved
Backcan Height 3.5" (88.9 mm)
Dimensions (H x W) 5 x 5" (127 x 127 mm)
Weight 4.0 lb (1.8 kg)
The user manual for the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SoundTube Entertainment users keep a unique electronic library for SoundTube Entertainment install speakerss, where you can use our link to download the user manual for the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK.

The user manual lists all of the functions of the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SoundTube Entertainment service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SoundTube Entertainment IW31-EZ In-Ceiling Speaker IW31-EZ-BK. User manuals are also available on the SoundTube Entertainment website under Pro Audio - Installation Sound - Install Speakers.
