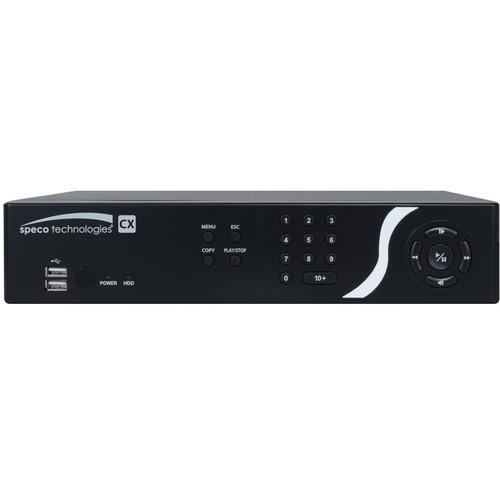

Click to enlarge image
|
We recommend checking out our discussion threads on the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB,
which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Speco Technologies.
|
User manual for the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB
The user manual for the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
Configure up to 16 cameras using the CX Series 16-Channel 960H DVR from Speco Technologies. Offering up to 960H recording resolution, the DVR allows the cameras to record at 480 fps and saves the footage to the preinstalled 1TB HDD. Additional HDDs can be installed for storing data and a USB drive can be used to backup and archive the footage. The HDMI and VGA video outputs allow an administrator to view the footage using a connected monitor. Equipped with 2-way audio capabilities, the DVR can record audio, as well as deter intruders using digital deterrence software for triggering an audio message. With custom scheduling abilities, each channel can be configured for normal and/or event-based recording. PC and Mac compatible, the DVR is designed to create a convenient surveillance system.
|
If you own a Speco Technologies digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB:
| Input Channels | 16 | | Input Level | Composite 1.0 Vpp / 75 ohms | | Signal Format | NTSC / PAL | | Video Loss Check | Yes | | Outputs | 1 x HDMI (1280 x 1024 / 1440 x 900 / 1920 x 1080)
1 x VGA (1280 x 1024 / 1440 x 900 / 1920 x 1080) | | Audio Codec | G.711 | | Input & Output | 4 x line input, 1 x live output | | Sensor Input | 4-channel (NC / NO selectable) | | Alarm Out | 1-channel out (by sensor, motion detection, and video loss) | | RS-232C | 1 (POS) | | RS-485 | 1 (POS, PTZ) | | Compression | H.264 | | Multi-Operation | Quadplex (play, record, network, backup) | | Resolution | 960H / D1 / CIF @ 480 fps | | Recording Modes | Continuous, schedule, motion, sensor, panic | | Recording by Channel's Resolution | Yes | | Motion Detection | Setup by grid | | Pre-Recording Function | 5 seconds to 30 minutes before an event | | Post Recording | 5 seconds to 30 minutes after an event | | Multi-Decoding | 1, 4, 9, PIP, 1+5, 1+7 | | Search Modes | Date/time, record tabe, calendar, event, motion, museum, EZ search | | Hard Disk Drives | Interface: SATA 2.0
Maximum Capacity: 3 TB
Internal HDD Number: 2
Preinstalled HDD: 1 TB | | Backup | USB flash drive, USB external HDD, network (video and still images) | | USB Ports | 2 x front | | Menu Display | GUI | | Input Method | Mouse, IR Remote Control | | Network Interface | 10/100/1000 Base-TX Ethernet | | Streaming | CIF @ 480 fps | | Viewer | PC Web Viewer: Internet Explorer (live, search, backup, PTZ, remote setup)
Mobile Viewer: Speco Mobile (live, search, PTZ, 2-way audio) | | Client Software | PC: Speco Central II and SecureGuard (live, search, backup, PTZ, remote setup)
Mac: Speco Remote for MAC and SecureGuard (live, PTZ) | | Software Upgrade | USB flash drive (not included), remote network | | Digital Zoom | Live: 2x, 3x, 4x
Playback: 2x | | Dynamic DNS | Yes (free Speco DDNS) | | Others | Digital Deterrent (up to 16 custom audio files), day light saving (DLS), EZ Record, S.M.A.R.T, internal beep, email notification, network time protocol (NTP) | | Operating Temperature & Humidity | Operating: 41 to 104°F / 5 to 40°C, 0 to 90% RH | | Storage Temperature | Storage: 14 to 122°F (-10 to 50°C) | | Power Supply Voltage | 12 VDC, 5 A | | Dimensions (WxHxD) | 38.7 x 7.9 x 29.9' / 11.8 x 2.4 x 9.1 m | | Weight | 6.8 lb / 3.1 kg | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 15.4 x 14.2 x 4.4" | |
The user manual for the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Speco Technologies users keep a unique electronic library
for Speco Technologies digital video recorders (dvrs)s,
where you can use our link to download the user manual for the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB.
The user manual lists all of the functions of the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Speco Technologies service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB. User manuals are also
available on the Speco Technologies website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
Question and answer discussion forum concerning user instructions and resolving problems with the Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB
Post new comment to Speco Technologies CX Series 16-Channel 960H DVR D16CX1TB
| Subject: video out put | | Date: 19.01.2022 19:03:24 | Author: Steve | | removed the VGA cable and installed an HDMI cable. Monitor (smart TV) recognized the device but says "no signal" Do I need to change a setting? | | Reply |
