User manual for the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2

The user manual for the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

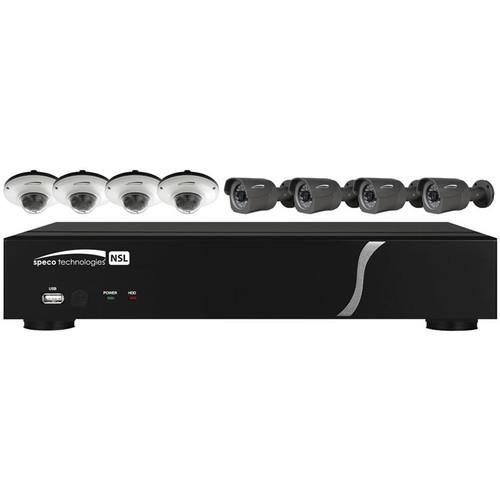

The ZIPL8BD2 Zipkit from Speco Technologies includes one 8-channel N8NSL NVR, four ZIP2B 2MP full HD 1080p outdoor IR bullet cameras, and four O2MD2W full HD 1080p 2MP indoor/outdoor mini dome IP camera.
If you own a Speco Technologies surveillance kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2:
Specifications
    Bullet Camera
    Image Sensor 1/2.8" 2.1 MP CMOS
    Maximum Resolution 1080p
    Minimum Illumination 0 lux @ f/2.5 (IR On)
    0.1 lux @ f/2.5 (IR Off)
    S/N Ratio 50 dB
    Shutter Speed 1/7 to 1/30,000 sec
    Exposure Control Automatic
    Motion Detection Yes
    Day/Night IR-cut filter
    IR LED 24
    IR Range 50' (15 m) (depending on scene reflection)
    IR Wavelength 850 nm
    White Balance Auto
    DNR 2D/3D
    Supported Resolutions 1920 x 1080 @ 30fps / 1280 x 720 @ 30 fps
    Compression H.264 (Main / Baseline profile)
    Bitrate Control CBR
    Streaming 2 simultaneous profiles
    Interface 10/100 Base-T
    Security User ID & password protection
    User Access 4 concurrent users
    Web Browser Support IE 8 and above
    Power Supply 802.3af PoE or 12 VDC
    Power Consumption 12 VDC, 360 mA (IR On)
    Operating Temperature -4 to 122°F (-20 to 50°C)
    Certifications FCC, RoHS
    Dimensions 2.64 x 6.25" (6.71 x 15.88 cm)
    Weight 15.36 oz (435.45 g)
    Dome Camera
    Image Sensor Progressive scan 1/2.9" CMOS, 2 MP
    Maximum Resolution 1920 x 1080
    Minimum Illumination f/2.0, 0.2 lux (0 lux with IR On)
    S/N Ratio 50 dB
    IR LED 12
    IR Range 30' (9 m) depending on scene reflection
    White Balance AWB
    Exposure Control Yes
    Digital Slow Shutter Yes
    WDR Control Yes
    Day/Night IR-cut filter
    DNR 2D/3D
    Supported Resolutions Main Profile: 1920 x 1080 / 1280 x 720 @ 30fps
    Compression H.264 (MP/BP), MJPEG
    Bitrate Control VBR, CBR
    Streaming 3 simultaneous profiles
    Ethernet 10/100 Mbps
    Power DC jack
    Protocols IPv4, TCP, UDP, RTCP, RTP, RTSP, HTTP, SMTP, FTP, DHCP, UPnP, NTP, DNS
    DDNS Speco DDNS (free of charge)
    Security User ID & Password protection, IP address filtering, HTTPS, digest authentication, user access log
    User Access 8 simultaneous users at D1 resolution (number of users may vary depending on resolution)
    PoE Standard (IEEE 802.3af)
    Analytics Motion detection (3 regions)
    Alarm Events FTP video file upload, email image upload
    Video Buffer Configurable pre-record & post-record
    Image Settings Text overlay, privacy mask
    Web Browser Support Windows (Internet Explorer 8 and up, Chrome, Firefox)
    Mobile Apps Speco OnSIP (iPhone, iPad and Android)
    Application PC: Speco NVR, SecureGuard
    Power Supply PoE, 12 VDC (power supply not included)
    Power Consumption 7 W with IR
    Operating Temperature -13 to 122°F (-25 to 50°C)
    Operating Humidity 8 to 80% RH
    Certifications FCC, RoHS
    Dimensions 4.80 x 2.17" (12.19 x 5.51 cm)
    Weight 14.40 oz (408.23 g)
    NVR Specifications
    Video Input:
    Maximum IP Channels: 8
    Resolution: Maximum 1920 x 1080

    Output:
    HDMI: 1 x HDMI (1280 x 720, 1920 x 1080)
    VGA: 1 x VGA (1280 x 720, 1920 x 1080)
    Audio Input:
    8 x IP camera (network)

    Output:
    1 x local output (RCA)

    Audio Codec:
    G.711
    Recording Compression: H.264 (baseline, main and high profile)

    Resolution: 240 fps @ 1080p and 720p

    Recording Mode: Continuous / motion / sensor / schedule / manual / continuous + motion / continuous + sensor

    Pre-Recording: Maximum 20 min

    Post-Recording: Maximum 60 min
    Playback Search: EZSearch, date/time, event, archive, log

    Multi-Decoding: 1, 4, 8

    Playback Speed: x0.25, x0.5, x2, x4, x8, x16, x32, x64
    Backup Media: USB drive, external HDD, network

    File Format: BMP, AVI, proprietary format

    Large Backup: Yes (maximum 24 hours)
    Storage HDD:
    1 x 2 TB

    USB:
    1 x front, 1 x rear
    Input Input Method: IR, mouse, keyboard controller
    Event Sensor In: 8 x IP camera (network)
    Motion Detection (From IP Camera): Yes
    Network 8 x LAN (IP camera, auto connection)
    WAN (IP Camera, Remote Access): 10/100Base-T
    Protocols: TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP
    Maximum Throughput: 20 Mbps
    Network Access Mobile Viewer: iPad / iPhone / Android
    PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari
    PC Client: SpecoTech Multi-Client Viewer and SecureGuard Plus CMS
    MAC Client: Speco Client for MAC and SecureGuard CMS
    Remote Setup and Upgrade: Yes
    Features Digital Deterrent: Default + up to 8 audio files
    Digital zoom, DLS (daylight savings), S.M.A.R.T, internal beep, multi-language, dynamic DNS, email notification, NTP (network time protocol)
    Voltage 48 VDC, 1.2 A
    Operating Temperature 41 to 104°F (5 to 40°C)
    Storage Temperature 14 to 122°F (-10 to 50°C)
    Dimensions 11.7 x 2.0 x 8.3" (27.7 x 5.1 x 21.1 cm)
    Weight 4.0 lb (1.8 kg)
    Packaging Info
    Package Weight 18.75 lb
    Box Dimensions (LxWxH) 17.5 x 17.3 x 11.4"
    The user manual for the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2 can be downloaded in .pdf format if it did not come with your new surveillance kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Speco Technologies users keep a unique electronic library for Speco Technologies surveillance kitss, where you can use our link to download the user manual for the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2.

    The user manual lists all of the functions of the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2, all the basic and advanced features and tells you how to use the surveillance kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Speco Technologies service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Speco Technologies One 8-Channel N8NSL NVR with Four ZIPL8BD2. User manuals are also available on the Speco Technologies website under Surveillance - Surveillance Video - Surveillance Kits.
