User manual for the STARDOT NetCam SC SDH Series SDH130VN-NL H.264 1.3MP SDH130VN-NL

The user manual for the STARDOT NetCam SC SDH Series SDH130VN-NL H.264 1.3MP SDH130VN-NL provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

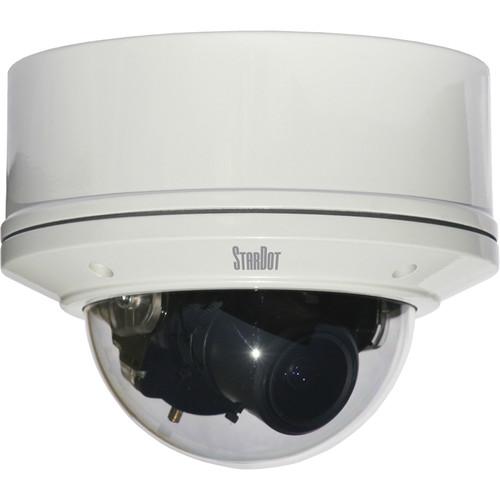

The StarDot Technologies NetCam SC SDH Series SDH130VN-NL H.264 1.3MP IP Day/Night Indoor/Outdoor Vandal-Resistant Dome Camera utilizes a 1/2.3" CMOS sensor and a 4 to 12mm varifocal lens to capture clear images in a maximum resolution of 1.3MP (1296 x 976) @ 30 fps. It features automatic day/night mechanical IR filter mechanism (with manual override) that allows recording in color with illumination levels as low as 0.3 lux. When the illumination levels go below 0.3 lux, the camera switches to the night mode and records in B&W. This multi-megapixel camera supports dual codec (H.264/MJPEG) video streaming at 1.3MP. In addition to streaming in H.264 and MJPEG, the camera simultaneously outputs analog video at up to D1 resolution via a BNC coaxial output. It features a 3-axis gimbal with 360° pan, 180° tilt, and 360° z-axis movement. Thanks to its IP66-rated weather-resistant and IK10-rated vandal-proof metal casing, the SDH130VN-NL dome camera can be installed outdoors and in high-risk areas. This dome camera accepts CS-mount lenses (not included), and C-mount lenses can also be used with the use of an adapter (not included).
If you own a STARDOT wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the STARDOT NetCam SC SDH Series SDH130VN-NL H.264 1.3MP SDH130VN-NL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the STARDOT NetCam SC SDH Series SDH130VN-NL H.264 1.3MP SDH130VN-NL:
Imaging
Imaging Sensor 1/2.3" color CMOS
Day/Night True day/night with mechanical IR filter
Light Sensitivity 0.3 lux color
Lens Mount CS mount (C-mount with adapter)

Adapter not included.

Maximum Resolution 1.3 MP (1296 x 976) @ 30 fps
Exposure Range 1/48,000 to 0.7 sec
BNC Output Yes
Image Controls Auto exposure, auto color balance, smart sharpening
Contrast Control Contrast adjustment, brightness adjustment, digital noise reduction, adaptive imaging
Flicker Filter Control Selectable
Privacy Mask Type Hardware mask, 16 x 16 zone
Motion Detection Hardware motion detection, 16 x 16 zone
Image Format JPEG, M-JPEG, adjustable quality/file size, H.264 up to 1.3 MP
Gimbal 3-axis camera gimbal with 360° pan, 180° tilt, and 360° z-axis
Data Transmission
Frame Rate Motion JPEG Up to 30 fps
Frame Rate H.264 Up to 30 fps, AVC / H.264 (ISO/IEC 14496-10)
H.264 Profile Baseline
System Latency <33 ms
Compression levels 30
Bit Rate VBR (Variable Bit Rate) and/or CBR (Constant Bit Rate) for H.264
Multicast Up to 8 streams
Interface Standard PSIA
Transfer Protocol FTP, HTTP, FTP, RTSP
Connectivity
Ethernet Connector 10/100-BaseT, RJ45, PoE 802.3af
BNC Output Output PAL and NTSC video
Serial Connection RS-232 serial, DB9 male, up to 115.2 kb/s
Power Auxiliary DC/Legacy AC/PoE
Alarm Input 1 x Fully isolated digital alarm input
Relay Output 1 x Fully isolated relay at 28 VDC, 2 A or 125 VDC, 0.5 A
Auto Iris DC auto iris connector
Network
Web Browser Interface Built-in Web server, Telnet server, email client and FTP client
Supported Protocols TCP/IP, HTTP, FTP, ARP, NTP, Telnet, Daytime, X/Y/Z modem
Security Password-protected user accounts for viewing and configuring NetCam SC
Physical
Enclosure IP66-rated weather-resistant and IK10-rated vandal-resistant dome
Operating System uClinux operating system Requires 32 MB DRAM, 4 MB flash memory, 32 MB imaging buffer
Operating Temperature -40 to 120°F (-40 to 50°C) without heater/blower
Power Requirements 12 VDC/24 VAC/PoE [via 802.3af approved PoE switch or PoE power injector (not included) (48 VDC)]
PoE Class 3
Power Consumption 4 W
Approvals EMI: FCC Class A, CE (EN55024)
Case Aluminum
Dimensions (W x H x D) 5.9 x 4.7" (150.0 x 120.0 mm)
Weight 44 oz (1,247 g)
