User manual StarTech Thunderbolt Docking Station TBDOCKHDPBC

Operating instructions and pdf manual for use - StarTech Thunderbolt Docking Station TBDOCKHDPBC User manual, User manual StarTech Thunderbolt Docking Station TBDOCKHDPBC, StarTech, Thunderbolt, Docking, Station, TBDOCKHDPBC, Video


User manual for StarTech Thunderbolt Docking Station TBDOCKHDPBC

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
StarTech  Thunderbolt Docking Station TBDOCKHDPBC
  • Manufacturer: StarTech
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Notebook Accessories - Docking Stations & Port Replicators
  • Safety instructions
  • Startup and operation of the docking stations & port replicators
  • Tips for setting up your StarTech
  • Settings and expert assistance
  • Contact StarTech service
  • Troubleshooting
  • Warranty information
  • Price: 230 USD
We recommend checking out our discussion threads on the StarTech Thunderbolt Docking Station TBDOCKHDPBC, which address similar problems with connecting and setting up Docking Stations & Port Replicators StarTech.



User manual for the StarTech Thunderbolt Docking Station TBDOCKHDPBC

The user manual for the StarTech Thunderbolt Docking Station TBDOCKHDPBC provides necessary instructions for the proper use of the product Computers & Solutions - Notebook Accessories - Docking Stations & Port Replicators.

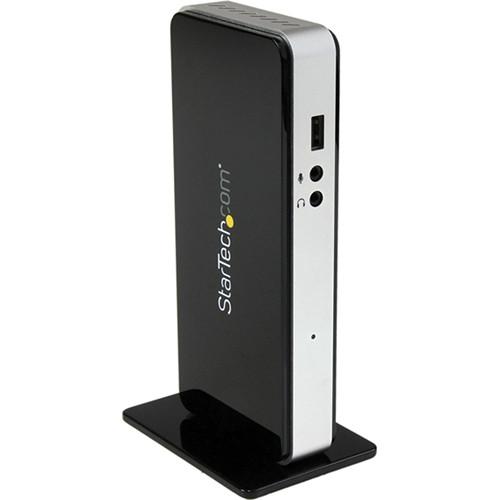

The Thunderbolt Docking Station from StarTech gives you a single connection point to your home or office workstation, for a flexible setup. The Docking Station adds Thunderbolt and HDMI video outputs, 10/100/1000 Mbps Gigabit Ethernet, a USB 3.0 hub, and 3.5 mm audio ports to your Thunderbolt-equipped laptop.
If you own a StarTech docking stations & port replicators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the StarTech Thunderbolt Docking Station TBDOCKHDPBC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the StarTech Thunderbolt Docking Station TBDOCKHDPBC:
Hardware
Bus Type Thunderbolt
Chipset ID Intel - CactusRidge_4C (Thunderbolt)
Intel - WGI210AT (LAN)
Fresco Logic - FL1100-EX (USB 3.0)
Parade Technologies - PS181 (Display)
Parade Technologies - PS8339B (Display)
NXP - CBTL05023 (Thunderbolt)
Texas Instruments - PCM2912A (Audio)
Industry Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
System Requirements Available Thunderbolt interface
Connectors
Connector Type 1 x HDMI (19-pin, female)
1 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 LAN (female)
2 x 3.5 mm Mini-Jack (female, 3 position)
2 x Thunderbolt (20-pin, female)
3 x USB 3.0 (Type A, 5 V, 2 A, 9-pin, female)
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate Thunderbolt: 10 Gbps
USB 3.0: 5 Gbps
Ethernet / Full Duplex: 2 Gbps
Maximum Digital Resolution Thunderbolt: 2560 x 1440
HDMI: 1920 x 1080
Software
OS Compatibility Windows: 8 (32- & 64-bit), 7 (32- & 64-bit)
Mac: OS X 10.8.3 or later
Power Requirements
Center Tip Polarity Positive
Current Input: 1.5 A
Output: 5 A
Voltage Input: 100 - 240 V AC
Output: 12 DC
Environmental
Humidity 5 ~ 95% RH
Temperature Operating: 41°F to 104°F / 5°C to 40°C
Storage: -4°F to 158°F / -20°C to 70°C
General
Cable Length 3.3' / 1 m
Color Black & silver
Enclosure Aluminum & plastic
LED Indicator Power
Dimensions 7.4 x 4.9 x 2.8" / 18.9 x 12.4 x 7.0 cm
Weight 14.5 oz / 411 g
Packaging Info
Package Weight 3.1 lb
Box Dimensions (LxWxH) 8.1 x 6.8 x 4.8"
The user manual for the StarTech Thunderbolt Docking Station TBDOCKHDPBC can be downloaded in .pdf format if it did not come with your new docking stations & port replicators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other StarTech users keep a unique electronic library for StarTech docking stations & port replicatorss, where you can use our link to download the user manual for the StarTech Thunderbolt Docking Station TBDOCKHDPBC.

The user manual lists all of the functions of the StarTech Thunderbolt Docking Station TBDOCKHDPBC, all the basic and advanced features and tells you how to use the docking stations & port replicators. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from StarTech service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the StarTech Thunderbolt Docking Station TBDOCKHDPBC. User manuals are also available on the StarTech website under Computers & Solutions - Notebook Accessories - Docking Stations & Port Replicators.
