User manual for the StarTech USB 3.0 Video Capture Device USB3HDCAP
The user manual for the StarTech USB 3.0 Video Capture Device USB3HDCAP provides
necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

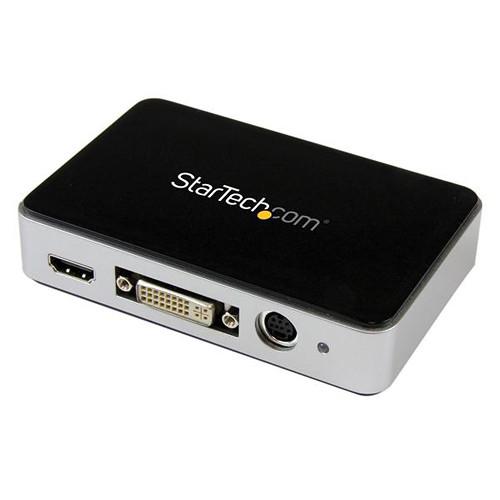

The StarTech USB 3.0 Video Capture Device connects to your Windows computer via USB 3.0 and enables your PC to capture multimedia content from A/V devices like a video camera, security system, POS terminal, and more. It features HDMI, DVI, VGA, S-Video, composite, and component connections that let you record at a frame rate of 60 fps with H.264 encoding. You can then archive the high-definition content in a format that is widely accepted to play on almost any device platform such as PC, Mac, iOS, and Android. In addition to this, you can edit the content as well as create software training and tutorial videos. Included along with the capture device is easy-to-use software that's compatible with NTSC and PAL systems, making it useful for professional video archiving applications where source media can change from project to project.
|
If you own a StarTech computer hardware and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the StarTech USB 3.0 Video Capture Device USB3HDCAP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the StarTech USB 3.0 Video Capture Device USB3HDCAP:
| Audio | HDMI or Component RCA Stereo | | Converter Type | Format converter | | Standards | NTSC, PAL-M, PAL-60, PAL
Video Encoding: MPEG 4 / H.264 | | Maximum Analog Resolutions | 1920 x 1080 (1080p/30/50/60) | | Maximum Digital Resolutions | Video Input: 1920 x 1080 (1080p/30/50/60)
Video Output: 1920 x 1080 (1080p/60) | | Supported Resolutions | 1080i/p, 720p, 576i/p, 480i/p | | Wide Screen Supported | Yes | | Connectors | 1 x USB 3.0 B (9-pin; SuperSpeed) female output
1 x HDMI (19-pin) female input
1 x DVI-I (29-pin) female input
1 x Stereo audio (2 x RCA) female input
1 x Component video (3 x RCA) female input
1 x Composite video (1 x RCA) female input
1 x VGA (15-pin; High Density D-Sub) female input
1 x S-Video (4-pin; Mini-DIN) female input | | Operating Systems Supported | Windows 8 / 8.1 (32/64-bit)
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Windows XP (32/64-bit) | | System Requirements | CPU: i3 Dual Core 2.8 GHz or higher
Memory: 2 GB
USB 3.0 host controller (Confirmed support with: Intel, Renesas [NEC], VIA, AMD, Fresco FL1100) | | Humidity | 20 to 80% RH non-condensing | | Temperature | Operating: 32 to 95°F / 0 to 35°C
Storage: 23 to 104°F / -5 to 40°C | | Dimensions (H x L x W) | 1.0 x 4.5 x 3.0" / 24.5 x 114.4 x 75.5 mm | | Weight | 3.7 oz / 106.0 g | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.6 x 6.0 x 2.1" | |
The user manual for the StarTech USB 3.0 Video Capture Device USB3HDCAP can be downloaded in .pdf
format if it did not come with your new computer hardware, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other StarTech users keep a unique electronic library
for StarTech computer hardwares,
where you can use our link to download the user manual for the StarTech USB 3.0 Video Capture Device USB3HDCAP.
The user manual lists all of the functions of the StarTech USB 3.0 Video Capture Device USB3HDCAP,
all the basic and advanced features and tells you how to use the computer hardware.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from StarTech service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the StarTech USB 3.0 Video Capture Device USB3HDCAP. User manuals are also
available on the StarTech website under Professional Video - Post Production - Computer Hardware.
