User manual for Studio Projects B1 Large-Diaphragm Studio Condenser Microphone
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Studio Projects
- Basic description and contents of package
- Product classification: Pro Audio - Recording - Large Diaphragm Condenser
- Safety instructions
- Startup and operation of the large diaphragm condenser
- Tips for setting up your Studio Projects
- Settings and expert assistance
- Contact Studio Projects service
- Troubleshooting
- Warranty information
- Price: 120 USD
|
We recommend checking out our discussion threads on the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone,
which address similar problems with connecting and setting up Large Diaphragm Condenser Studio Projects.
|
User manual for the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone
The user manual for the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone provides
necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

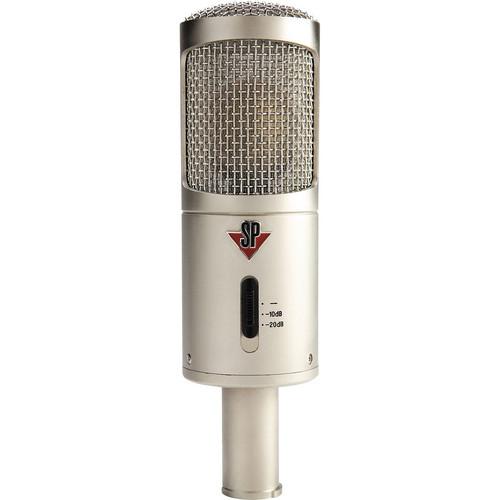

The B1 from Studio Projects is a large-diaphragm condenser microphone ideal for capturing instruments and vocals in recording applications. The B1's gold-sputtered 1" pressure-gradient transducer and transformerless circuitry provide high-quality audio with extremely low self noise.
The mic has a cardioid pickup pattern to reject off-axis sounds. It also provides 75 Hz and 150 Hz selectable filters to reduce low frequency rumble and hum. Selectable pads let you choose between -10 dB and -20 dB, perfect for recording extremely loud sound sources. The mic has a standard XLR connector and operates on 48V phantom power. A foam windscreen, shockmount, and zippered storage bag are included.
|
If you own a Studio Projects large diaphragm condenser and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone:
| Transducer | Condenser | | Diaphragm | 1" (25.40 mm) | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 82 dB | | Equivalent Noise Level | 12 dB A-Weighted | | Maximum SPL | 132 dB SPL | | Impedance | 200 ohms | | Load Impedance | 1000 ohms | | Sensitivity | -34 dB, re: 1 V/Pa | | Power Requirements | 48 V+/- 4 V | | Low-Cut Filter | Yes, 6 dB/Octave @ 150 Hz
Yes, 6 dB/Octave @ 75 Hz | | Pad | Yes, 10 dB
Yes, 20 dB | | Output Connectors | 3-Pin XLR | | Operating Current Consumption | 2.5 µA | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 14.6 x 8.3 x 3.6" | |
The user manual for the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone can be downloaded in .pdf
format if it did not come with your new large diaphragm condenser, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Studio Projects users keep a unique electronic library
for Studio Projects large diaphragm condensers,
where you can use our link to download the user manual for the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone.
The user manual lists all of the functions of the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone,
all the basic and advanced features and tells you how to use the large diaphragm condenser.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Studio Projects service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Studio Projects B1 Large-Diaphragm Studio Condenser Microphone. User manuals are also
available on the Studio Projects website under Pro Audio - Recording - Large Diaphragm Condenser.
