User manual for the StudioLogic Numa Concert - Professional Live NUMA-CONCERT
The user manual for the StudioLogic Numa Concert - Professional Live NUMA-CONCERT provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Digital Pianos.

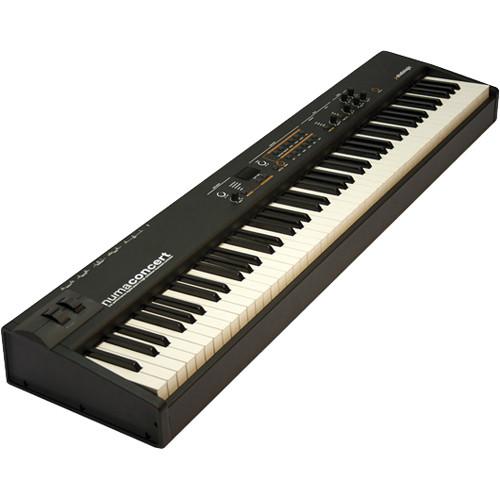

The Numa Concert from Studiologic is a professional live performance digital piano as well as a high-definition keyboard controller. The 88 keys feature Graded Hammer Action, a solid-wood key body, and ivory touch on the top surface of the white keys, while the key-action provides the authentic touch of a concert piano. and the triple-switch contact system allows for a fast repeating rate and total dynamic control.
The sources for the piano sounds include the recording of all 88 notes using professional equipment, aided by the expertise of skilled piano tuners and professional performers. The final sounds are based on nine dynamic levels (from pianissimo to fortissimo), and the various layers are interpolated in real time with cross filtering and loudness parameters. The Numa Concert physical modeling also reproduces the sympathetic resonance of an acoustic piano, as well as the strings resonance.
The Fatar TP/40 Wood keyboard features solid-wood white keys, three contacts per key and high-resolution velocity-measuring system that allows for total playing control at any dynamic level. The ivory-touch surface also adds good control of the performance. The three functions of a piano sound (strings, soundboard, and sympathetic resonances) can be controlled from off to maximum with ten intermediate steps.
|
If you own a StudioLogic digital pianos and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the StudioLogic Numa Concert - Professional Live NUMA-CONCERT in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the StudioLogic Numa Concert - Professional Live NUMA-CONCERT:
| Keyboard | 88 Keys, Graded Hammer Action (TP/40 wood)
Ivory-feel key surface
Triple-switch detection system | | Sound Engine | Stereo-Multi-Sample DSP with TrS (true sound) technology
128-voice maximum polyphony | | Sounds | Concert Grand
Stage Grand
E Piano 1
E Piano 2
E Piano 3
Clavi
Pad 1
Pad 2
Organ 1
Organ 2
Bass 1
Bass 2 | | MIDI | On/Off switch
MIDI volume knob
2 x MIDI zones (via keyboard split) | | Parameters | Program change
Bank select LSB
Bank select MSB
Channel
Octave | | Processing | Master Volume control
Bass control
Treble control
Balance control | | Settings | Modulation Fx
Off
Chorus
Phaser
Rotary
Tremolo
Reverb Fx:
Off
Room
Hall
Delay | | Connections | 1 x 1/8" TRS stereo mini Audio Input
2 x 1/4" TS Audio Out
2 x 1/4" TRS Headphone Out
1 x 1/4" TS Sustain (Hold) Pedal
1 x 1/4" TRS Expression Pedal
3 x 5-pin DIN MIDI In/Out/Thru
1 x USB Type B MIDI I/O (and software updates) | | Power Requirements | 110~240VAC, 50/60 Hz | | Dimensions (WxDxH) | 51.2 x 12.2 x 5.1" (1300 x 310 x 130 mm) | | Weight | 44.1 lb (20 kg) | |
