User manual SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL

Operating instructions and pdf manual for use - SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL User manual, User manual SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL, SunBriteTV, Pro, Series, DS-3214TSP, 32, DS-3214TSP-BL,


User manual for SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL

SunBriteTV Pro Series DS-3214TSP 32
  • Manufacturer: SunBriteTV
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your SunBriteTV
  • Settings and expert assistance
  • Contact SunBriteTV service
  • Troubleshooting
  • Warranty information

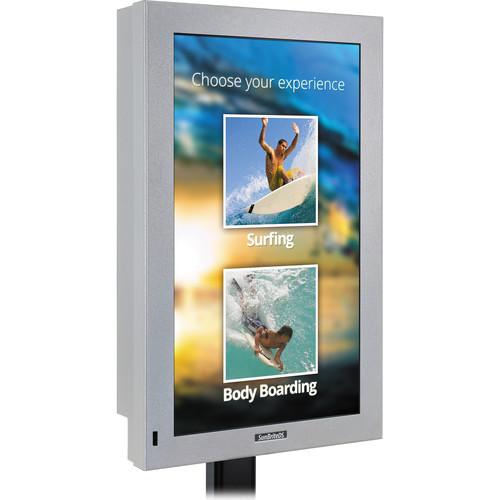

SunBriteTV Pro Series DS-3214TSP 32 SunBriteTV Pro Series DS-3214TSP 32
Click to enlarge image

We recommend checking out our discussion threads on the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL, which address similar problems with connecting and setting up Commercial Monitors SunBriteTV.



User manual for the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL

The user manual for the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

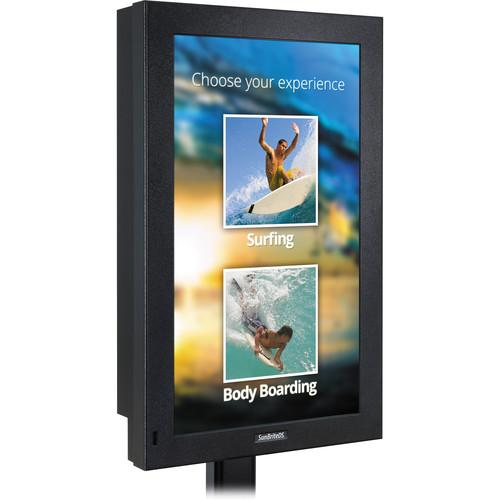

Display 1080p business content in outdoor environments with the black SunBriteTV Pro Series DS-3214TSP 32" Touchscreen Commercial LED TV. In addition to incorporating anti-reflective protective glass, this 32" touchscreen LED panel allows you to view content in direct sunlight. This TV also features a dust- and rain-resistant design, and has a 60 Hz refresh rate to reduce distortion on fast-moving images.

For connecting multiple video sources, this TV is equipped with two component video and HDMI inputs. A VGA input is also on-board for using this outdoor LED TV as a computer monitor. This model's 1300:1 contrast ratio showcases its ability to handle light and dark on-screen images. The SunBriteTV DS-3214TSP is designed to display digital signage content in portrait viewing orientation.
If you own a SunBriteTV commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for SunBriteTV Pro Series DS-3214TSP 32Download user manual for SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL
(PDF file, 0.83 MB)
Additional parameters of the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL:
Display
Screen Size (Diagonal) 32" (81.3 cm)
Backlight Type LED
Touchscreen Type Dispersive signal (3M Microtouch) touchscreen technology
Glass Anti-reflective protective glass
Brightness 400 nits with Extended Solar Tolerance technology
Pixel Resolution 1920 x 1080
Contrast Ratio 1300:1
Response Time 22 ms
Refresh Rate 60 Hz
Viewing Angle 176° x 176°
TV Formats 1080p, 1080i, 720p, 480p, 480i
Display Orientation Portrait
Video
Video System ATSC, QAM, NTSC
HDTV Compatibility 1080p, 1080i, 720p
TV Tuner Yes
Input/Output Connectors
Inputs 1 x RF
2 x HDMI
2 x Component Video
1 x S-Video
1 x Composite Video
1 x VGA 15-pin D-sub
3 x Stereo RCA
1 x 1/8" (3.5 mm) VGA audio
Outputs 1 x SPDIF Coaxial Digital
1 x 1/8" (3.5 mm) Headphone
Control 1 x RS232 Serial
1 x Discrete IR Control
1 x Concealed IR Window
Touchscreen 1 x USB (type-B for Microtouch HID touch interface)
Convenience
Digital Media Slot No
Remote Control Yes
VESA Compatibility 100 x 100 mm or 400 x 200 mm
Power
Power Requirements 100 to 240 VAC, 50/60 Hz, 2.5 A Max
Power Consumption Not Specified By Manufacturer
General
Operating Temperature 5 to 122°F (-15 to 50°C)
Non-Operating Temperature -40 to 140°F (-40 to 60°C)
Dimensions (WxHxD) With Optional Speaker Module: 20.7 x 32.1 x 6.3" / 52.6 x 81.5 x 16.0 cm
Weight Without Optional Speaker Module: 41.6 lb / 18.9 kg
With Optional Speaker Module: 46.5 lb / 21.1 kg
The user manual for the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other SunBriteTV users keep a unique electronic library for SunBriteTV commercial monitorss, where you can use our link to download the user manual for the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL.

The user manual lists all of the functions of the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from SunBriteTV service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the SunBriteTV Pro Series DS-3214TSP 32" DS-3214TSP-BL. User manuals are also available on the SunBriteTV website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
