User manual Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL

Operating instructions and pdf manual for use - Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL User manual, User manual Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL, Swedish, Chameleon, SC4:, SMALL, Shoulder, Support, SC4:SMALL,


User manual for Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL

Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL
  • Manufacturer: Swedish Chameleon
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs
  • Safety instructions
  • Startup and operation of the camcorder supports & rigs
  • Tips for setting up your Swedish Chameleon
  • Settings and expert assistance
  • Contact Swedish Chameleon service
  • Troubleshooting
  • Warranty information
  • Price: 487 USD
We recommend checking out our discussion threads on the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL, which address similar problems with connecting and setting up Camcorder Supports & Rigs Swedish Chameleon.



User manual for the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL

The user manual for the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs.

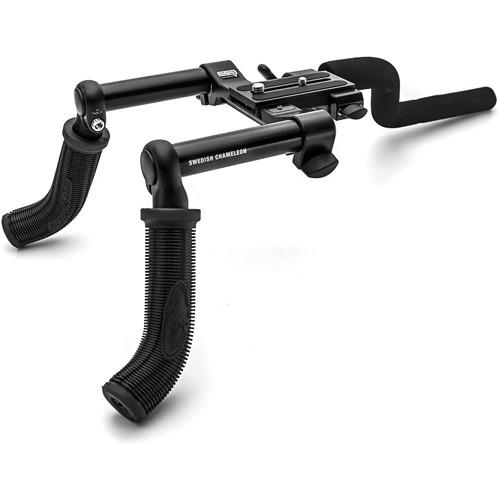

The Swedish Chameleon SC4: SMALL Shoulder Support is a lightweight run and gun rig with a sliding (dovetail) quick release plate and curved handles.

SC4: SMALL is an entry-level support that can be easily upgraded to an SC4: MEDIUM or SC4: LARGE as your needs grow. It fits DSLRs or boxstyle videocameras and is also compatible with most cages. The SC4: SMALL can be assembled for left-hand or right-hand use.

The SC:ROD S-SHAPED 15 x 400mm CC110 consists of a lightweight, simple, foam-dressed shoulder piece. Depending on how you rotate the rod you can make vertical adjustments (chest to eye level) of as much as 22cm. You can choose to keep the rod under your arm, lean it on your shoulder, or detach it completely from the support. Having the rig resting on your shoulder instead of pressing it towards your chest reduces arm fatigue and gives you a third stabilization point that does wonders for reducing shakiness.

The S-Shaped Rod is connected to the SC4:DT CAMERA QR PLATE by a SC4:DT CLAMP SINGLE ROD 15mm; this clamp can be positioned for both left-hand or right-hand shooting. The clamp simply slides onto the plate and is secured with a knob.

The SC4:DT CAMERA QR PLATE is the core of the SC4:SMALL since both the SC4:DT CLAMP SINGLE ROD 15mm and the SC4:DT HANDLES UNIT are attached to it. This makes it fast to go from no rig/tripod setup to a full shoulder setup - just keep the SC4:DT CAMERA QR PLATE attached to the camera. The plate is Manfrotto 501PL compatible.

If your camera only has one mounting hole, use the included SC4:DSLR FIXATION PLATE. The plate's anti-skid rubber together with provided pins creates an anti-twist system to keep the camera from rotating on any quick release plate. It has 2 x 1/4” and 2 x 3/8” threaded holes for mounting of the quick release plate. Two holes at the back of the plate enable mounting of viewfinder frames and extra anti-rotation bracket (sold separately).

The SC4:DT HANDLES UNIT consists of a dovetail dual 22mm rod clamp, two 22 x 130mm rods, and two curved handles with rubber grip. It has a wide distance of 140mm from center to center giving you roll stability and a comfortable arm position. The 22mm handle rods can be adjusted horizontally and rotated to always allow for a perfect position of the handles. You can also turn the handles straight up creating a v-rig for low-down shooting. The SC4:DT HANDLES UNIT easily slides onto the SC4:DT CAMERA QR PLATE and is firmly secured by a knob.

This rig is made from 7075 CNC-machined aluminum.
If you own a Swedish Chameleon camcorder supports & rigs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL:
Weight 1.70 lb (0.77 kg)
Packaging Info
Package Weight 2.95 lb
Box Dimensions (LxWxH) 17.2 x 6.3 x 5.4"
The user manual for the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL can be downloaded in .pdf format if it did not come with your new camcorder supports & rigs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Swedish Chameleon users keep a unique electronic library for Swedish Chameleon camcorder supports & rigss, where you can use our link to download the user manual for the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL.

The user manual lists all of the functions of the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL, all the basic and advanced features and tells you how to use the camcorder supports & rigs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Swedish Chameleon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Swedish Chameleon SC4: SMALL Shoulder Support SC4:SMALL. User manuals are also available on the Swedish Chameleon website under Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs.
