User manual for the Switronix Recon Wireless ULTRA V-Mount RECV-ULTRA

The user manual for the Switronix Recon Wireless ULTRA V-Mount RECV-ULTRA provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.

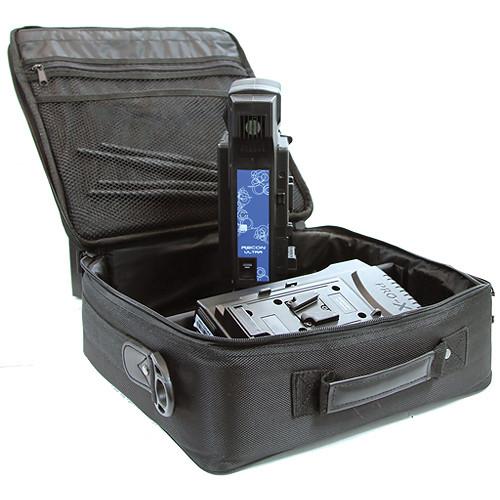

The Switronix Recon Wireless ULTRA V-Mount is a transmitter and receiver set that wirelessly transfers HD video, along with embedded sound, just over 160 feet from a camera to a field monitor. The data is transferred uncompressed and with a latency of less than a millisecond, allowing real-time monitoring in high quality. Whatever is being shot can be viewed as its being captured. The transmitted data is encrypted for safety.

Power is by a V-mount battery or by DC input via a 4-pin XLR connector. If you have both a battery and a power supply connected, a back-up power failure function will switch to the battery if the power supply is accidentally disconnected. The batteries and power supply are not included. Adding further reliability, a 5.1 - 5.9GHz frequency rate automatically adjusts frequencies in case of interference with another RF system, and an external antenna further supports a stable connection.

The Recon Ultra is equipped with HDMI and SDI inputs and outputs and with a built-in HDMI to HD-SDI converter. The quality of data supported is fully uncompressed 1080 true cinema video with embedded sound. Also, the Recon automatically detects and supports both PAL and NTSC.
If you own a Switronix wireless transmission systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Switronix Recon Wireless ULTRA V-Mount RECV-ULTRA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Switronix Recon Wireless ULTRA V-Mount RECV-ULTRA:
Specifications
    Transmission Distance 164 ft in open space (50 m)
    98 ft through walls (30 m)
    Latency Less than 1 millisecond
    Inputs/Outputs Transmitter:
    (1) HDMI input
    (1) HD/SDI input
    (1) HD/SDI loop through output

    Receiver:
    (1) HDMI output
    (2) HD/SDI outputs
    Resolutions 1080p: 23.98psf, 24p, 25p, 25psf, 29.97p
    1080I: 50i, 60i
    720p: 24p, 25p, 50p, 60p
    Supported Formats SD: 480i, 576i
    SDSDI: 525/59.94i (NTSC equivalent)
    625/50i (PAL equivalent)
    HDMI: HD 1080i, HD720p and NTSC/PAL
    Frequency 5.1GHz - 5.9GHz
    Battery Type V-mount
    Dimensions Transmitter/Receiver: 6.14 x 8 x 3" (15.6 x 20.3 x 7.6 cm)
    Transmitter/Receiver Antenna: 8" (20.3 cm)
    Weight 1.8 lbs (.8 kg)
    Packaging Info
    Package Weight 8.2 lb
    Box Dimensions (LxWxH) 14.3 x 14.1 x 6.6"
    Recon Wireless Units Demo
