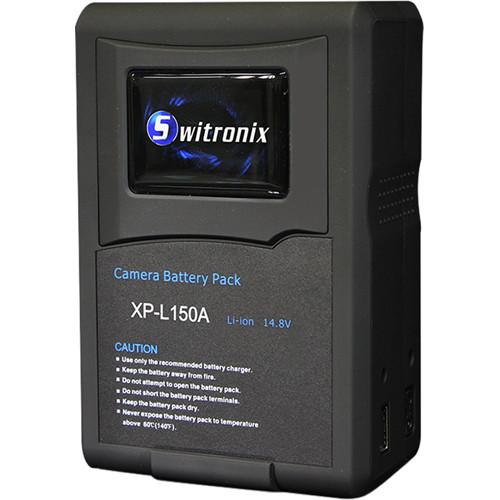

Click to enlarge image
We recommend checking out our discussion threads on the Switronix XP-L150A 14.8V Gold-Mount Lithium-Ion Battery XP-L150A,
which address similar problems with connecting and setting up On Camera Batteries Switronix.
User manual for the Switronix XP-L150A 14.8V Gold-Mount Lithium-Ion Battery XP-L150A
The user manual for the Switronix XP-L150A 14.8V Gold-Mount Lithium-Ion Battery XP-L150A provides
necessary instructions for the proper use of the product Professional Video - Batteries & Power - On Camera Batteries.
The Switronix XP-L150A features a 150Wh capacity and weighs only about 1/2 lb more than the 90Wh XP-L model. This 14.8V, lithium-ion, Gold-Mount battery has the brick-type, stocky design with ergonomic fingergrips common to Switronix batteries, and is built with protection circuits providing for safety and reliability. It supports a maximum load of 7A and offers a D-Tap port for powering 12V accessories and a USB port capable of outputting up to 3A at 5V.
This battery automatically detects the camera load and calculates run-time based on present operating conditions, and displays remaining power via a 4-LED gauge on the side. The nominal run-time is 6 hours at an estimated 25W load, so most camcorders can be powered for over 5 hours.
If you own a Switronix on camera batteries and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Switronix XP-L150A 14.8V Gold-Mount Lithium-Ion Battery XP-L150A in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Switronix XP-L150A 14.8V Gold-Mount Lithium-Ion Battery XP-L150A:
Specifications
Output Voltage
14.8 V
Mount Type
Gold-Mount
Chemistry
Lithium-ion
Capacity
150 Wh, 10.3 Ah
Max Load
7 A
Nominal Runtime
With 25 W Load: 6 hours
Accessory Ports
1 x D-Tap for 12 V accessories 1 x USB outputting up to 3 A at 5 V
