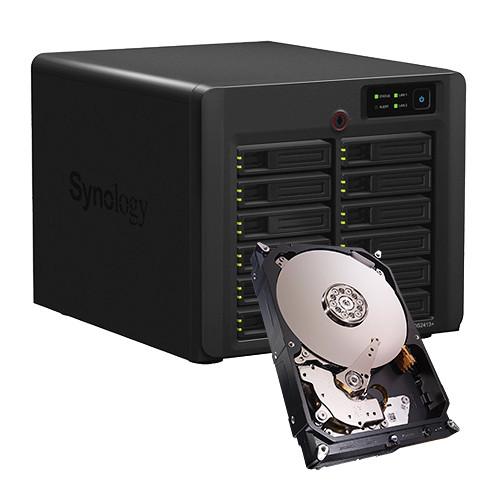

Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS
Click to enlarge image
We recommend checking out our discussion threads on the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS, which address similar problems with connecting and setting up Network Attached Storage Drives Synology.


User manual for the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS

The user manual for the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

This B&K Kit provides you with a Synology DiskStation DS2413+ Twelve-Bay NAS Server that manages the twelve included 2TB 3.5" hard drives to centralize your data in one location. This kit delivers a total storage capacity of 24TB, offering ample space to share content across your network. Each of the drives is suited for NAS environments by reliably running 24/7. Additionally, the Synology DiskStation DS2413+ can configure the drives in a RAID mode to further enhance the performance of these drives as well as protect your data.

The Synology DiskStation DS2413+ NAS Server features a 2.13 GHz dual-core processor and 2GB of DDR3 RAM to run programs and organize data. It sports two Gigabit LAN connectors with failover support that deliver data even if one LAN line fails to work. Twelve bays house the 2TB hard drives and have hot-swapping support, which lets you remove or install a drive while the DS2413+ is on. You can also link the DS2413+ with an optional DX1211 expansion unit and seamlessly scale your maximum storage capacity by up to 24 drives. These features are a welcome storage solution for medium-sized offices looking to store their data safely and securely, or for individuals with large storage needs who are looking for a comprehensive storage package.
If you own a Synology network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS:
Specifications
  • Synology DiskStation DS2413+ 12-Bay NAS Server
    CPU Dual Core 2.13 GHz with Floating Point Processor
    Memory DDR3 2 GB (Expandable up to 4 GB)
    Internal HDD 3.5" or 2.5" SATA(II) X 12 (hard drive not included)
    Maximum Internal Capacity 48 TB (4 TB HDD X 12) (Capacity may vary by RAID types)
    External HDD Interface USB 3.0 Port X 2, USB 2.0 Port X 4, Expansion Port X 1
    LAN Gigabit X 2
    Link Aggregation Yes
    Applications File Station
    • Virtual Drive
    • Remote Folder

    Backup Solutions
    • Network Backup
    • Local Backup
    • Desktop Backup (Windows: Synology Data Replicator 3, Mac: Apple Time Machine backup application)
    • Shared Folder Sync - Max task number: 8
    • Configuration Backup

    Mail Server
    • Supported Protocols: POP3, SMTP, IMAP

    FTP Server
    • Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log

    Web Station
    • Virtual Host (up to 30 websites)
    • PHP/MySQL
    • 3rd party Applications Support.

    Print Server
    • Max Printer #: 2
    • Printing Protocols: LPR, CIFS, IPP, Apple AirPrint, Google Cloud Print, Multi Functional Print Server (for Windows PC only)

    iOS/Android Applications
    • DS photo+
    • DS audio
    • DS cam
    • DS file
    • DS finder
    • DS download (Only available on iOS)
    • DS video (Only available on iOS)

    Windows Phone Applications
    • DS audio
    • DS finder
    • DS photo+
    General Networking Protocols
    • CIFS
    • AFP
    • NFS
    • FTP
    • WebDAV
    • CalDAV
    • iSCSI
    • Telnet
    • SSH
    • SNMP
    • VPN (PPTP, OpenVPN)

    File System
    • EXT4
    • EXT3 (External Disk Only)
    • FAT (External Disk Only)
    • NTFS (External Disk Only)

    Storage Management
    • Max File System Size: 108TB
    • Max Internal Volume #: 512
    • Max iSCSI Target #: 32
    • Max iSCSI LUN #: 256
    • Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
    • RAID Migration: Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6 • Volume Expansion with Larger HDDs: Synology Hybrid RAID, RAID 1, RAID 5, RAID 5+Spare, RAID 6
    • Volume Expansion by Adding a HDD: RAID 5, RAID 5+Spare, RAID 6
    • Synology Expansion Unit Support: DX1211

    File Sharing Capability
    • Max User Accounts: 2048
    • Max Groups: 256
    • Max Shared Folder: 256
    • Max Concurrent CIFS/AFP/FTP Connections: 512

    Windows Access Control List (ACL)


    Windows AD Domain Integration
    • Domain Users login via Samba/AFP/FTP/File Station Virtualization
    • VMware vSphere 5
    • VMware vSphere 4
    • Microsoft Hyper-V
    • Citrix Ready

    Security
    • FTP over SSL/TLS
    • IP Auto-Block
    • Firewall
    • Encrypted Network Backup over Rsync
    • HTTPS Connection

    Management
    • Auto DSM Upgrade
    • Administrator Group
    • Push Notification - MSN/Skype/Mobile Devices
    • Email/SMS Notification
    • Customized User Quota
    • Syslog Support
    • DDNS Support
    • IPv6 Support
    • VLAN Support
    • PPPoE
    • Hotspot
    • Resource Monitor
    • Connection Manager
    • UPS Management
    • Scheduled Power On/Off
    • Custom Management UI HTTP/HTTPS Ports

    HDD Management
    • HDD Hibernation
    • S.M.A.R.T.
    • Dynamic Bad Sector Mapping

    Utilities
    • Synology Assistant
    • Synology Data Replicator

    Supported Clients
    • Windows XP onward
    • Mac OS X 10.5 onward
    • Ubuntu 9.04 onward

    Supported Browsers
    • Chrome
    • Firefox
    • Internet Explorer: 8, 9
    • Safari (MAC): 5
    Environmental Requirements • Operating Temperature : 5 - 35°C / 40 - 95°F
    • Storage Temperature : -10 - 70°C / 15 - 155°F
    • Relative Humidity : 5% - 95% RH
    • Maximum Operating Altitude : 6,500'
    • Noise Level : 21.5 dB(A)
    • RoHS Compliant
    Electrical Requirements • AC Input Power Voltage: 100V to 240V AC
    • Power Frequency: 50/60 Hz, Single Phase
    • Power Consumption: 111.1W (Access); 41.8W (HDD Hibernation)
    Certifications FCC Class B, CE Class B, BSMI Class B
    Dimensions 10.62 x 11.81 x 13.39" / 270 x 300 x 340 mm
    Weight 21.9 lbs / 9.93 kg
    Packaging Info
    Box Dimensions (LxWxH) 18.9 x 17.4 x 17.1"
  • 12 x Seagate 2TB NAS SATA III 3.5" Internal HDD (OEM)
    Interface SATA 6 Gb/s
    Halogen Free Yes
    NASWorks
    Number of Drive Bays Supported 1 to 8
    Dual-Plane Balance Yes
    Vibration Tolerance for Small NAS Yes
    NASWorks Error Recovery Control Yes
    Performance
    Cache 64 MB (multisegmented)
    SATA Transfer Rates Supported 6.0 Gb/s
    Spindle Speed (RPM) Low-RPM spindle speed
    (Actual spindle speed not specified by manufacturer)
    Power-On or Standby to Ready <17 sec (typical)
    Max Sustained Data Rate, OD Read 159 MB/s
    Voltage
    Voltage Tolerance, Including Noise (5V) ±5%
    Voltage Tolerance, Including Noise (12V) ±10%
    Power Management
    Startup Current (12V typical, amps) 2.0
    Operating Average (W) 4.3
    Idle Average (W) 3.0
    Standby/Sleep Mode (typical, W) 0.3
    Environmental Requirements
    Temperature Operating Temperature: 32 to 158°F / 0 to 70°C
    Non-Operating Temperature: -40 to 158°F / -40 to 70°C
    Shock 68°/86°F per hour max 20°/30°C per hour max
    Operating Shock Operating: 2ms (max, Gs) 80
    Non-Operating: 2ms (max, Gs) 300
    Acoustics Idle (typical, bels): 1.9
    Operational (typical, bels): 2.1
    Reliability
    Load/Unload Cycles 600,000
    Nonrecoverable Read Errors per Bits Read 1 per 10E14 max
    Power-On Hours 8760
    Mean Time Between Failures 1M
    Physical Specifications
    Dimensions (HxWxD) 1.028 x 4.0 x 5.787" / 26.11 x 101.6 x 146.99 mm
    Weight 1.345 lb / 610 g
    Packaging Info
    Box Dimensions (LxWxH) 7.5 x 7.2 x 4.3"
The user manual for the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Synology users keep a unique electronic library for Synology network attached storage drivess, where you can use our link to download the user manual for the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS.

The user manual lists all of the functions of the Synology 24TB (12 x 2TB) DiskStation DS2413 Twelve-Bay NAS, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Synology service.
