User manual Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY

Operating instructions and pdf manual for use - Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY User manual, User manual Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY, Synology, Diskstation, DS415play, 4-Bay, NAS, Server, DS41


User manual for Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY
  • Manufacturer: Synology
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - NAS Enclosures
  • Safety instructions
  • Startup and operation of the nas enclosures
  • Tips for setting up your Synology
  • Settings and expert assistance
  • Contact Synology service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
We recommend checking out our discussion threads on the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY, which address similar problems with connecting and setting up NAS Enclosures Synology.



User manual for the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY

The user manual for the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

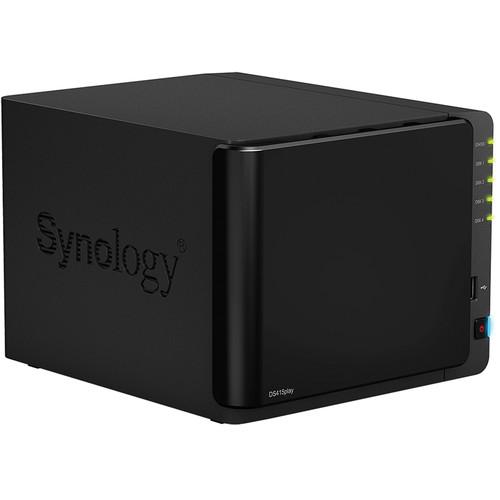

Stream and share your entire multimedia library with the Diskstation DS415play 4-Bay NAS Server from Synology. This NAS storage solution comes equipped with four drive bays each capable of holding 2.5" or 3.5" SATA II/III hard drives or solid state drives. Inside the DS415play you will find a 1.6 GHz dual-core processor and 1GB or DDR3 RAM. You can also take advantage of three USB 2.0 and two USB 3.0 ports to connect additional storage and expansion devices. Network connectivity is provided via the 1 Gigabit Ethernet port also located on the back of the server.

As with most NAS servers this Synology NAS is capable of storing and streaming content. What sets this apart from comparable devices is its ability to stream and manage multimedia content to a wide variety of peripherals including DLNA certified TVs, smartphones, tablets, computers, game systems, and more; and with 1080p transcoding on the fly your content is rendered in Full HD.

Accessing content on the go is an essential aspect of any NAS storage device. With QuickConnect from Synology you can access your files via a relay service even if your Synology NAS is hidden in a local network. Content can also be accessed from a variety of iOS, Android, and Windows Phone based mobile devices through apps including DS photo+, DS audio, DS video, Photo Station, Audio Station, and Video Station effectively placing Terabytes of content in the palm of your hand.
If you own a Synology nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY:
Specifications
    CPU
    CPU Model Intel Atom
    CPU Frequency Dual Core 1.6 GHz
    Floating Point Yes
    Hardware Transcoding Engine H.264 (AVC), MPEG-4 Part 2, MPEG-2, VC-1
    Memory
    System Memory 1 GB DDR3
    Storage
    Drive Bays 4
    Compatible Drive Types 3.5" SATA(III) / SATA(II) HDD
    2.5" SATA(III) / SATA(II) HDD
    2.5" SATA(III) / SATA(II) SSD
    Max Internal Capacity 24 TB (6 TB HDD X 4) (Capacity may vary by RAID types)
    Hot Swappable Drives Yes
    External Ports
    LAN Ports 1 x Gigabit LAN port
    USB 2.0 Port 3
    USB 3.0 Port 2
    File System
    Internal Drives EXT4
    External Drives EXT4, EXT3, FAT, NTFS, HFS+
    Other Specifications
    Wake on LAN/WAN Yes
    System Fan 2 - 92 x 92 mm pieces
    Wireless Support (Dongle) Yes
    Noise Level 20.0 dB(A)
    Power Recovery Yes
    Scheduled Power On/Off Yes
    Power Supply 90 W
    AC Input Voltage 100 to 240 VAC
    Power Frequency 50/60 HZ, single phase
    Power Consumption 41.95 W (access)
    17.30 W (HDD hibernation)
    Temperature & Humidity
    Operating Temperature 40 to 95°F / 5 to 35°C
    Non-Operating Temperature -5 to 140°F / -20 to 60°C
    Relative Humidity 5 to 95% RH
    Maximum Operating Altitude 6,500 ft / 1,981 m
    Certification and Compliance
    Certifications FCC Class B
    CE Class B
    BSMI Class B
    DSM Specifications
    Max File System Size 16 TB
    Max Internal Volume Number 256
    Max iSCSI Target Number 10
    Max iSCSI LUN Number 10
    Supported RAID Type Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
    RAID Migration Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6
    Volume Expansion with Larger HDDs Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    Volume Expansion by Adding a HDD Synology Hybrid RAID
    RAID 5
    JBOD
    Global Hot Spare Supported RAID Type Synology Hybrid RAID
    RAID 1
    RAID 5
    SSD TRIM Yes
    Max User Account 2,048
    Max Groups 256
    Max Shared Folder 256
    Max Shared Folder Sync Tasks 4
    Max Concurrent CIFS/AFP/FTP Connections 256
    Windows Access Control List (ACL) Yes
    Syslog Events per Second 400
    Dimensions & Weight
    Dimensions 6.5 x 8.0 x 9.2" / 165.0 x 203.0 x 233.2 mm
    Weight 4.48 lb / 2.03 kg
    Packaging Info
    Package Weight 7.45 lb
    Box Dimensions (LxWxH) 11.4 x 10.4 x 9.6"
    The user manual for the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY can be downloaded in .pdf format if it did not come with your new nas enclosures, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Synology users keep a unique electronic library for Synology nas enclosuress, where you can use our link to download the user manual for the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY.

    The user manual lists all of the functions of the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY, all the basic and advanced features and tells you how to use the nas enclosures. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Synology service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Synology Diskstation DS415play 4-Bay NAS Server DS415PLAY. User manuals are also available on the Synology website under Computers & Solutions - Drives & Storage - NAS Enclosures.
